category:
Low Water Cutoffs
manufacturer:
McDonnell & Miller
mpn:
172815
subcategory:
Steam
type:
Line Voltage Low Water Cutoffs
weight:
42.0

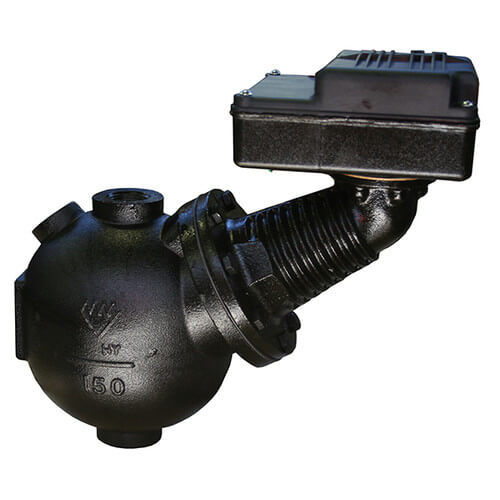

Product Overview
For residential, commercial and industrial low or high pressure boiler applications
Specifications- For boilers of any steaming capacity
- Monel bellows provides corrosion resistance
- Float chamber with integral water column provided
- Snap action for high temperature service
- 1 Single pole, single throw switch for pump control
- 1 Single pole, double throw switch for low water cut-off and alarm actuation
- Manual reset
Additional Information
ApplicationSteam Boilers
Reset TypeManual
Max Pressure150 psi
SwitchSPDTSPST
TypeFloat-StyleCombo
Featuresw/ Water ColumnAlternate Tappings
Electrical Ratings (AFL)7.4 A @ 120 VAC3.7 A @ 240 VAC
Pilot Duty Rating345 VA
Electrical Ratings (ALR)22.2 A @ 240 VAC44.4 A @ 120 VAC
Width (Inches)6-1/4"
Length17"
Depth (Inches)13-9/16"
Connection TypeThreaded
Thread Size1-1/4"
