McDonnell & Miller

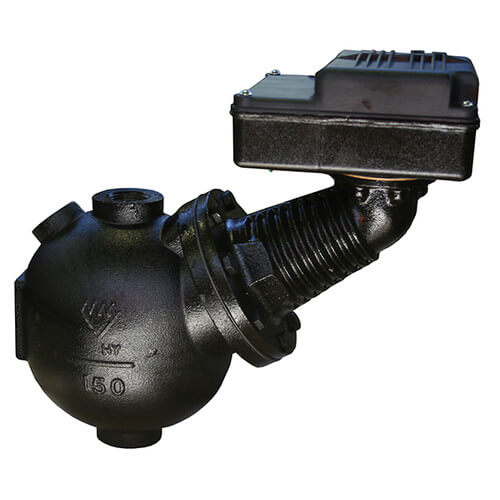

McDonnell 172817 Hi Pressure Level Control

McDonnell 172817 Hi Pressure Level Control

Dropship

SKU kpi116-172817

MPN : 172817

$2,089.45 USD
$2,089.45 USD
Sale Sold out
Shipping calculated at checkout.
No offers currently available
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products

McDonnell & Miller - 172817 For residential, commercial and industrial low or high pressure boiler applications

Specifications
  • For boilers of any steaming capacity
  • Monel bellows provides corrosion resistance
  • Float chamber with integral water column provided
  • Snap action for high temperature service
  • 1 Single pole, single throw switch for pump control
  • 1 Single pole, double throw switch for low water cut-off and alarm actuation
  • Manual reset

Additional Information

ApplicationSteam Boilers
Reset TypeManual
Max Pressure150 psi
SwitchSPSTSPDT
TypeFloat-StyleCombo
FeaturesAlternate Tappingsw/ Water Column
Electrical Ratings (AFL)3.7 A @ 240 VAC7.4 A @ 120 VAC
Electrical Ratings (ALR)44.4 A @ 120 VAC22.2 A @ 240 VAC
Pilot Duty Rating345 VA
Length17"
Depth (Inches)13-3/8"
Width (Inches)6-1/4"
Thread Size1"
Connection TypeThreaded
CategoryLow Water Cutoffs
ManufacturerMcDonnell & Miller
Mpn172817
SubcategorySteam
TypeLine Voltage Low Water Cutoffs
Weight42.0
