category:
Instruments
country_of_origin:
United States
height:
3.10
length:
10.35
manufacturer:
MILWAUKEE® TOOL
minimum_order_qty:
1 EA
mpn:
2206-20NST
quantity_size:
1 EA
subcategory:
Fork Meters
upc:
45242341184
weight:
1.21
width:
5.70
Product Description

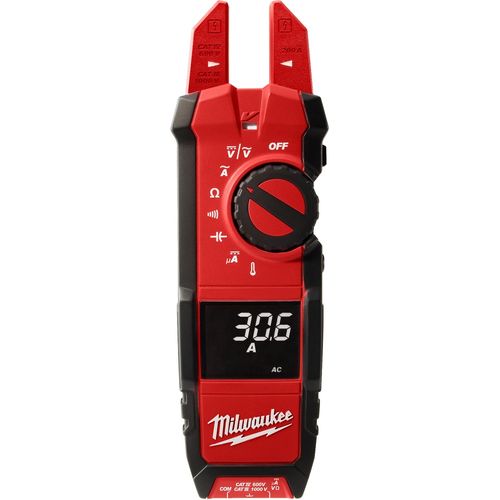

Milwaukee Tool 2206-20NST The Milwaukee Fork Meter for HVAC/R (NIST) is a heavy duty True-RMS electrical tester for professional residential, commercial and industrial applications. The 2206-20 is five tools in one providing current measurement, temperature measurement, voltage measurement, voltage detection and task lighting. In addition, the new tool provides a wide 0.63” fork opening, high 200amp current range and a high contrast white-on-black display. A NIST Certificate of Calibration with Data is also included, needed by many organizations as proof of calibration with the date when NIST Calibration was performed. Covered by Milwaukee 5-Year Warranty.
- Measures up to 200 amps, Wide 0.63” jaw opening
- Wide Voltage range to 1000 volts AC /DC
- True-RMS for accurate measurement in all applications
- Built-In Voltage Detector and LED Work Light
- Thermocouple (dual banana) input for contact temperature measurement
- 600 uA DC for Flame Rectification
- High Contrast, White on Black Display with Backlight for easy reading
- Rugged over-molding increases durability and user grip
