MRCOOL

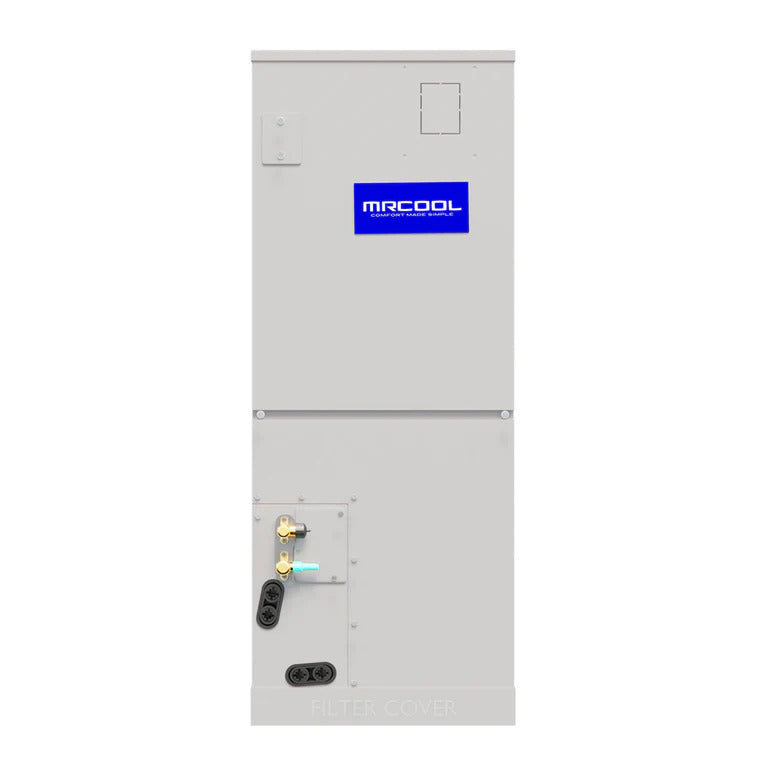

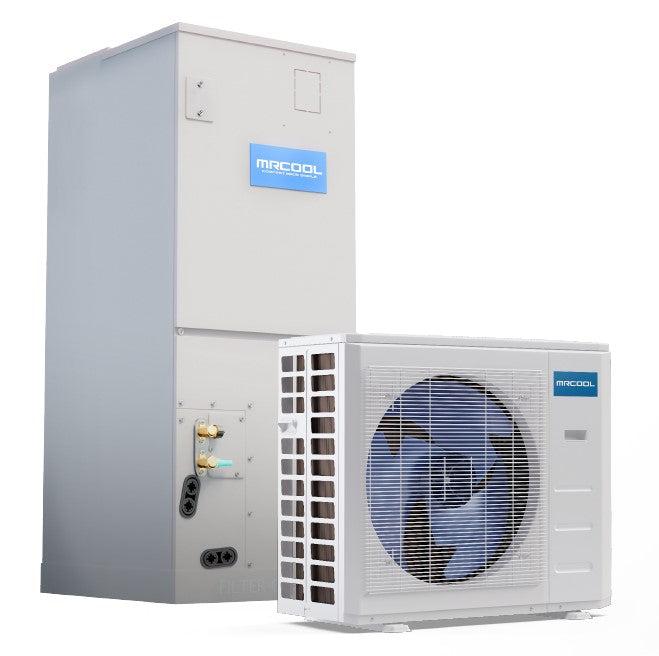

MRCOOL CENTRAL-24-HP-230-25 Ducted Air Handler and Condenser (CENTRAL-24-HP-230-25)

MRCOOL CENTRAL-24-HP-230-25 Ducted Air Handler and Condenser (CENTRAL-24-HP-230-25)

Dropship

Get it by Sat, Jan 31 - Thu, Feb 05

SKU SKU:kpi035-CENTRAL-24-HP-230-25

Regular price $3,215.80 USD
Regular price Sale price $3,215.80 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Combo Sets
manufacturer: MRCOOL
mpn: CENTRAL-24-HP-230-25
product_color: Gray
series: Central Ducted System
subcategory: Central Ducted AC Unit

Product Description

Product Overview

MRCOOL 24k BTU 19.2 SEER Ducted Air Handler and Condenser - 25 foot MRCOOL Pre-Charged Line Set

Nothing feels better than ultimate comfort all the time, so why not invest in the affordable MRCOOL 24k BTU up to 19.2 SEER Central Ducted DC Inverter Heat Pump System? With this system, you all enjoy a simpler installation and absolute climate control throughout around 1,000 square feet of your home. Installing this system is easy, because it comes with a 25 foot pre-charged MRCOOL line set, which essentially just needs to be plugged into the air handler and the condenser. Time is money, and you all be saving both because of the line set in this system. This air handler is multi-position, meaning it can support upflow, downflow, horizontal left and horizontal right airflow needs. The variable condenser in this system is so efficient, you all find yourself saving money in no time. Identify error codes on the thermostat or on the handler as panel. In case something goes wrong, you all be completely covered by a 10 year parts and service warranty. For comfort exactly how you want it, get this MRCOOL 24k BTU 19.2 SEER Central Ducted DC Inverter Heat Pump System.

Features:

  • Includes features such as timer mode, auto cool mode, fan only mode, and more

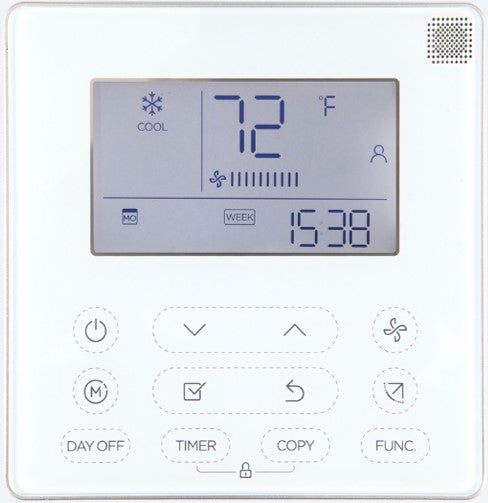

  • Wired thermostat included (.78 in x 4.72 in x 4.72in)
  • Multi position installation
  • Optional heating kit avaible
  • R-410A environmentally friendly refrigerant

Additional Information

Series_Extcen_ahu
Condenser_Depth16.14 in
Condenser_Height31.89 in
Condenser_Width37.24 in
Condenser_Weight125.22 lbs
Air_Handler_Depth17.52 in
Air_Handler_Height45 in
Air_Handler_Width21.02 in
Air_Handler_Weight106.48 lbs
Seer19.2
Eer12.5
Hspfhspf4/hspf5: 10/8.5
Cfm752.94/682.35/611.76
Cooling_Capacity24000
Heating_Capacity24000
Voltage208/230 V
Phase1
Cycle60 Hz
Max_Fuse_Breaker35
Min_Circuit_Ampacity22
ColorGray
Rated_Load0.6
Zone_Capacity1
Refrigerant_TypeR410A
Refrigerant_Volume81.13 oz
Decibel_Rating43.0/41.5/38.0
Decibel_Rating_Low38
Decibel_Rating_High43
Air_Flow_DirectionMulti-position
Min_Ambient_Cool-13F~122F
Min_Ambient_Heat-13~75.2F
Lineset_Includedyes
Line_Set_Length25ft
Liquid_Line_Size3/8in
Suction_Line_Size5/8 in
Compressor_Motor_TypeTwin-Rotary
Condenser_Fan_Motor_Rpm850/750/700
Filter_TypeReplaceable
Auxiliary_Heater_Includedno
Auxiliary_Heater_Availableyes
Auxiliary_Heater_Sizes5kw, 8kw,10kw, 15kw
Adjustable_Thermostatyes
Fan_Only_Optionyes
Sleep_Modeyes
Auto_Coolyes
App_Compatibilityno
Remote_Control_Includedyes
Ahri_Certifiedyes
Base_Warranty10 years parts and labor
