MRCOOL Central Ducted 30K BTU, 18.5 SEER, Ducted Air Handler and Condenser

MRCOOL Central Ducted 30K BTU, 18.5 SEER, Ducted Air Handler and Condenser

Dropship

Get it by Tue, Jan 27 - Sun, Feb 01

SKU SKU:kpi035-CENTRAL-30-HP-230-25

Regular price $3,585.40 USD
Regular price Sale price $3,585.40 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Combo Sets
manufacturer: MRCOOL
mpn: CENTRAL-30-HP-230-25
series: Central Ducted Series
subcategory: Central Ducted AC Unit
weight: 313

Product Description

Product Overview

The 2.5 Ton 18.5 SEER MrCool Central Ducted Heat Pump Split System is a well-constructed, durable unit made of painted galvanized steel. This will ensure you can rely on this system for years to come. The air handler also features removable filters so you can count on clean, healthy air for you and your family to breathe. In addition, maintaining this heating and cooling system is easier with the self-diagnostic panel located on the air handler. This will allow for identification of error codes, or error codes can also be found on the thermostat.

Don't worry about costly installation either. The 2.5 Ton 18.5 SEER MrCool Central Ducted Heat Pump Split System includes a 25-foot Quick Connect line set. The line set comes pre-charged with the refrigerant R-410A, a type of refrigerant that is eco-friendly and allows for installation without vacuuming. That combined with the easy-to-use connectors ensures a professional installation at a fraction of the cost. There is also the option to have this system installed in an upflow, downflow, horizontal left, or horizontal right configuration, customizing the installation to fit any preexisting ductwork without time-consuming reconfiguration and manipulation. This central split system is also compatible with a heat kit that can be easily installed as well, if desired.

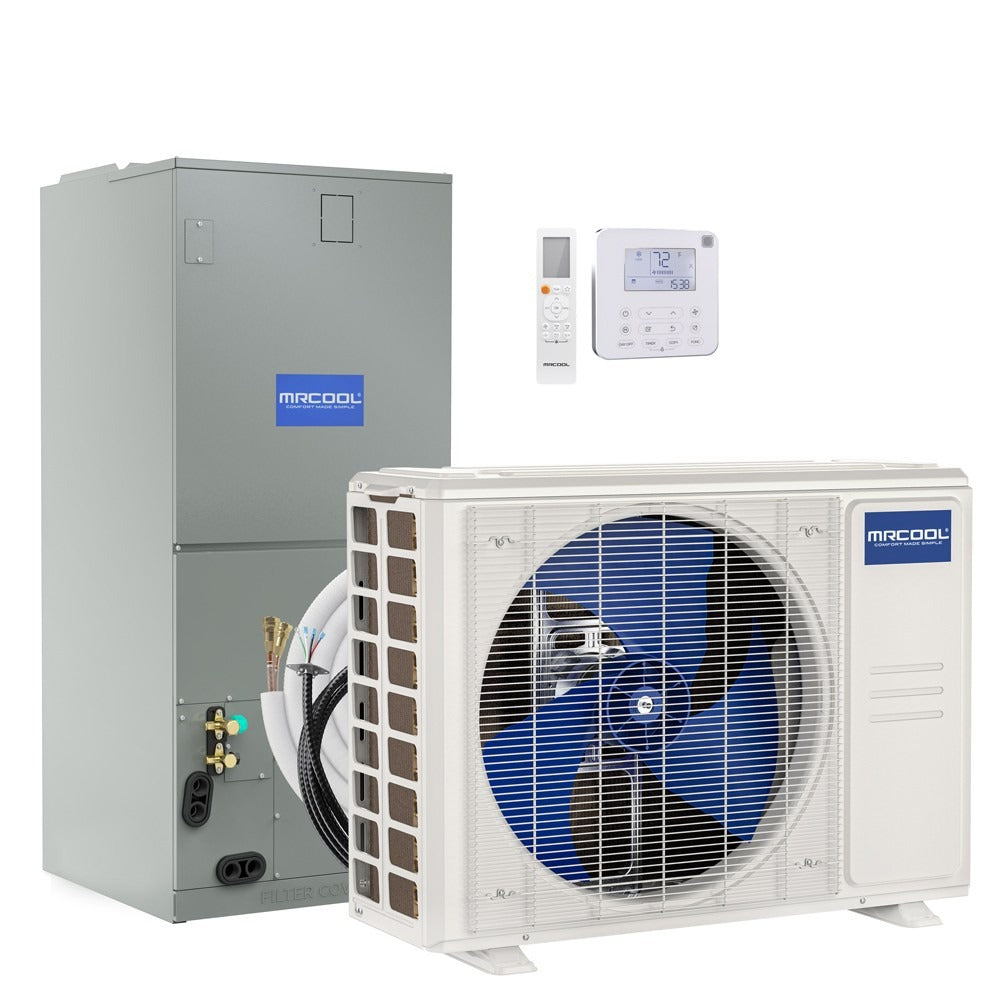

This Bundle Includes :

2.5 Ton 18.5 SEER MrCool Central Ducted Heat Pump Condenser 2.5 Ton MrCool Central Ducted Air Handler - Multiposition

Additional Information

ModelCENTRAL-30-HP-C-230-25
AHRI Number208960637
UPC840255520041
Avg Coverage Area1,250 - 1,500 Sq Ft
CompressorInverter
Cooling Capacity2.5 Ton
Electrical Phase1-Phase
Heat Pump Efficiency (HSPF)9.5
Line Set Connection TypeQuick Connect, Flared, or Sweat
Liquid Line Size3/8 inch
Max Overcurrent Protection40 amps
Primary Heating Capacity25,001 - 30,000 BTU
Product Height (in)31.89
Product Length (in)16.14
Product Width (in)37.24
RefrigerantR-410a
Cooling Efficiency18 SEER
SeriesCentral Ducted
Suction Line Size5/8 inch
System Application TypeCentral Split Systems
Voltage240
Weight (lbs)156.09

Additional Information

ModelCENTRAL-30-HP-MUAH-230-25
AHRI Number208960637
UPC840255520102
Air Flow DirectionDownflow, Horizontal, Upflow
ConfigurationFloor Mounted
Blower MotorVariable Speed
Cooling Capacity2.5 Ton
Electrical Phase1-Phase
Heat Strip CompatibilityUp to 15 kW
Line Set Connection TypeQuick Connect, Flared, or Sweat
Liquid Line Size3/8 inch
Max Overcurrent Protection15 amps
Product Height (in)49.02
Product Length (in)21.02
Product Width (in)21.02
RefrigerantR-410a
SeriesCentral Ducted
Suction Line Size5/8 inch
System Application TypeCentral Split Systems
Voltage240
Weight (lbs)157.41
