category:
Coils
depth:
32
height:
25.75
manufacturer:
MRCOOL
mpn:
GCHPD036TGTANXR
product_color:
Gray
series:
GeoCool Heat Pump Downflow
subcategory:
Geothermal Heat Pump Downflow
volts:
230V/1ph/60hz
weight:
350
width:
56
Product Description

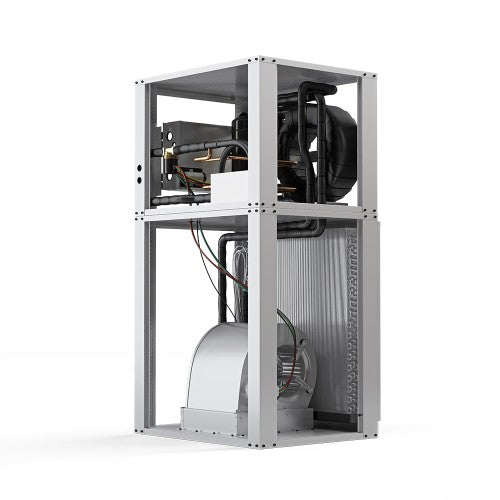

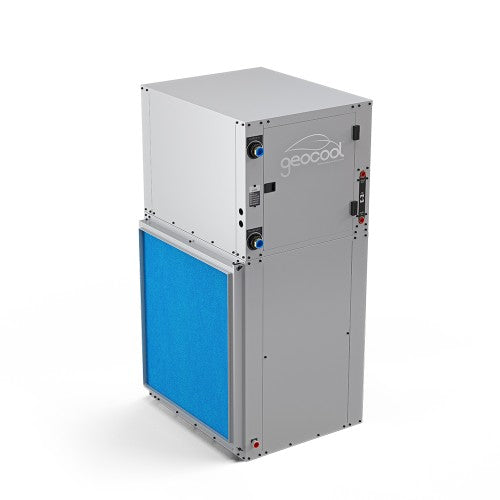

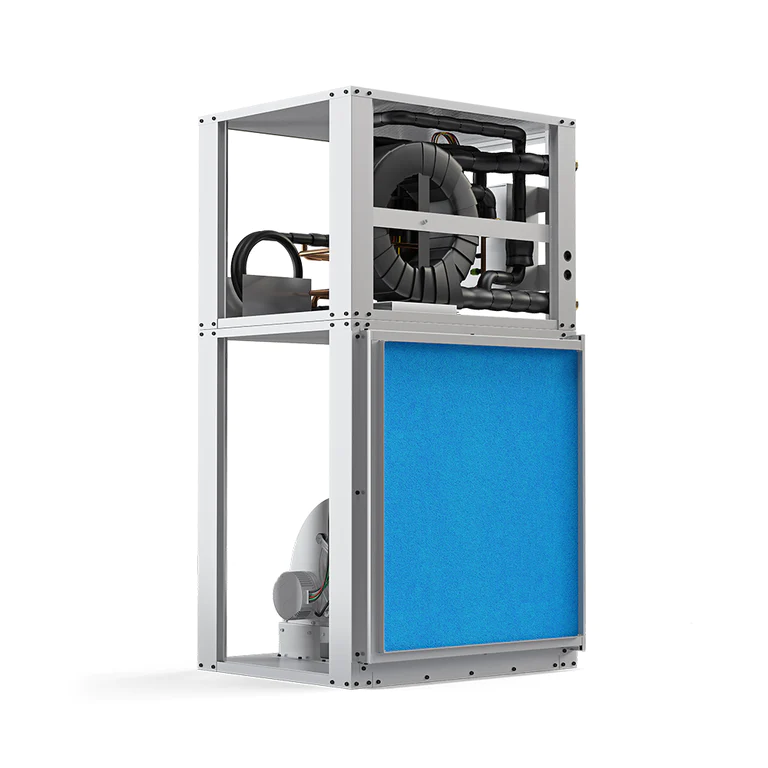

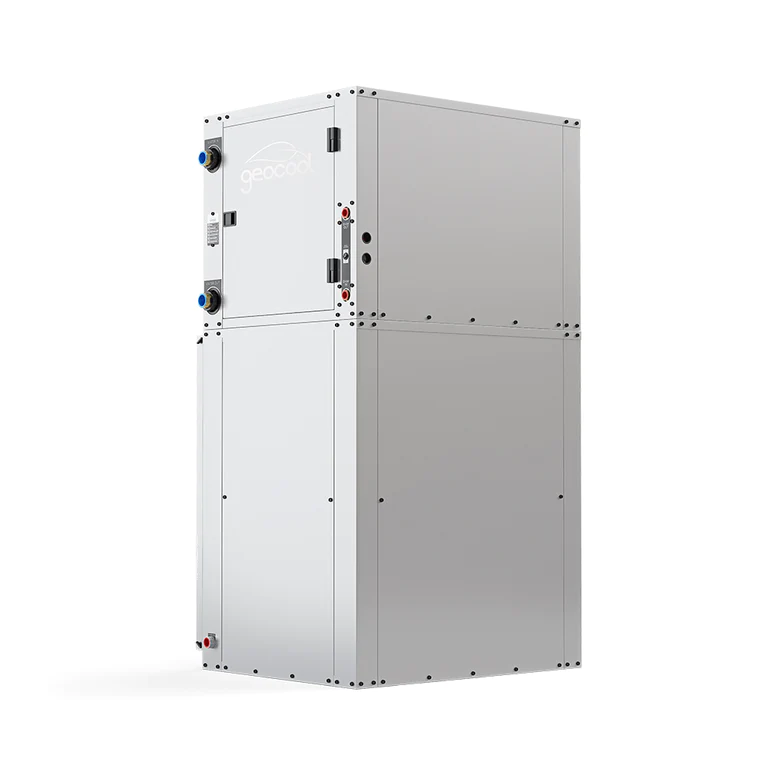

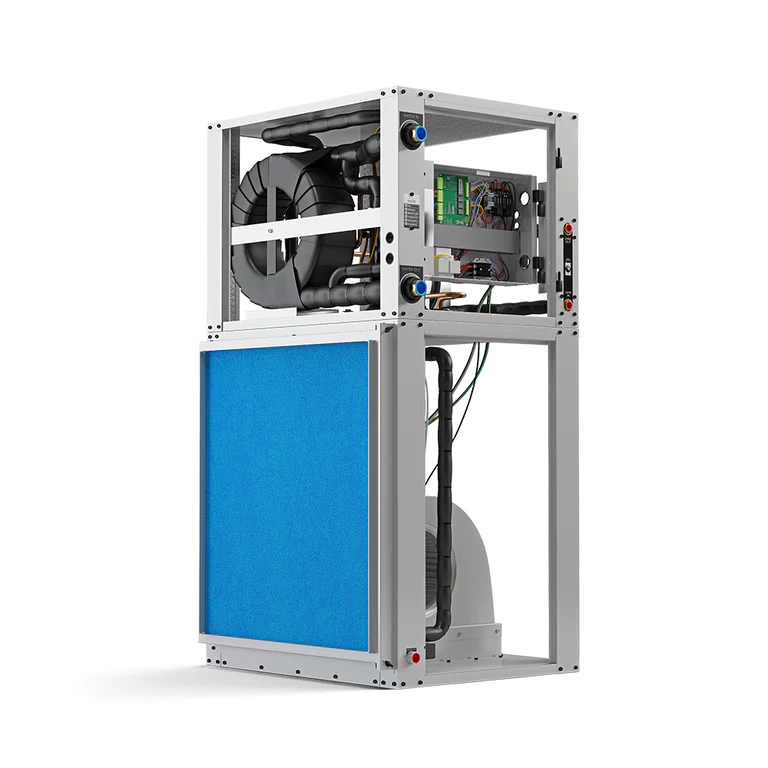

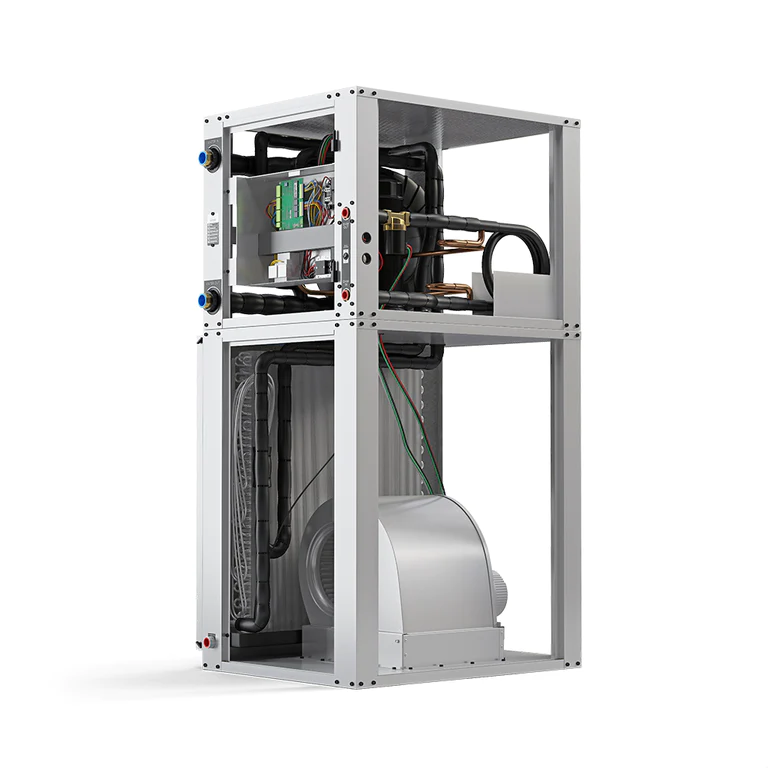

MRCOOL - GCHPD036TGTANXR 36K BTU Downflow Two-Stage 230V 1-Phase 60Hz CuNi Coil Right Return
Features:
- Qualifies for federal tax credit, and other incentives
- Highest energy efficiency in its class
- Safety high and low pressure switches
- Quiet operation
- Full featured sinusoidal eon motor control technology
- Insulated sloped stainless steel drain pan
- Advanced unit control board with diagnostic LEDs
- Double O-ring water connections
- Easy service access
- Optional domestic water pre-heating
- Made in the USA
Additional Information
Series_Extgchp_d
Unit_TypeGeothermal Heat Pump
Net_Depth32
Net_Height56
Net_Width25.75
Net_Weight350
Freight_Class70
ConfigurationRight Return Downflow
EerGround Water (FULL) 27.20 / Ground Loop (FULL)17.86
Eer_Part_LoadGround Water (PART) 35.70 / Ground Loop (PART) 25.84
Cop_47Ground Water (FULL) 5.30 / Ground Loop 4.40 (FULL)
Cop_47_Part_LoadGround Water (PART) 5.60 / Ground Loop 4.80 (PART)
HspfGround Water Fluid Flow Rate | COOLING: (PART) 8 - 9 (FULL) / HEATING: (PART) 8 - 9 (FULL)
AfueGround Loop Fluid Flow Rate | COOLING: (PART) 8 - 9 (FULL) / HEATING: (PART) 8 - 9 (FULL)
CfmCOOLING (PART) 1150 - 1350 (FULL) / HEATING (PART) 1100 - 1100 (FULL)
Tonnage3
Cooling_CapacityGround Water (PART) 33000 - 43000 (FULL) / Ground Loop (PART) 30300 - 39000 (FULL)
Heating_CapacityGround Water (PART) 27500 - 38000 (FULL) / Ground Loop (PART) 24000 - 26900 (FULL)
Voltage230
Phase1
Cycle60
StageTwo-Stage
Max_Fuse_Breaker42.1(W/O Desupe
Min_Circuit_Ampacity26.4(
ColorGray
Color_FamilyGray
Max_Coverage_Area1500
Refrigerant_TypeR-410A
Compressor_Motor_TypeScroll
Blower_Motor_TypeAxial Flux (No Shaft) BLA
Blower_Motor_Hp 3/4
Filter_TypeReplaceable
Ul_ReconizedNo
Ul_ListedNo
Etl_ListedYes
Etl_CertifiedNo
Leed_CertifiedNo
Ashrae_CompliantNo
Energy_Star_CompliantYes
Energy_Star_CertifiedYes
Ahri_CertifiedYes
Registered_Warranty10 year registered parts limited warranty 10 year compressor warranty
Base_Warranty5 year limited parts warranty
Has_BatteriesNo
Contains_ElectronicsYes
Contains_ChemicalsYes
Contains_AerosolYes
Contains_Compressed_GasYes
Proposition_65_WarningYes
Restricted_StatesNo
