category:
Coils
depth:
32
height:
25.75
manufacturer:
MRCOOL
mpn:
GCHPV048TGTANXR
product_color:
Gray
series:
GeoCool Heat Pump Upflow
subcategory:
Geothermal Heat Pump Vertical
volts:
230V/1ph/60hz
weight:
330
width:
48
Product Description

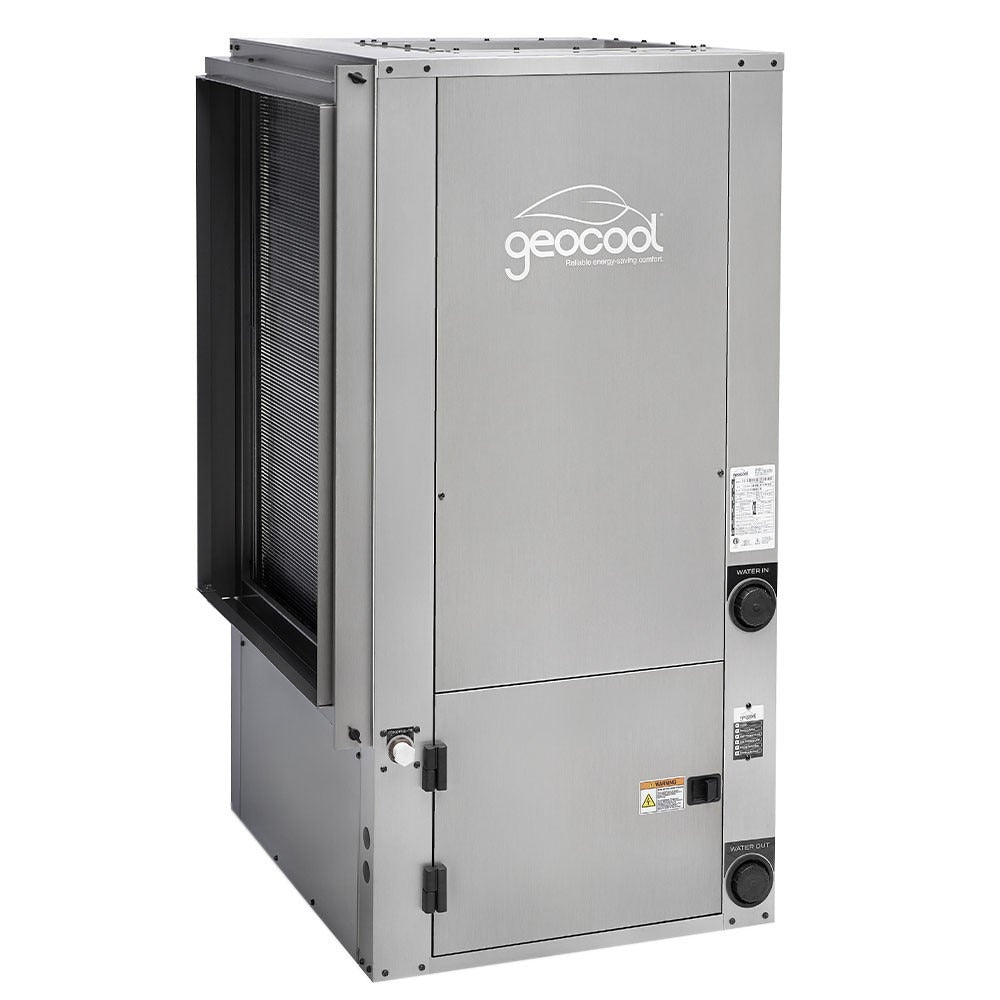

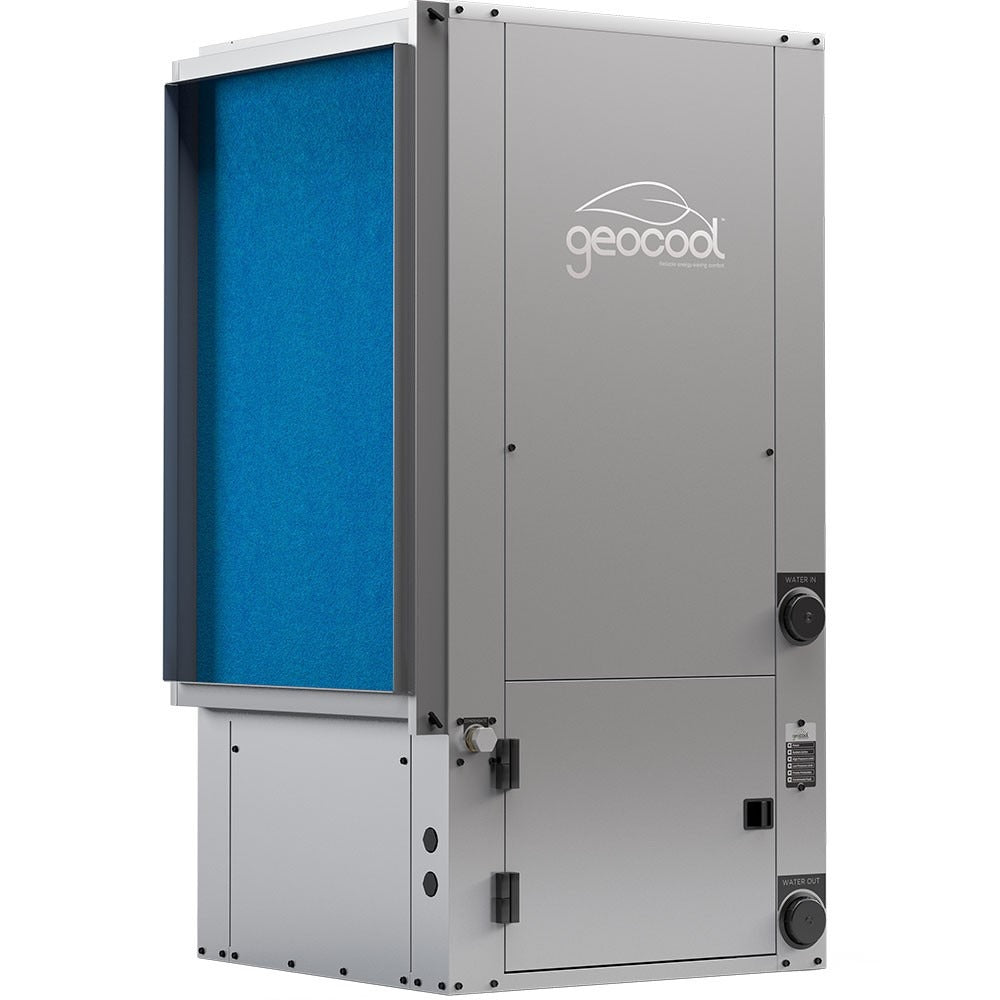

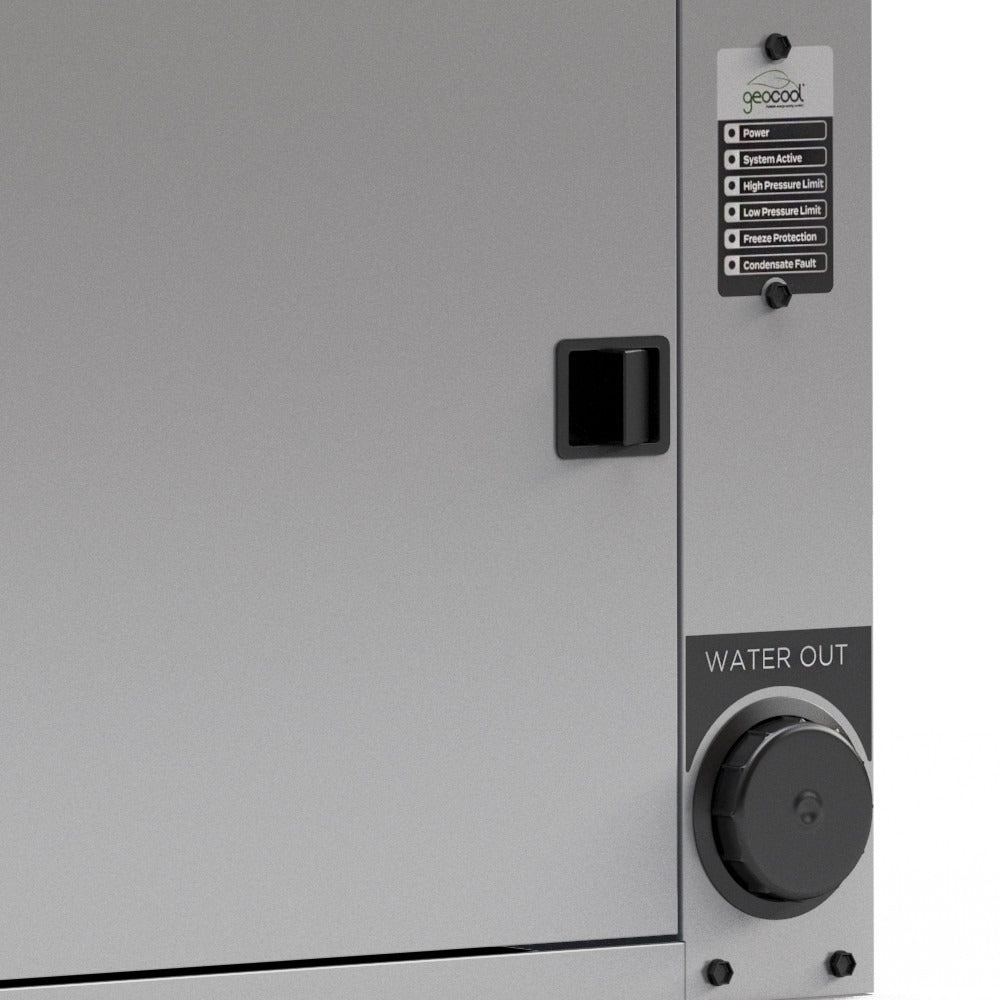

MRCOOL - GCHPV048TGTANXR 48K BTU Vertical Two-Stage 230V 1-Phase 60Hz CuNi Coil Right Return
Features:
- Qualifies for federal tax credit, and other incentives
- Highest energy efficiency in its class
- Safety high and low pressure switches
- Quiet operation
- Full featured sinusoidal eon motor control technology
- Insulated sloped stainless steel drain pan

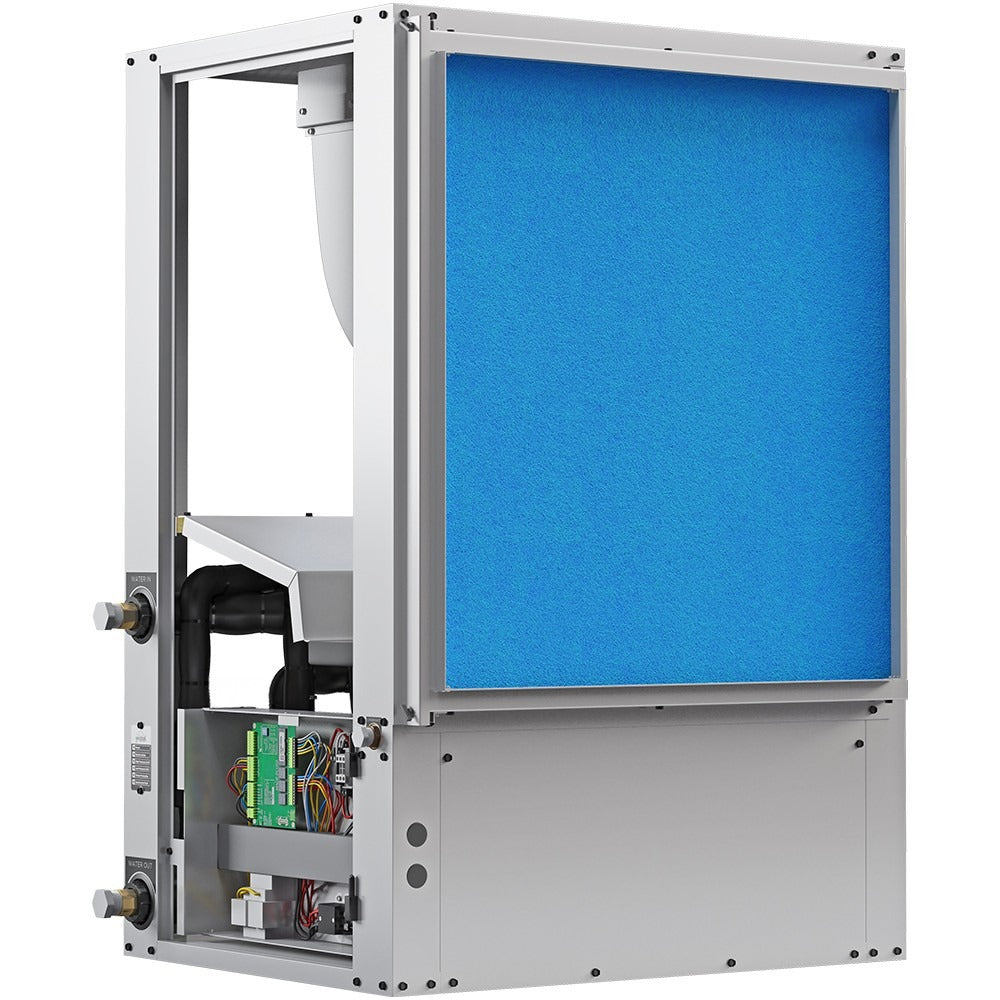

- Advanced unit control board with diagnostic LEDs

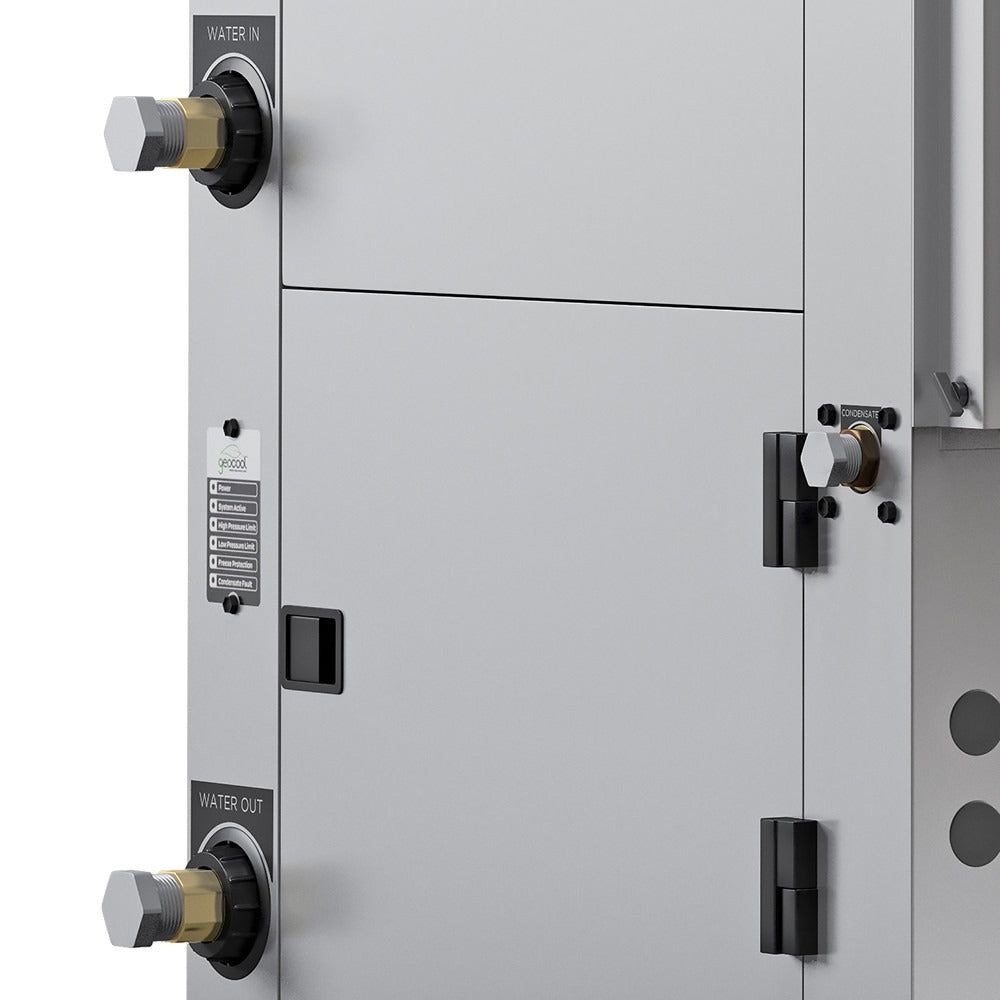

- Double O-ring water connections
- Easy service access
- Optional domestic water pre-heating
- Made in the USA
Additional Information
Series_Extgchp_v
Unit_TypeGeothermal Heat Pump
Net_Depth32
Net_Height48
Net_Width25.75
Net_Weight330
Freight_Class85
ConfigurationRight Return Upflow
EerGround Water (FULL) 26.00 / Ground Loop (FULL) 16.65
Eer_Part_LoadGround Water (PART) 33.00 / Ground Loop (PART) 24.06
Cop_47Ground Water (FULL) 4.90 / Ground Loop 4.00 (FULL)
Cop_47_Part_LoadGround Water (PART) 5.00 / Ground Loop 4.50 (PART)
HspfGround Water Fluid Flow Rate | COOLING: (PART) 11 - 12 (FULL) / HEATING: (PART) 11 - 12 (FULL)
AfueGround Loop Fluid Flow Rate | COOLING: (PART) 11 - 12 (FULL) / HEATING: (PART) 11 - 12 (FULL)
CfmCOOLING (PART) 1550 - 1850 (FULL) / HEATING (PART) 1500 - 1750 (FULL)
Tonnage4
Cooling_CapacityGround Water (PART) 41000 - 56000 (FULL) / Ground Loop (PART) 38000 - 50000 (FULL)
Heating_CapacityGround Water (PART) 34500 - 50000 (FULL) / Ground Loop (PART) 38000 - 50000 (FULL)
Voltage230
Phase1
Cycle60
StageTwo-Stage
Max_Fuse_Breaker57.9(W/O Desupe
Min_Circuit_Ampacity35.2(
ColorGray
Color_FamilyGray
Max_Coverage_Area2000
Refrigerant_TypeR-410A
Compressor_Motor_TypeScroll
Blower_Motor_TypeAxial Flux (No Shaft) BLA
Blower_Motor_Hp 3/4
Filter_TypeReplaceable
Filter_Size32x30
Ul_ReconizedNo
Ul_ListedNo
Etl_ListedYes
Etl_CertifiedNo
Leed_CertifiedNo
Ashrae_CompliantNo
Energy_Star_CompliantYes
Energy_Star_CertifiedYes
Ahri_CertifiedYes
Registered_Warranty10 year registered parts limited warranty & 10 year compressor warranty
Base_Warranty5 year limited parts warranty
Has_BatteriesNo
Contains_ElectronicsYes
Contains_ChemicalsYes
Contains_AerosolYes
Contains_Compressed_GasYes
Proposition_65_WarningYes
Restricted_StatesNo
