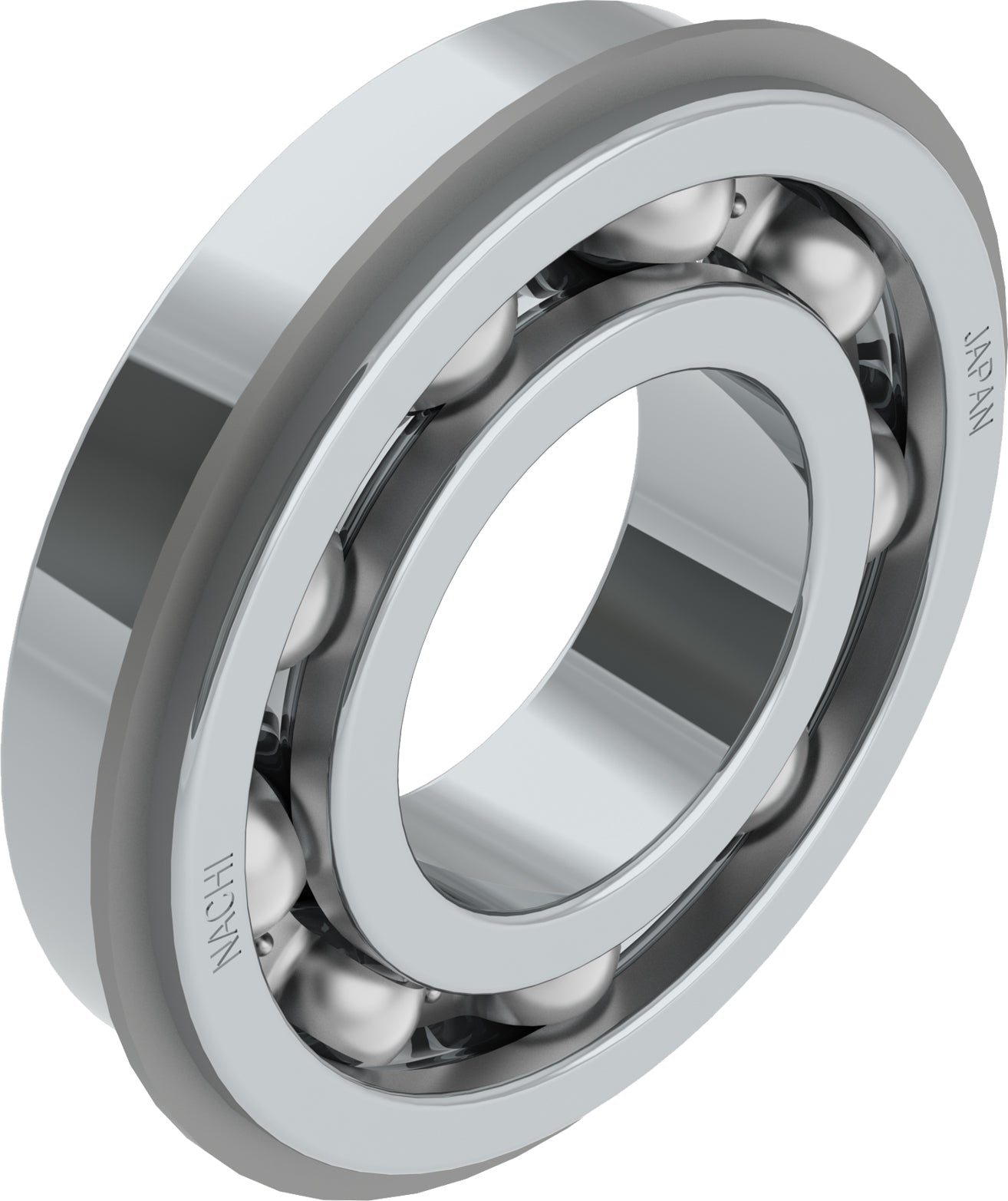

Nachi America - 6022NR Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Bore Type Cylindrical Bore
Rolling Element Material Steel
Snap Ring Yes
Seals or Shields No
Limiting Speed - Grease 3800 rpm
Outer Ring Material Steel
Temperature Range [Max] 248 °F
Static Load Rating [Max] 73000 N
Limiting Speed - Oil 4500 rpm
Dynamic Load Rating 84500 N
Width 28 mm
Bearing Type Deep Groove
Ball Material Steel
ISO Precision Class P0
Inner Ring Material Steel
Cage Material Steel
EAN or UPC 4991893660067
CategoryBall Bearings
Country of originJapan
Inner diameter110 mm
ManufactureNachi America
Mpn6022NR
Outer diameter170 mm
SubcategoryDeep Groove Ball Bearing
Upc4991893660067
Weight4.34
Width28 mm
