category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
130 mm
manufacture:
Nachi America
mpn:
6026NRC3
outer_diameter:
200 mm
subcategory:
Deep Groove Ball Bearing
weight:
8.65
width:
33 mm
Product Description

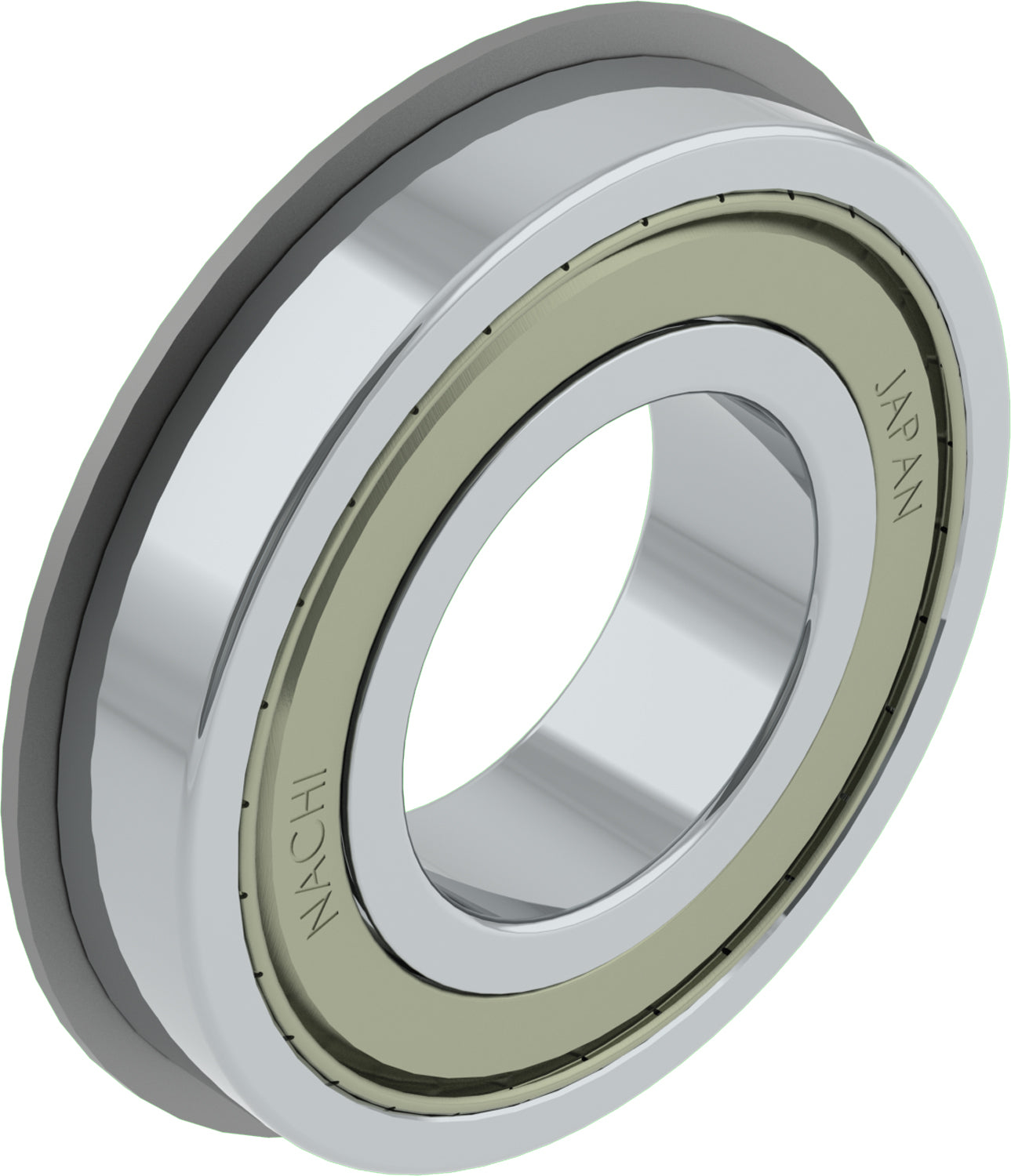

Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Bore Type Cylindrical Bore
Snap Ring Yes
Seals or Shields No
Static Load Rating [Max] 101000 N
Outer Ring Material Steel
Cage Material Steel
Dynamic Load Rating 106000 N
Bearing Type Deep Groove
Temperature Range [Max] 248 °F
Limiting Speed - Oil 3800 rpm
Limiting Speed - Grease 3200 rpm
Ball Material Steel
Inner Ring Material Steel
ISO Precision Class P0
Rolling Element Material Steel
Width 33 mm
