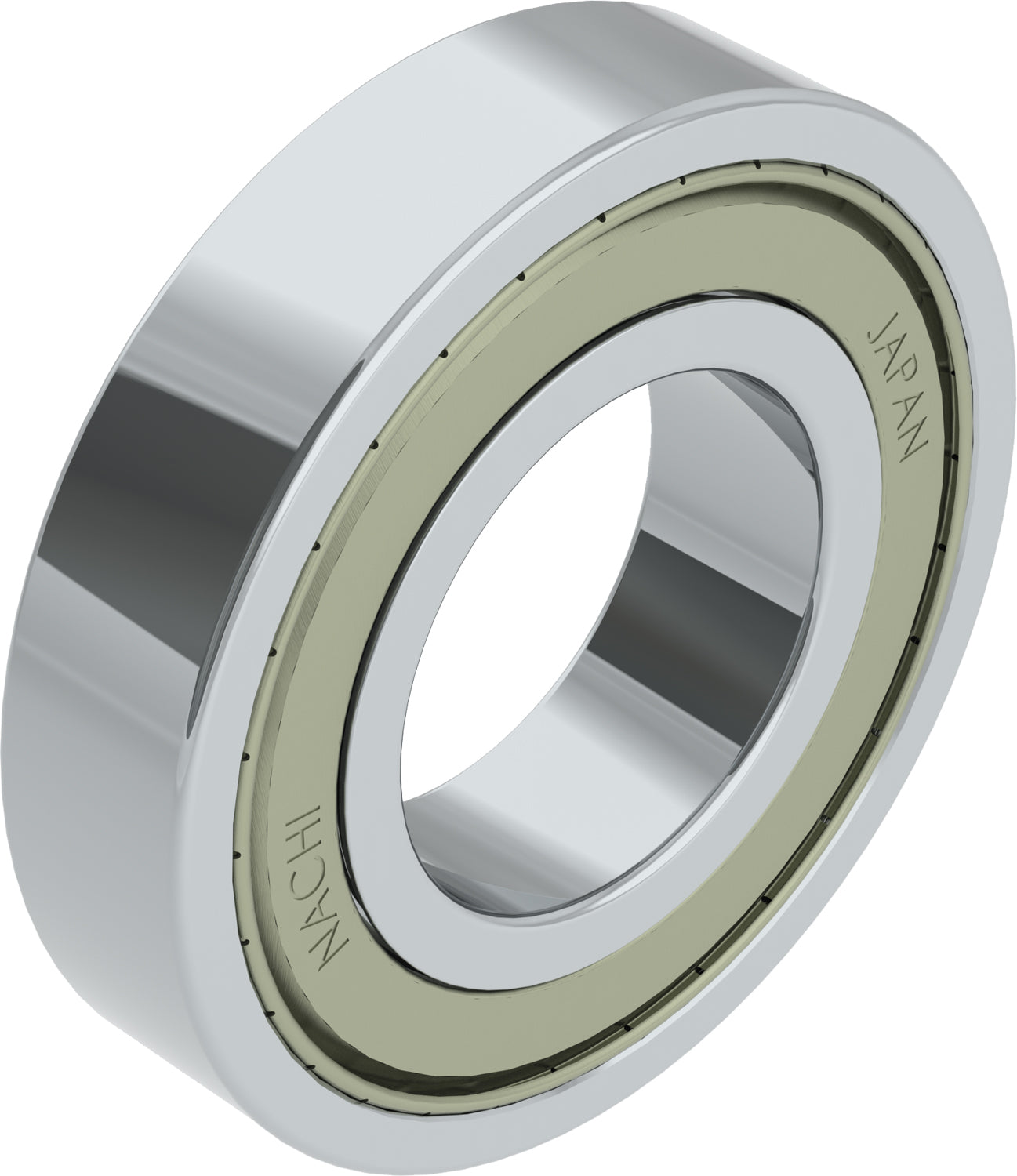

Nachi America - 609ZZMC3 Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Grease Fill Multemp SRL
Dynamic Load Rating 3356 N
Inner Ring Material Steel
Bore Type Cylindrical Bore
Temperature Range [Max] 248 °F
Limiting Speed - Grease 32000 rpm
Cage Material Steel
Static Load Rating [Max] 1444 N
Width 7 mm
Seals or Shields 2 Shields
Rolling Element Material Steel
Snap Ring No
Bearing Type Deep Groove
ISO Precision Class P0
Limiting Speed - Oil 38000 rpm
Outer Ring Material Steel
Ball Material Steel
CategoryBall Bearings
Country of originJapan
Inner diameter9 mm
ManufactureNachi America
Mpn609ZZMC3
Outer diameter24 mm
SubcategoryDeep Groove Ball Bearing
Weight0.04
Width7 mm
