category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
17 mm
manufacture:
Nachi America
mpn:
6203NR
outer_diameter:
40 mm
subcategory:
Deep Groove Ball Bearing
upc:
4991893687897
weight:
0.14
width:
12 mm

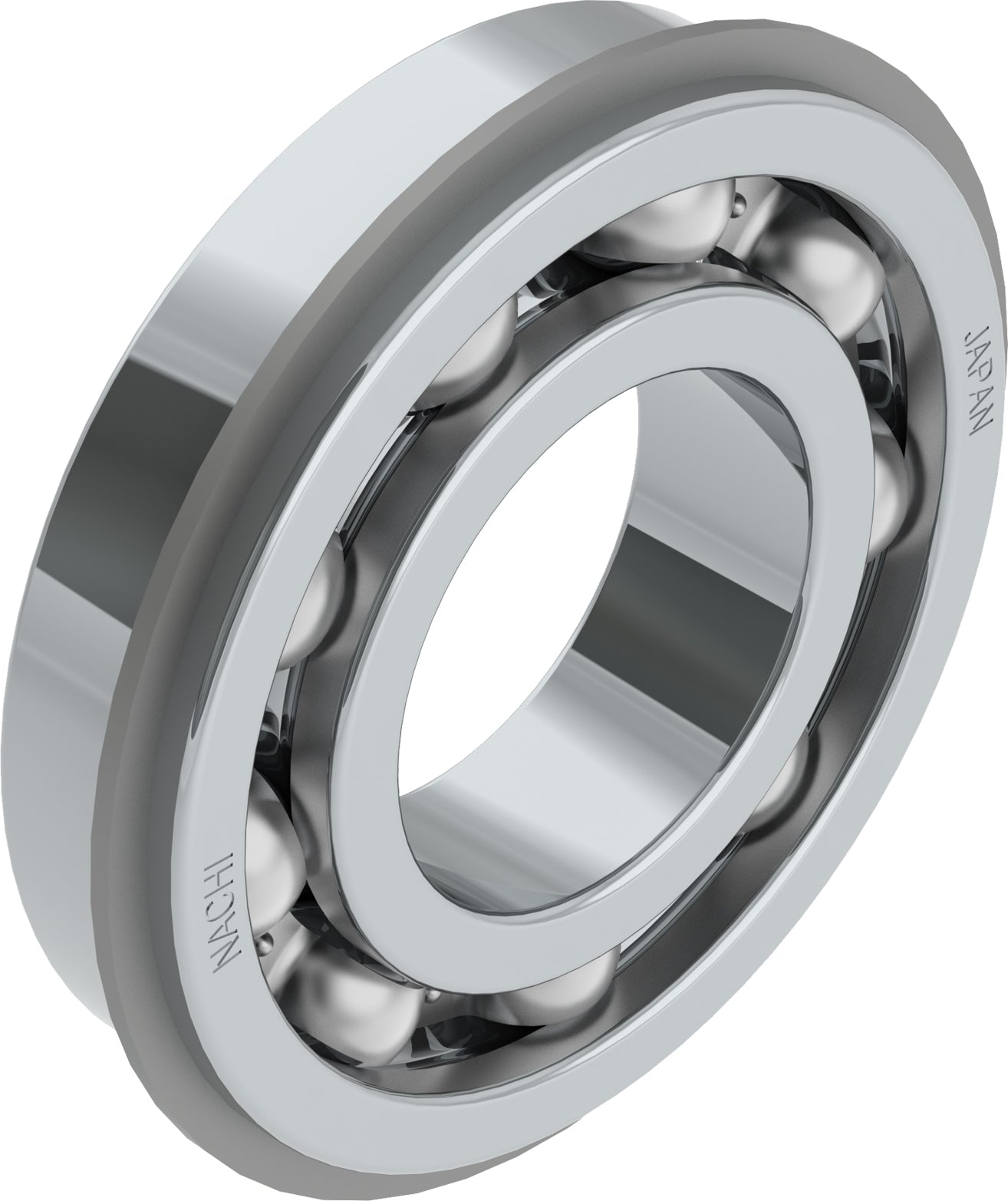

Product Description
Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Bearing Type Deep Groove
Seals or Shields No
Rolling Element Material Steel
Bore Type Cylindrical Bore
ISO Precision Class P0
Cage Material Steel
Ball Material Steel
Snap Ring Yes
Limiting Speed - Grease 18000 rpm
Dynamic Load Rating 9550 N
Inner Ring Material Steel
Outer Ring Material Steel
Width 12 mm
Temperature Range [Max] 248 °F
Limiting Speed - Oil 21000 rpm
Static Load Rating [Max] 4800 N
EAN or UPC 4991893687897
