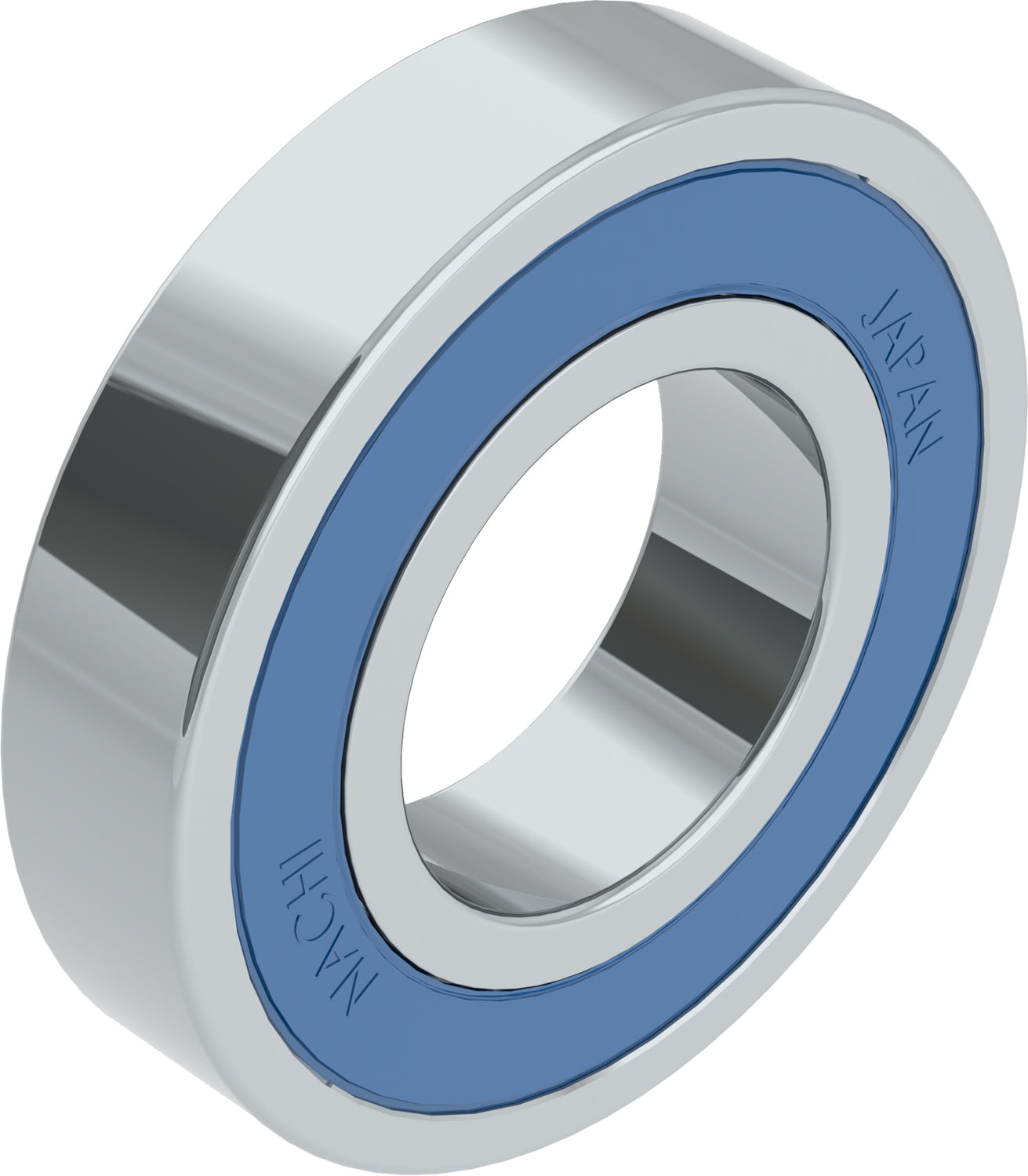

Nachi America - 6206-2NKE9C3 Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Bearing Type Deep Groove
Bore Type Cylindrical Bore
Snap Ring No
Dynamic Load Rating 19500 N
Rolling Element Material Steel
Width 16 mm
Outer Ring Material Steel
Temperature Range [Max] 248 °F
Cage Material Steel
ISO Precision Class P0
Limiting Speed - Grease 11000 rpm
Seals or Shields 2 Non-Contact Seals
Ball Material Steel
Grease Fill Mobil 28
Inner Ring Material Steel
Static Load Rating [Max] 11300 N
EAN or UPC 4991893530131
CategoryBall Bearings
Country of originJapan
Inner diameter30 mm
ManufactureNachi America
Mpn6206-2NKE9C3
Outer diameter62 mm
SubcategoryDeep Groove Ball Bearing
Upc4991893530131
Weight0.44
Width16 mm
