category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
35 mm
manufacture:
Nachi America
mpn:
6207NR
outer_diameter:
72 mm
subcategory:
Deep Groove Ball Bearing
upc:
4991893712902
weight:
0.63
width:
17 mm
Product Description

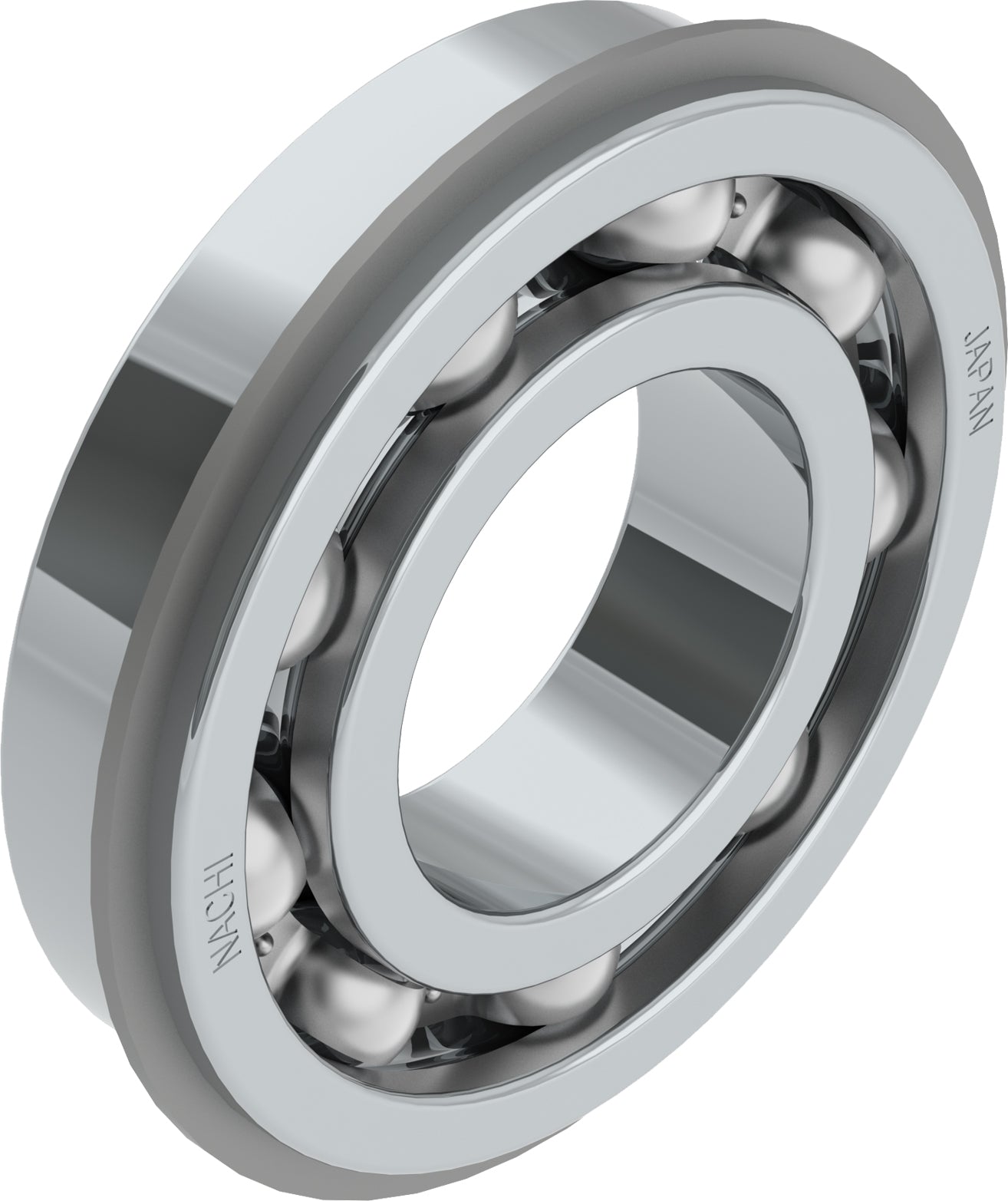

Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Limiting Speed - Oil 11000 rpm
Dynamic Load Rating 27500 N
Seals or Shields No
Static Load Rating [Max] 15300 N
Bearing Type Deep Groove
Snap Ring Yes
Cage Material Steel
Temperature Range [Max] 248 °F
Limiting Speed - Grease 9800 rpm
Bore Type Cylindrical Bore
ISO Precision Class P0
Ball Material Steel
Width 17 mm
Outer Ring Material Steel
Rolling Element Material Steel
Inner Ring Material Steel
EAN or UPC 4991893712902
