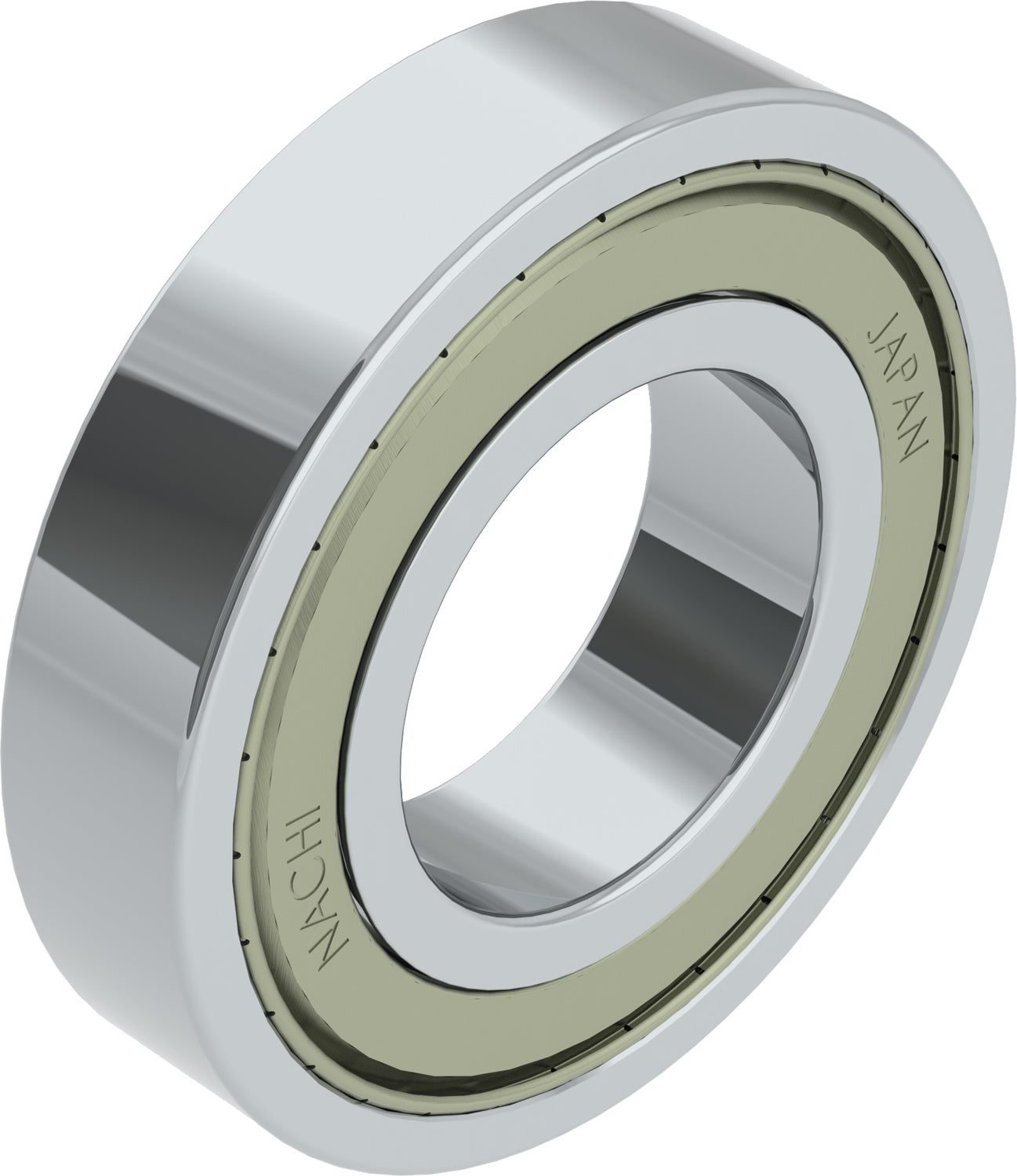

Nachi America - 6209ZZE Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Cage Material Steel
Temperature Range [Max] 248 °F
Outer Ring Material Steel
Grease Fill Chevron SRI#2
Limiting Speed - Grease 7800 rpm
Bearing Type Deep Groove
Width 19 mm
Static Load Rating [Max] 20500 N
Inner Ring Material Steel
Seals or Shields 2 Shields
Dynamic Load Rating 32500 N
Rolling Element Material Steel
Ball Material Steel
Bore Type Cylindrical Bore
Snap Ring No
ISO Precision Class P0
EAN or UPC 4991893721126
CategoryBall Bearings
Country of originJapan
Inner diameter45 mm
ManufactureNachi America
Mpn6209ZZE
Outer diameter85 mm
SubcategoryDeep Groove Ball Bearing
Upc4991893721126
Weight0.90
Width19 mm
