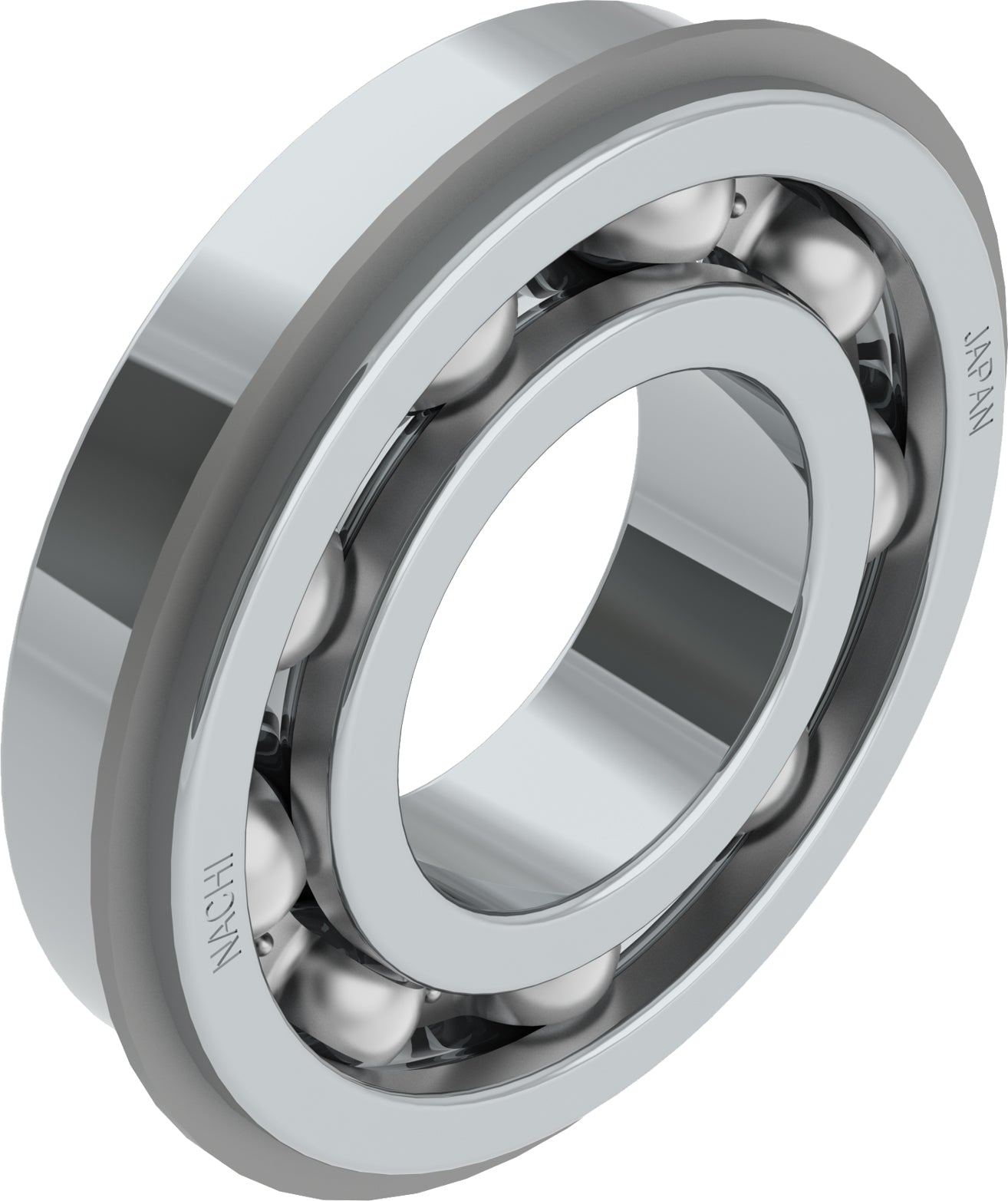

Nachi America - 6214NR Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Snap Ring Yes
Temperature Range [Max] 248 °F
Bearing Type Deep Groove
Cage Material Steel
Rolling Element Material Steel
Limiting Speed - Oil 6300 rpm
Ball Material Steel
Limiting Speed - Grease 5100 rpm
Width 24 mm
Static Load Rating [Max] 44000 N
Seals or Shields No
Dynamic Load Rating 62000 N
Inner Ring Material Steel
Outer Ring Material Steel
Bore Type Cylindrical Bore
ISO Precision Class P0
EAN or UPC 4991893730845
CategoryBall Bearings
Country of originJapan
Inner diameter70 mm
ManufactureNachi America
Mpn6214NR
Outer diameter125 mm
SubcategoryDeep Groove Ball Bearing
Upc4991893730845
Weight2.36
Width24 mm
