category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
75 mm
manufacture:
Nachi America
mpn:
6216-2NSLNR
outer_diameter:
130 mm
subcategory:
Deep Groove Ball Bearing
weight:
3.09
width:
25 mm

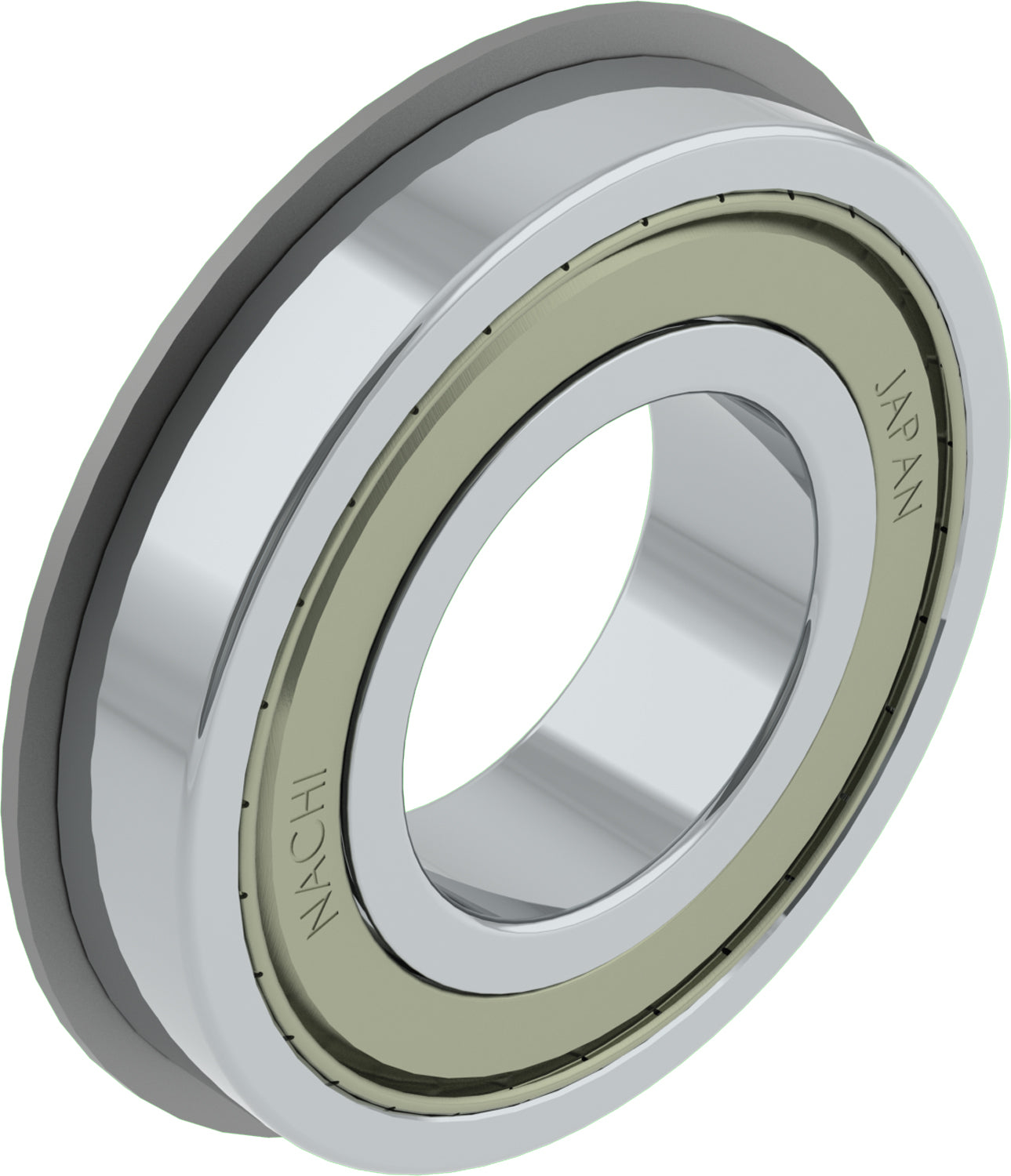

Product Description
Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Ball Material Steel
ISO Precision Class P0
Width 25 mm
Seals or Shields 2 Contact Seals
Cage Material Steel
Inner Ring Material Steel
Grease Fill Chevron SRI#2
Bearing Type Deep Groove
Temperature Range [Max] 248 °F
Bore Type Cylindrical Bore
Outer Ring Material Steel
Snap Ring Yes
Rolling Element Material Steel
Static Load Rating [Max] 53000 N
Dynamic Load Rating 72500 N
Limiting Speed - Grease 3000 rpm
