category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
80 mm
manufacture:
Nachi America
mpn:
6216ZZNR
outer_diameter:
140 mm
subcategory:
Deep Groove Ball Bearing
upc:
4991893532791
weight:
3.09
width:
26 mm
Product Description

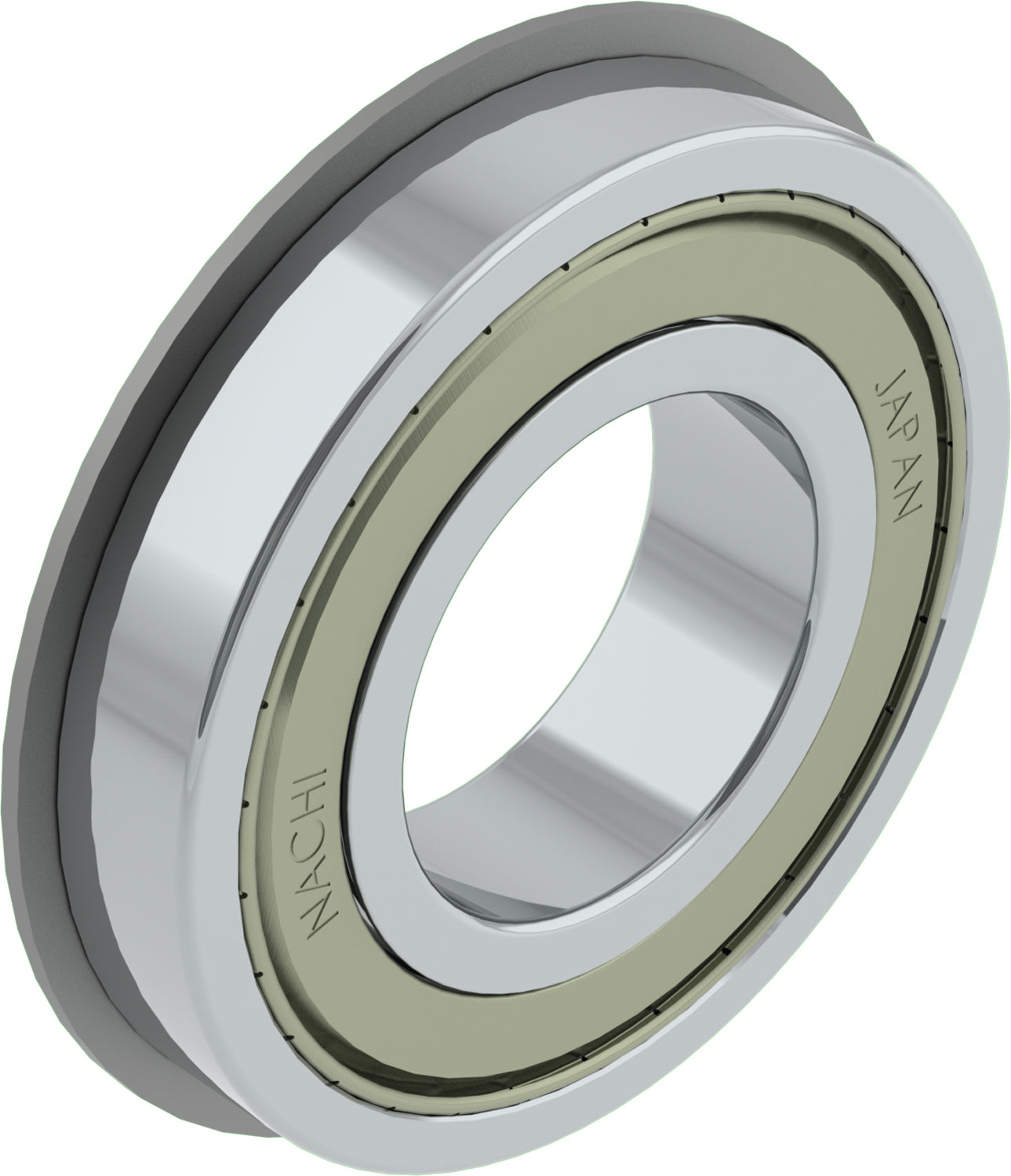

Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Ball Material Steel
Inner Ring Material Steel
Temperature Range [Max] 248 °F
Snap Ring Yes
Grease Fill Chevron SRI#2
Dynamic Load Rating 72500 N
Width 26 mm
Static Load Rating [Max] 53000 N
Seals or Shields 2 Shields
Limiting Speed - Grease 4500 rpm
Bearing Type Deep Groove
Cage Material Steel
ISO Precision Class P0
Bore Type Cylindrical Bore
Outer Ring Material Steel
Rolling Element Material Steel
EAN or UPC 4991893532791
