category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
95 mm
manufacture:
Nachi America
mpn:
6219-2NSNR
outer_diameter:
170 mm
subcategory:
Deep Groove Ball Bearing
upc:
4991893857429
weight:
5.78
width:
32 mm

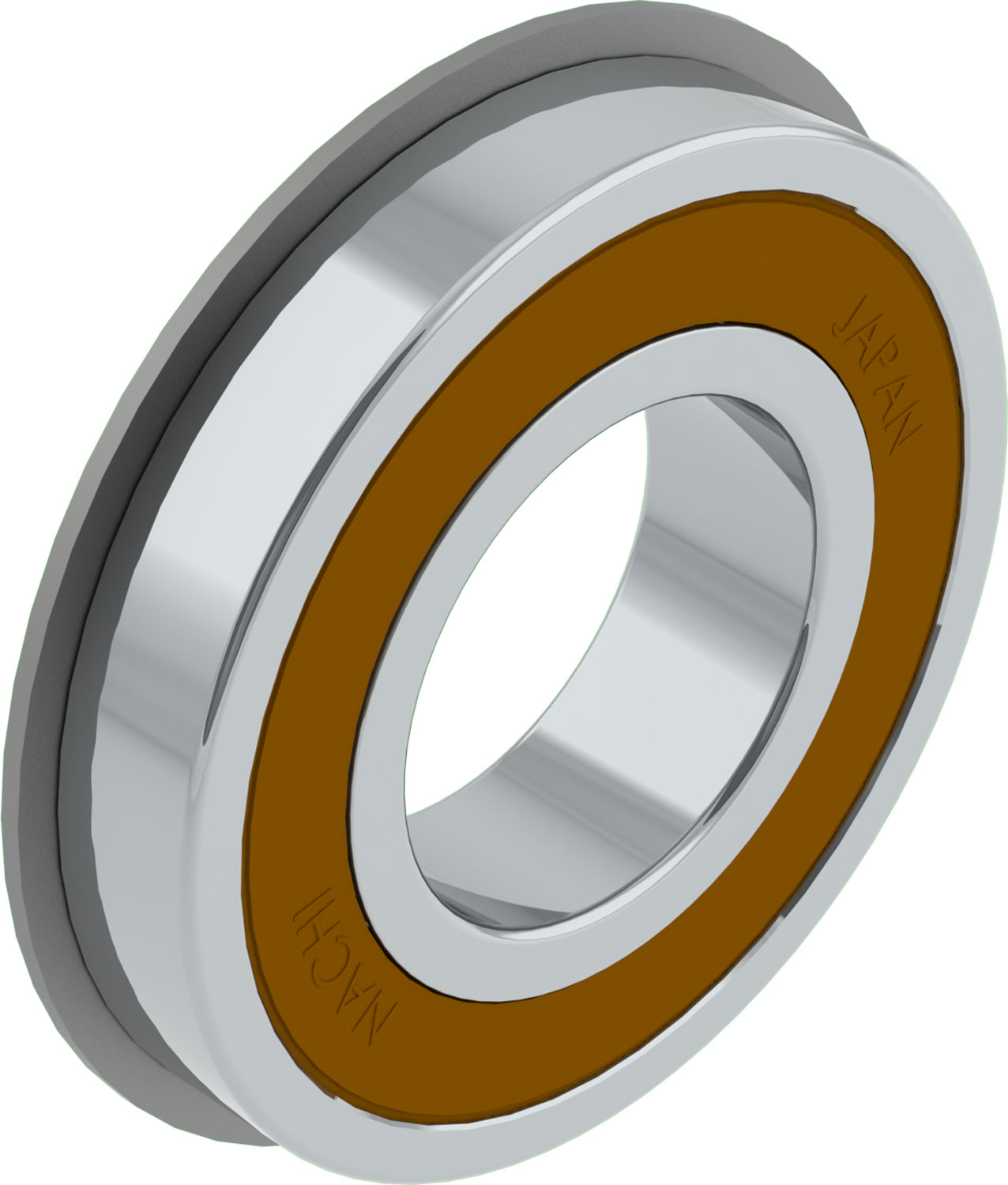

Product Description
Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Cage Material Steel
Grease Fill Polyrex EM
Limiting Speed - Grease 2600 rpm
Ball Material Steel
Outer Ring Material Steel
Rolling Element Material Steel
Width 32 mm
Snap Ring Yes
ISO Precision Class P0
Bore Type Cylindrical Bore
Inner Ring Material Steel
Dynamic Load Rating 109000 N
Temperature Range [Max] 248 °F
Static Load Rating [Max] 81500 N
Bearing Type Deep Groove
Seals or Shields 2 Contact Seals
EAN or UPC 4991893857429
