category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
95 mm
manufacture:
Nachi America
mpn:
6219ZZNR
outer_diameter:
170 mm
subcategory:
Deep Groove Ball Bearing
upc:
4991893857443
weight:
5.78
width:
32 mm

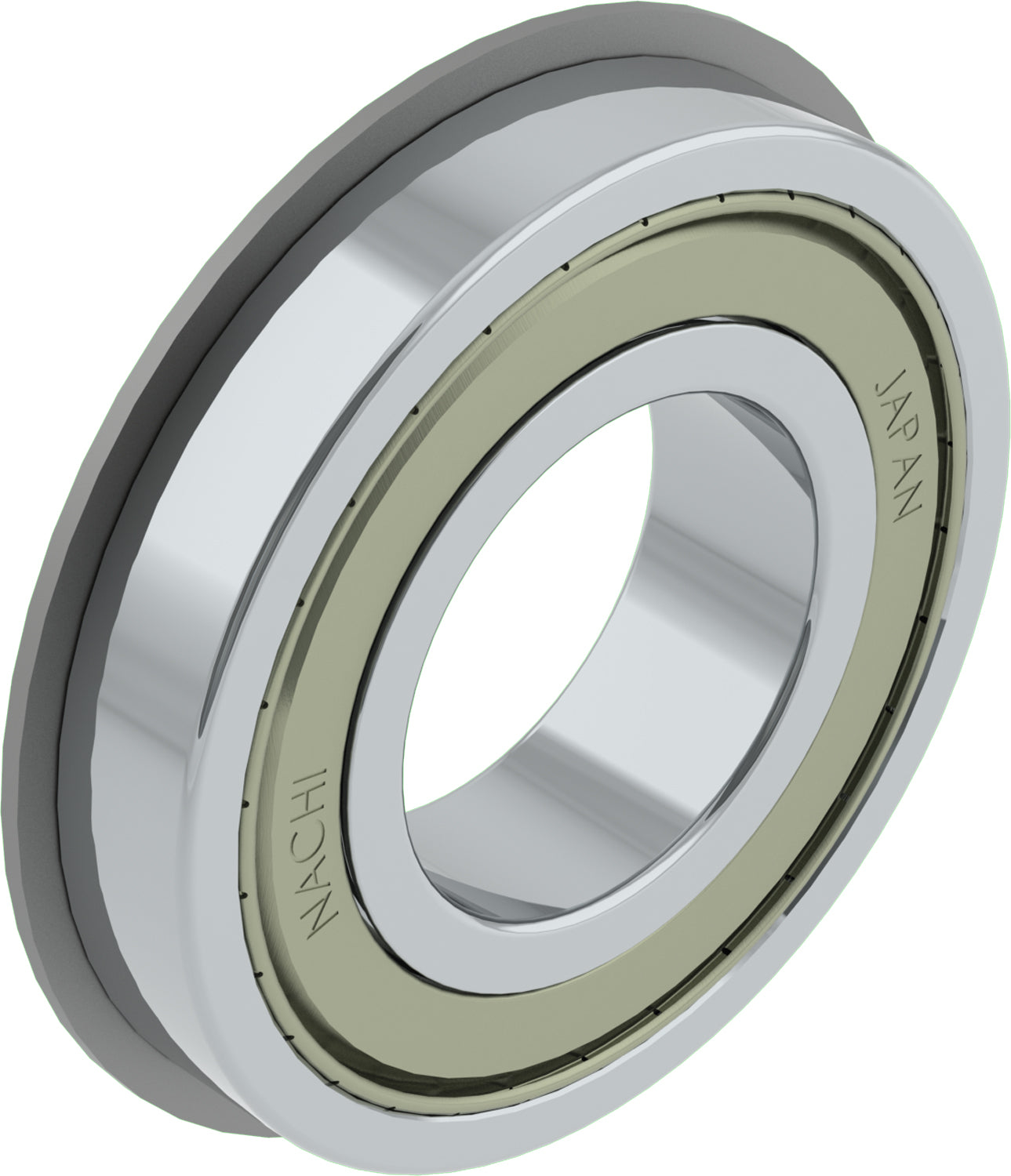

Product Description
Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Limiting Speed - Grease 3800 rpm
Cage Material Steel
Inner Ring Material Steel
Width 32 mm
Seals or Shields 2 Shields
Temperature Range [Max] 248 °F
Snap Ring Yes
Ball Material Steel
Outer Ring Material Steel
Bore Type Cylindrical Bore
Rolling Element Material Steel
Static Load Rating [Max] 81500 N
ISO Precision Class P0
Dynamic Load Rating 109000 N
Bearing Type Deep Groove
Grease Fill Chevron SRI#2
EAN or UPC 4991893857443
