category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
5 mm
manufacture:
Nachi America
mpn:
625ZZMC3
outer_diameter:
16 mm
subcategory:
Deep Groove Ball Bearing
weight:
0.01
width:
5 mm
Product Description

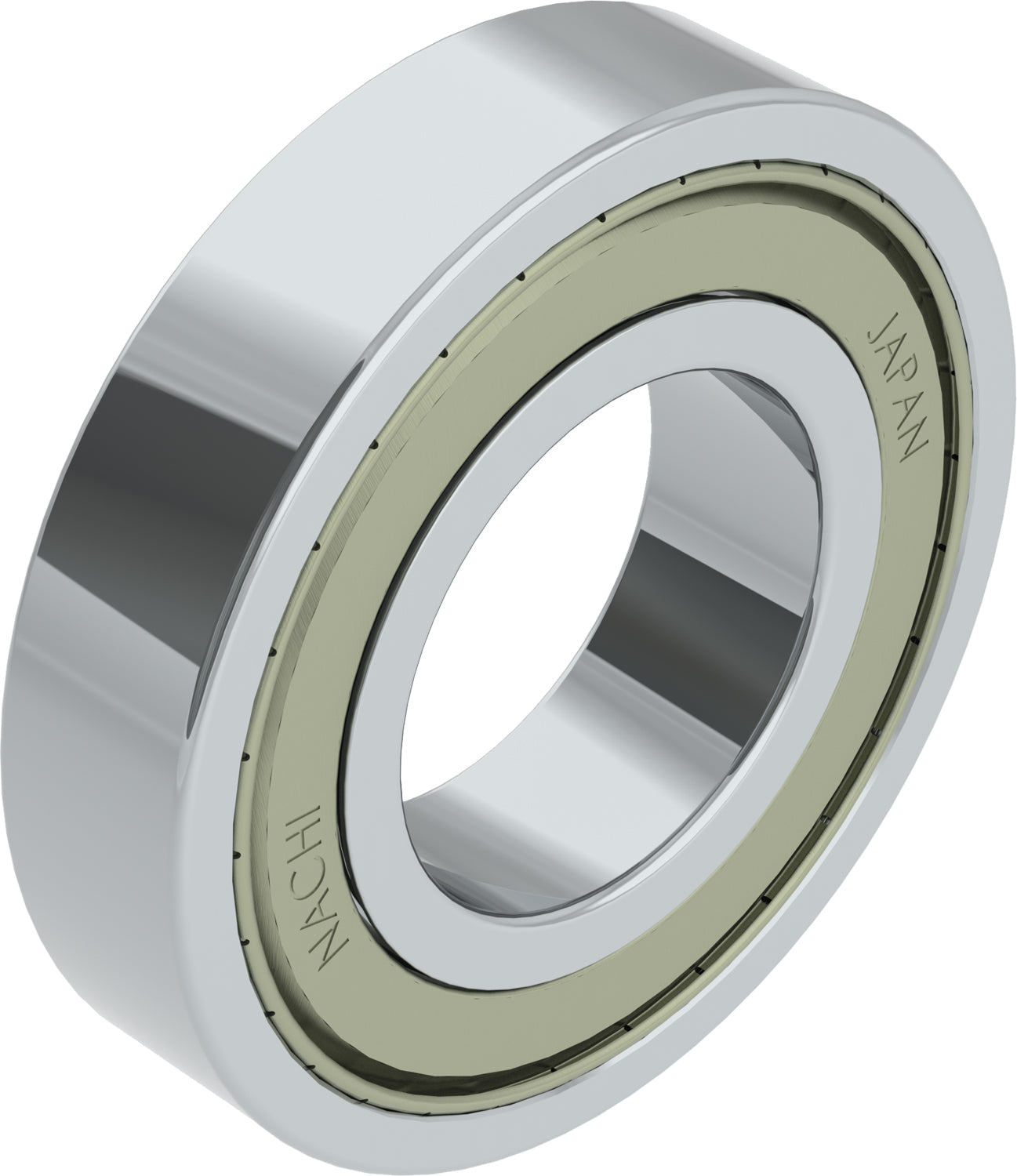

Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
ISO Precision Class P0
Limiting Speed - Grease 36000 rpm
Ball Material Steel
Static Load Rating [Max] 675 N
Temperature Range [Max] 248 °F
Cage Material Steel
Bearing Type Deep Groove
Rolling Element Material Steel
Grease Fill Multemp SRL
Inner Ring Material Steel
Dynamic Load Rating 1729 N
Snap Ring No
Outer Ring Material Steel
Bore Type Cylindrical Bore
Limiting Speed - Oil 43000 rpm
Seals or Shields 2 Shields
Width 5 mm
