category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
30 mm
manufacture:
Nachi America
mpn:
6306-2NSE9NR
outer_diameter:
72 mm
subcategory:
Deep Groove Ball Bearing
upc:
4991893768954
weight:
0.76
width:
19 mm

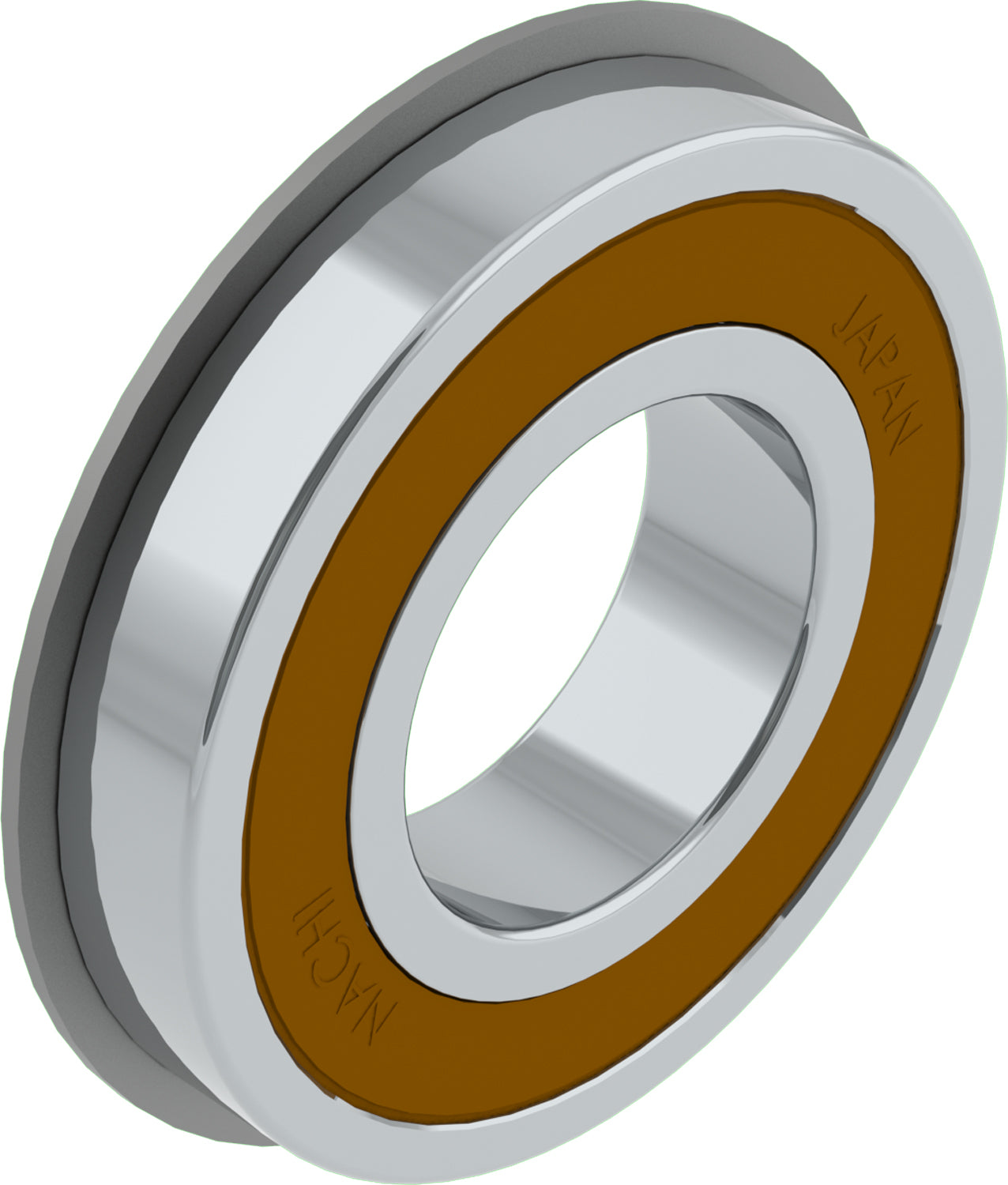

Product Description
Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Ball Material Steel
Dynamic Load Rating 26700 N
Seals or Shields 2 Contact Seals
Limiting Speed - Grease 6700 rpm
Grease Fill Polyrex EM
ISO Precision Class P0
Bearing Type Deep Groove
Snap Ring Yes
Outer Ring Material Steel
Cage Material Steel
Inner Ring Material Steel
Static Load Rating [Max] 15000 N
Temperature Range [Max] 248 °F
Width 19 mm
Rolling Element Material Steel
Bore Type Cylindrical Bore
EAN or UPC 4991893768954
