category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
30 mm
manufacture:
Nachi America
mpn:
6306NR
outer_diameter:
72 mm
subcategory:
Deep Groove Ball Bearing
upc:
4991893769913
weight:
0.76
width:
19 mm

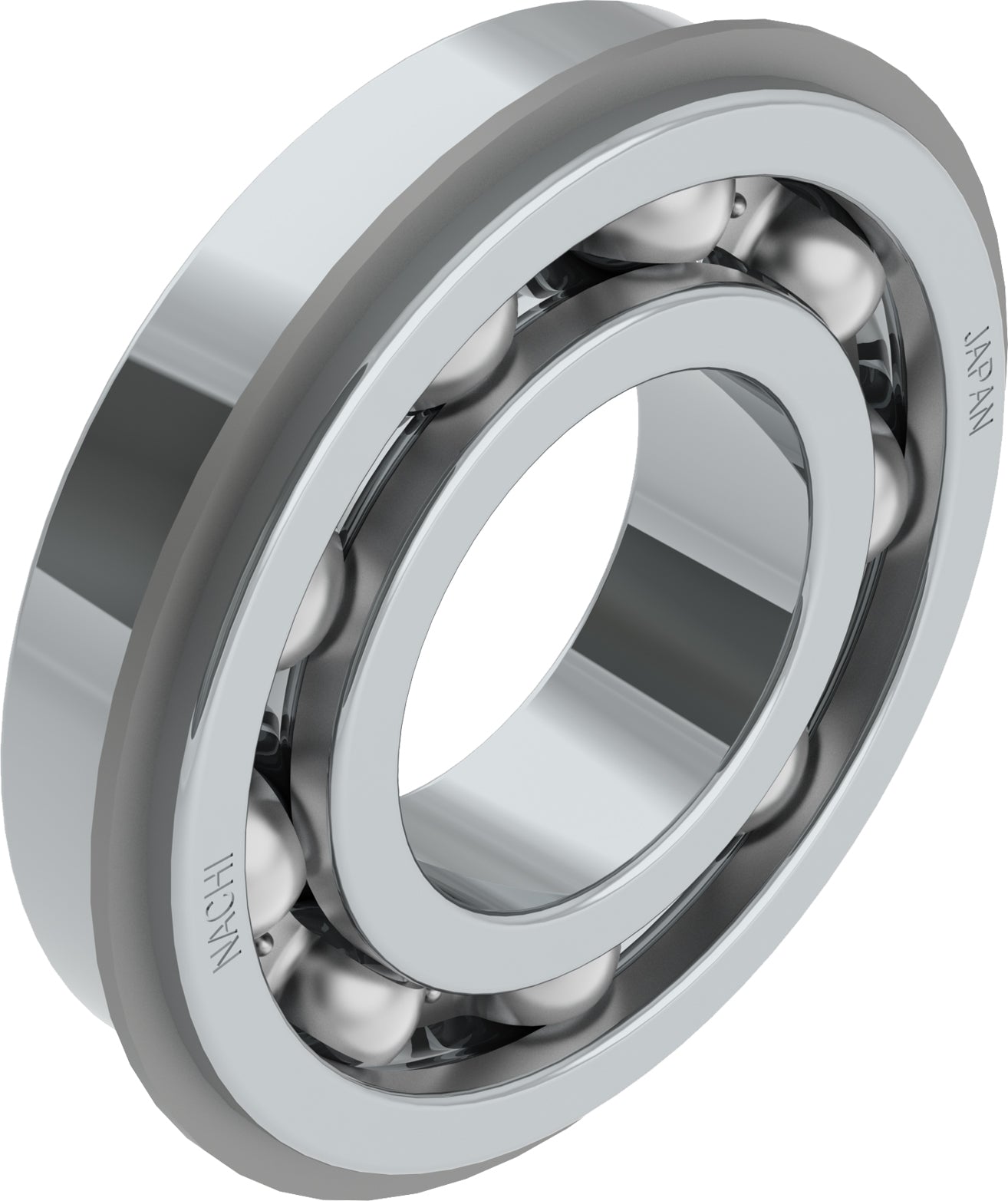

Product Description
Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Cage Material Steel
Outer Ring Material Steel
Limiting Speed - Oil 12000 rpm
Dynamic Load Rating 26700 N
Temperature Range [Max] 248 °F
Snap Ring Yes
Bearing Type Deep Groove
Seals or Shields No
Inner Ring Material Steel
Rolling Element Material Steel
ISO Precision Class P0
Bore Type Cylindrical Bore
Width 19 mm
Ball Material Steel
Static Load Rating [Max] 15000 N
Limiting Speed - Grease 10000 rpm
EAN or UPC 4991893769913
