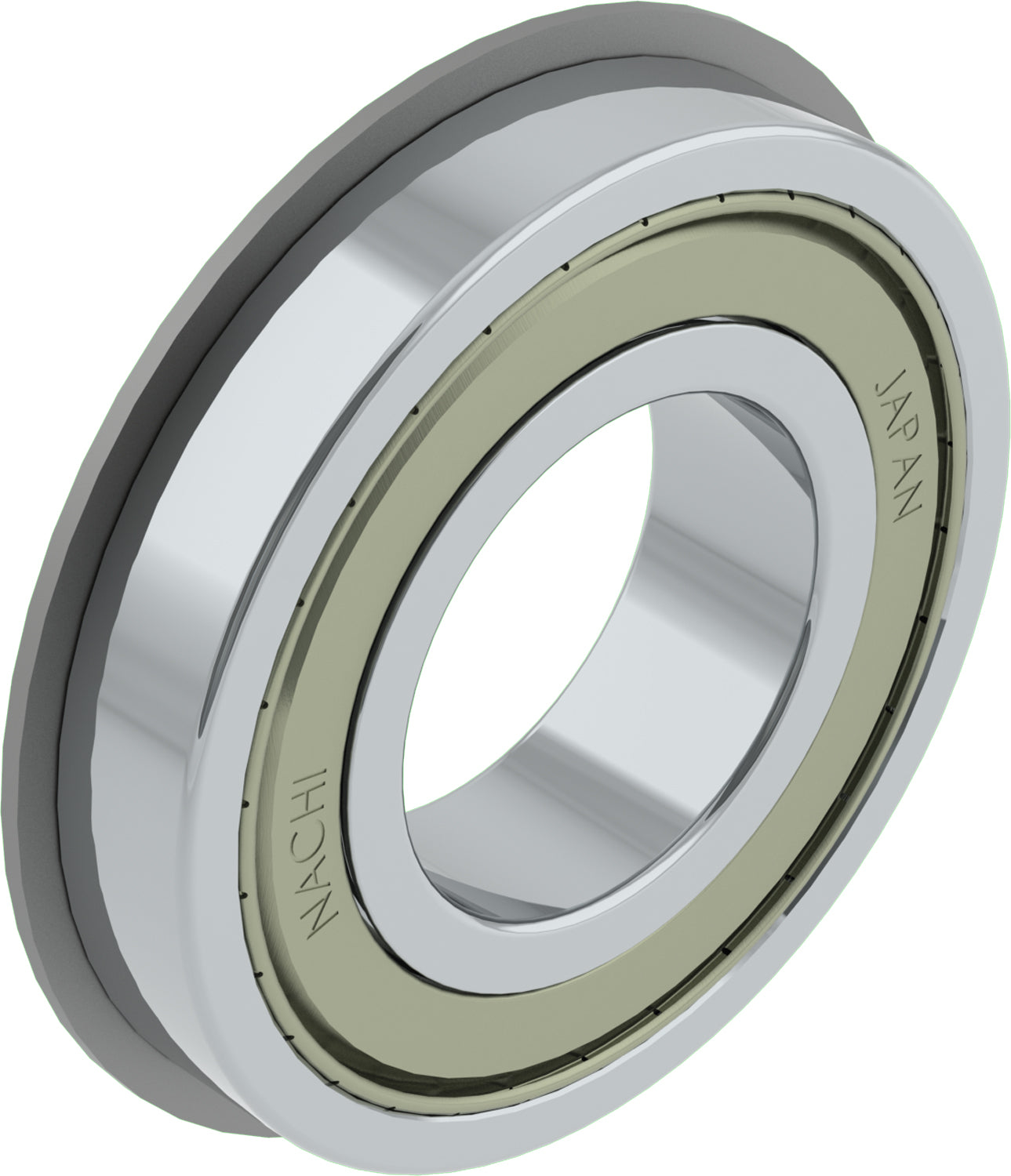

Nachi America - 6306ZZENR Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Snap Ring Yes
Dynamic Load Rating 26700 N
Static Load Rating [Max] 15000 N
Width 19 mm
Bore Type Cylindrical Bore
Outer Ring Material Steel
Limiting Speed - Grease 10000 rpm
Rolling Element Material Steel
Bearing Type Deep Groove
Ball Material Steel
Inner Ring Material Steel
Grease Fill Chevron SRI#2
Seals or Shields 2 Shields
Temperature Range [Max] 248 °F
Cage Material Steel
ISO Precision Class P0
EAN or UPC 4991893772197
CategoryBall Bearings
Country of originJapan
Inner diameter30 mm
ManufactureNachi America
Mpn6306ZZENR
Outer diameter72 mm
SubcategoryDeep Groove Ball Bearing
Upc4991893772197
Weight0.76
Width19 mm
