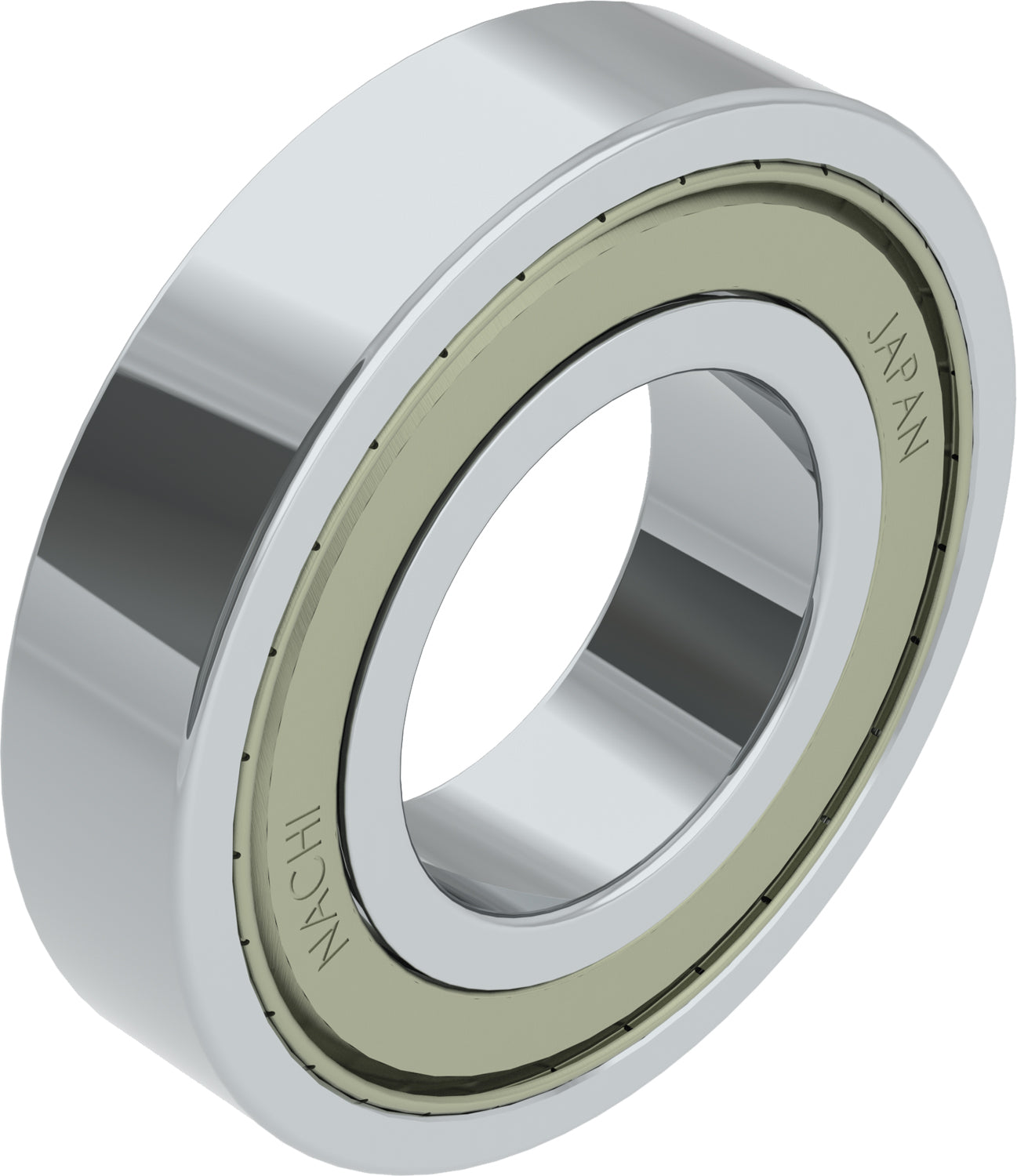

Nachi America - 6308ZZEC3 Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Rolling Element Material Steel
Cage Material Steel
Bore Type Cylindrical Bore
ISO Precision Class P0
Width 23 mm
Outer Ring Material Steel
Dynamic Load Rating 40500 N
Snap Ring No
Temperature Range [Max] 248 °F
Ball Material Steel
Bearing Type Deep Groove
Static Load Rating [Max] 24100 N
Grease Fill Chevron SRI#2
Inner Ring Material Steel
Limiting Speed - Grease 7800 rpm
Seals or Shields 2 Shields
EAN or UPC 4991893778847
CategoryBall Bearings
Country of originJapan
Inner diameter40 mm
ManufactureNachi America
Mpn6308ZZEC3
Outer diameter90 mm
SubcategoryDeep Groove Ball Bearing
Upc4991893778847
Weight1.40
Width23 mm
