category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
45 mm
manufacture:
Nachi America
mpn:
6309ZZENRC3
outer_diameter:
100 mm
subcategory:
Deep Groove Ball Bearing
upc:
4991893782080
weight:
1.84
width:
25 mm

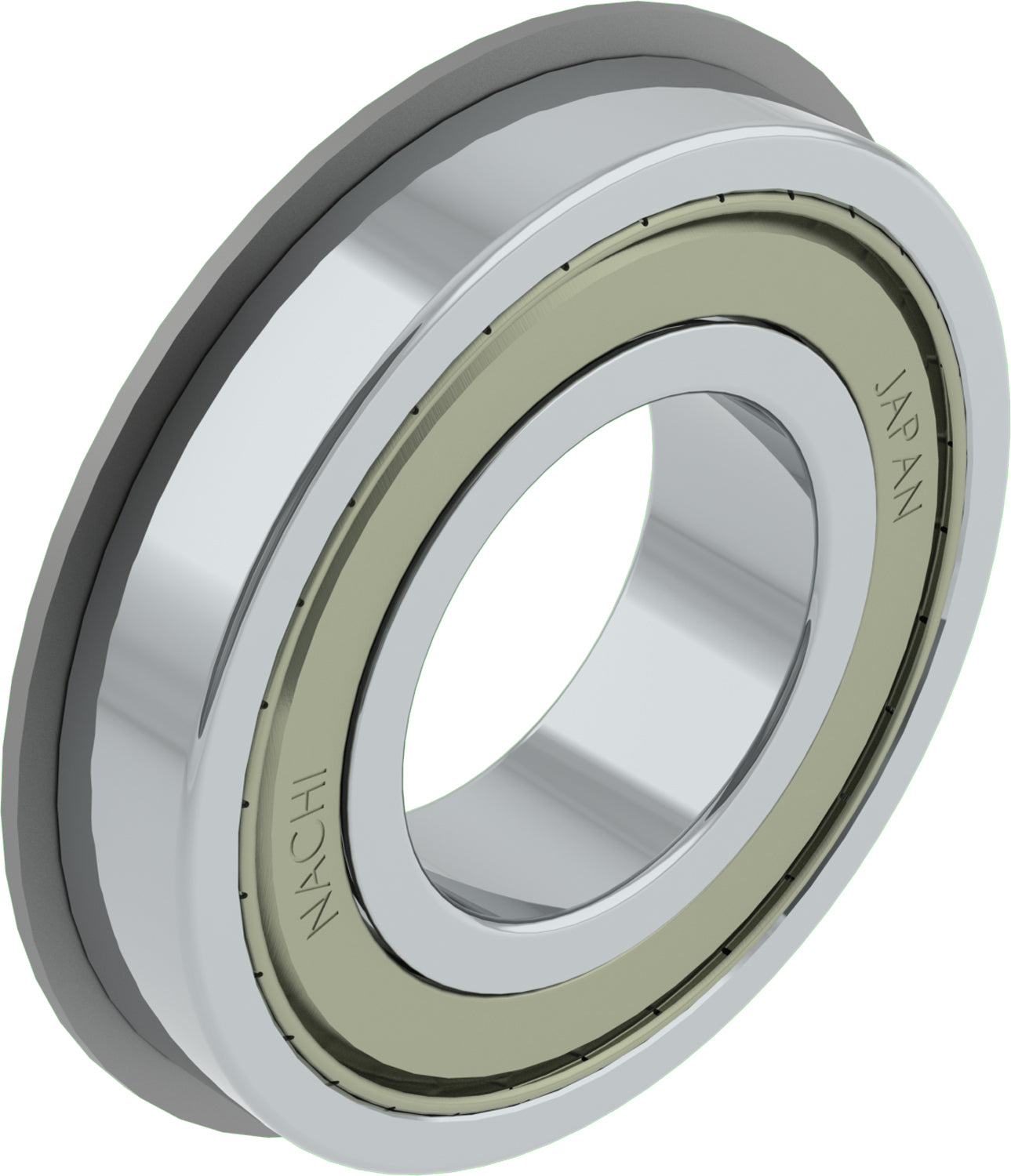

Product Description
Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Cage Material Steel
Limiting Speed - Grease 7000 rpm
ISO Precision Class P0
Inner Ring Material Steel
Ball Material Steel
Rolling Element Material Steel
Bearing Type Deep Groove
Bore Type Cylindrical Bore
Snap Ring Yes
Static Load Rating [Max] 32000 N
Width 25 mm
Dynamic Load Rating 53000 N
Outer Ring Material Steel
Temperature Range [Max] 248 °F
Grease Fill Chevron SRI#2
Seals or Shields 2 Shields
EAN or UPC 4991893782080
