category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
50 mm
manufacture:
Nachi America
mpn:
6310-2NKE9C3
outer_diameter:
110 mm
subcategory:
Deep Groove Ball Bearing
upc:
4991893536539
weight:
2.36
width:
27 mm

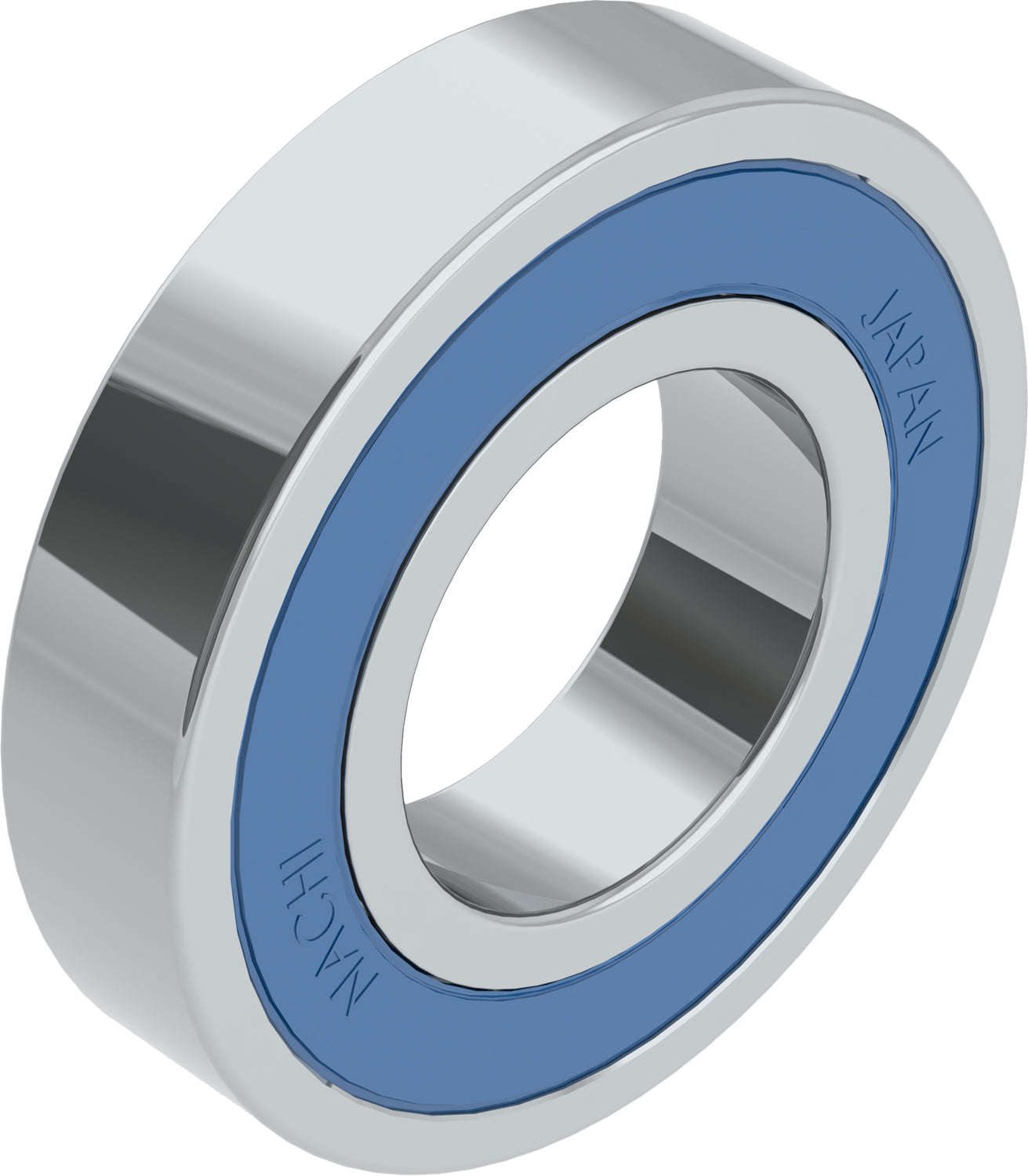

Product Description
Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Rolling Element Material Steel
Static Load Rating [Max] 38000 N
Bearing Type Deep Groove
Dynamic Load Rating 62000 N
Snap Ring No
Temperature Range [Max] 248 °F
Grease Fill Mobil 28
Seals or Shields 2 Non-Contact Seals
Limiting Speed - Grease 6400 rpm
Width 27 mm
Outer Ring Material Steel
Cage Material Steel
Ball Material Steel
Inner Ring Material Steel
ISO Precision Class P0
Bore Type Cylindrical Bore
EAN or UPC 4991893536539
