category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
190 mm
manufacture:
Nachi America
mpn:
6838MY
outer_diameter:
240 mm
subcategory:
Deep Groove Ball Bearing
weight:
5.73
width:
24 mm
Product Description

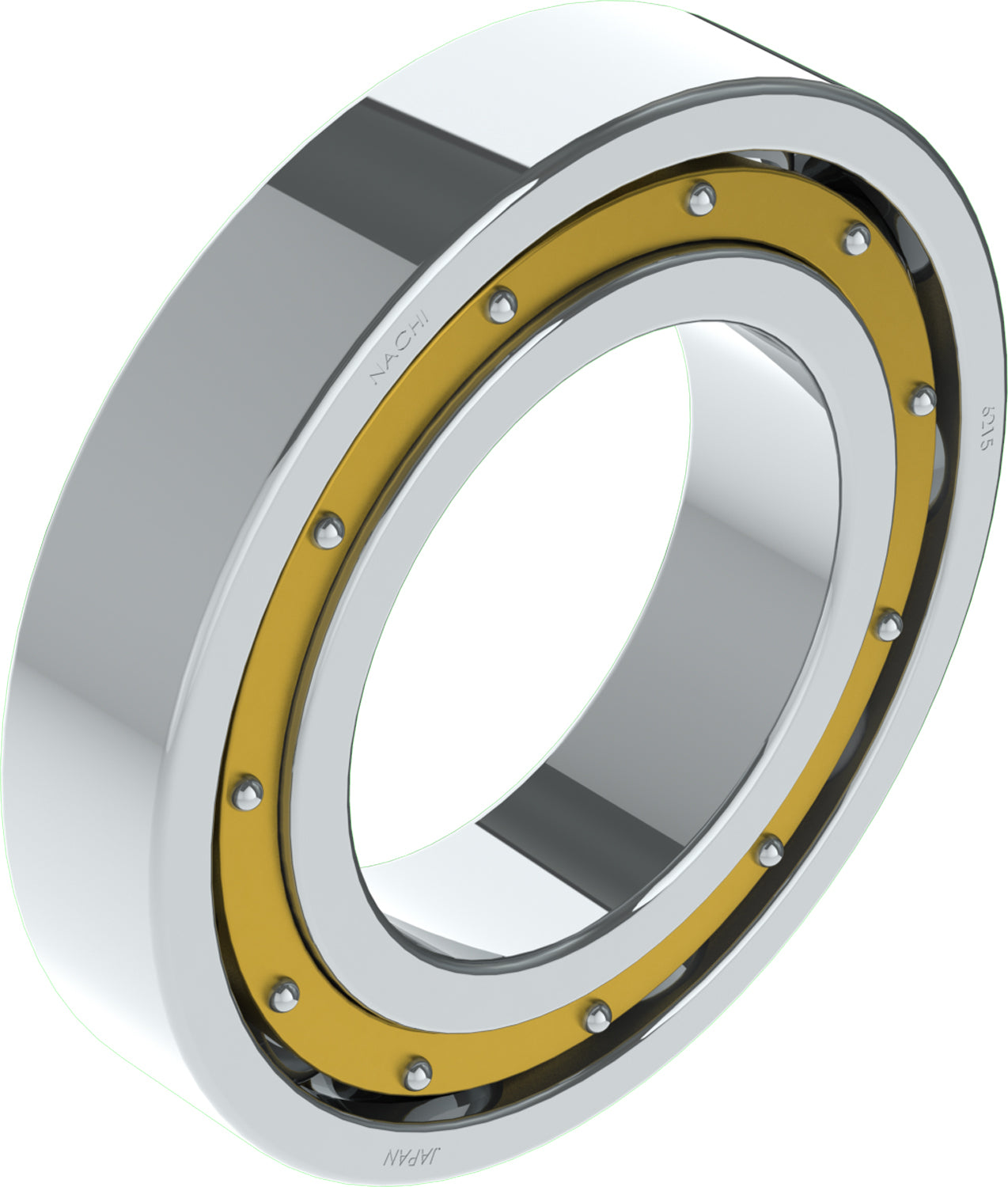

Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
ISO Precision Class P0
Seals or Shields No
Inner Ring Material Steel
Limiting Speed - Grease 2400 rpm
Rolling Element Material Steel
Bore Type Cylindrical Bore
Static Load Rating [Max] 88000 N
Limiting Speed - Oil 2900 rpm
Bearing Type Deep Groove
Snap Ring No
Temperature Range [Max] 248 °F
Width 24 mm
Ball Material Steel
Outer Ring Material Steel
Cage Material Machined High Strength Brass Cage
Dynamic Load Rating 73000 N
