category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
180 mm
manufacture:
Nachi America
mpn:
6848MY
outer_diameter:
225 mm
subcategory:
Deep Groove Ball Bearing
upc:
4991893540642
weight:
10.14
width:
22 mm
Product Description

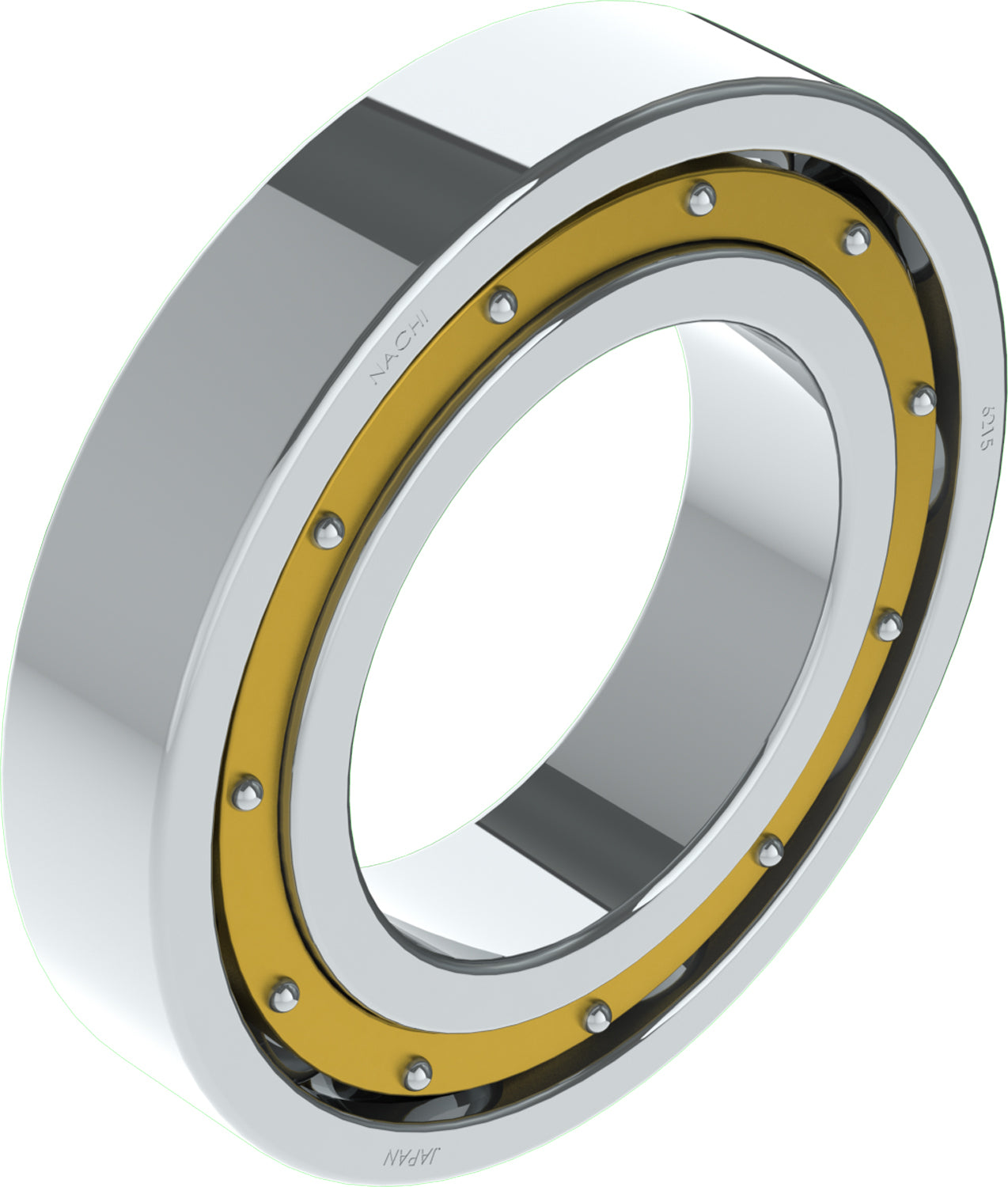

Because of their versatility, Single-row, Deep-groove Ball Bearings are the most popular of all the ball bearing types. NACHI Deep-groove Ball Bearings are available in a wide range of series defined by the JIS (ISO) standard dimension plan and are also made to meet specialized dimension and configuration requirements.
Features
NACHI Deep-Groove Ball Bearings are availible open, sealed, or shielded. (-2NSE9) = 2 High Performance NBR Contact Seals, (-2NKE9) = 2 High Performance NBR Non-Contact Seals, (ZZE) = 2 Heavy Duty Shields, (-2NSL) = 2 Large Size NBR Contact Seals, (ZZ) = 2 Large Size Shields, (MY) = Brass Cage
Additional Information
Bearing Type Deep Groove
Inner Ring Material Steel
Cage Material Machined High Strength Brass Cage
Seals or Shields No
Rolling Element Material Steel
Dynamic Load Rating 98500 N
Outer Ring Material Steel
Static Load Rating [Max] 127000 N
Width 22 mm
Bore Type Cylindrical Bore
ISO Precision Class P0
Ball Material Steel
Limiting Speed - Oil 2200 rpm
Limiting Speed - Grease 1900 rpm
Snap Ring No
Temperature Range [Max] 248 °F
EAN or UPC 4991893540642
