Nachi America

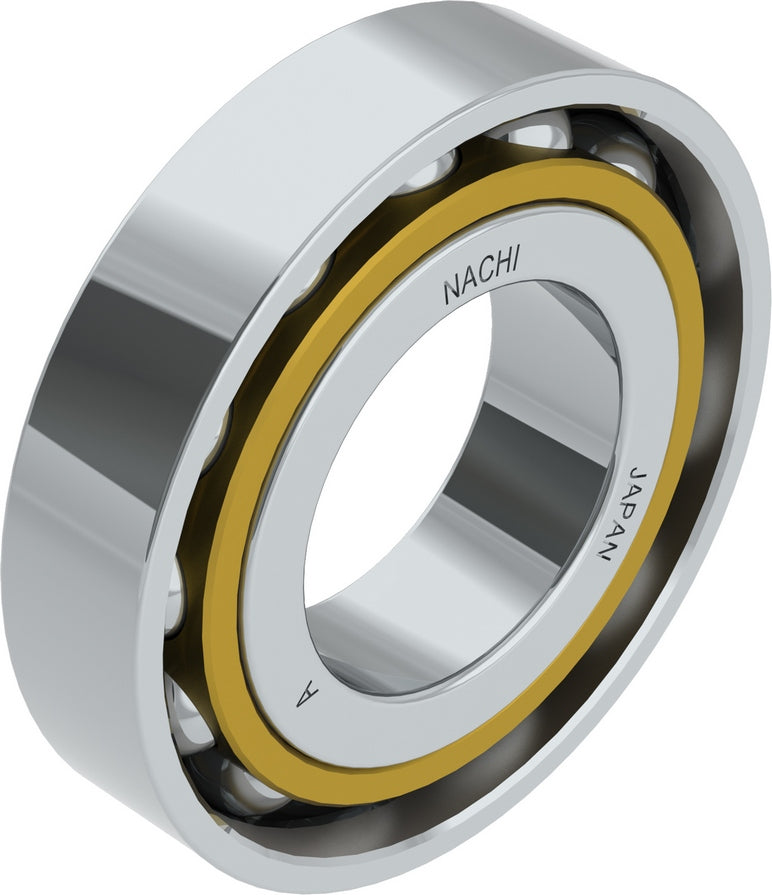

Nachi America 7215BMUC3 Angular Contact Ball Bearing - Single - 40°

Nachi America 7215BMUC3 Angular Contact Ball Bearing - Single - 40°

Dropship

SKU SKU:kpi113-7215BMUC3

Regular price $160.74 USD
Regular price Sale price $160.74 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Ball Bearings
country_of_origin: Japan
inner_diameter: 75 mm
manufacture: Nachi America
mpn: 7215BMUC3
outer_diameter: 130 mm
subcategory: Angular Contact Ball Bearing - Single - 40°
upc: 4991893844832
weight: 2.71
width: 25 mm

Product Description

Angular Contact Ball Bearing. Balls and the inner ring and outer ring raceways are designed for contact in a specific contact angle, which means this type of bearing is suitable for composite loads (axial load and radial load). The contact angle means that axial force components are generated when a radial load is applied, so these are normally used in pairs at either end of a shaft.

Features

With angular contact ball bearings, the balls and the inner ring and outer ring raceways form a specific angle of contact. When used in a single configuration, axial load is limited to a single direction, this type of bearing is suitable for bearing composite loads made up of axial and radial loads. Since this type of bearing has a contact angle, axial components are generated when a radial load is applied. Becasue of this, this type of bearing is normally used in pairs at either end of a shaft.

Additional Information

Ball Material Steel
Width 25 mm
Cage Material Machined High Strength Brass Cage
Bearing Type Angular Contact
Seals or Shields No
Outer Ring Material Steel
Limiting Speed - Grease 4300 rpm
Temperature Range [Max] 248 °F
Contact Angle 40°
Universally (Flush) Ground Yes
ISO Precision Class P0
Bore Type Cylindrical Bore
Rolling Element Material Steel
Static Load Rating [Max] 59300 N
Inner Ring Material Steel
Limiting Speed - Oil 5800 rpm
Dynamic Load Rating 71700 N
Snap Ring No
EAN or UPC 4991893844832
