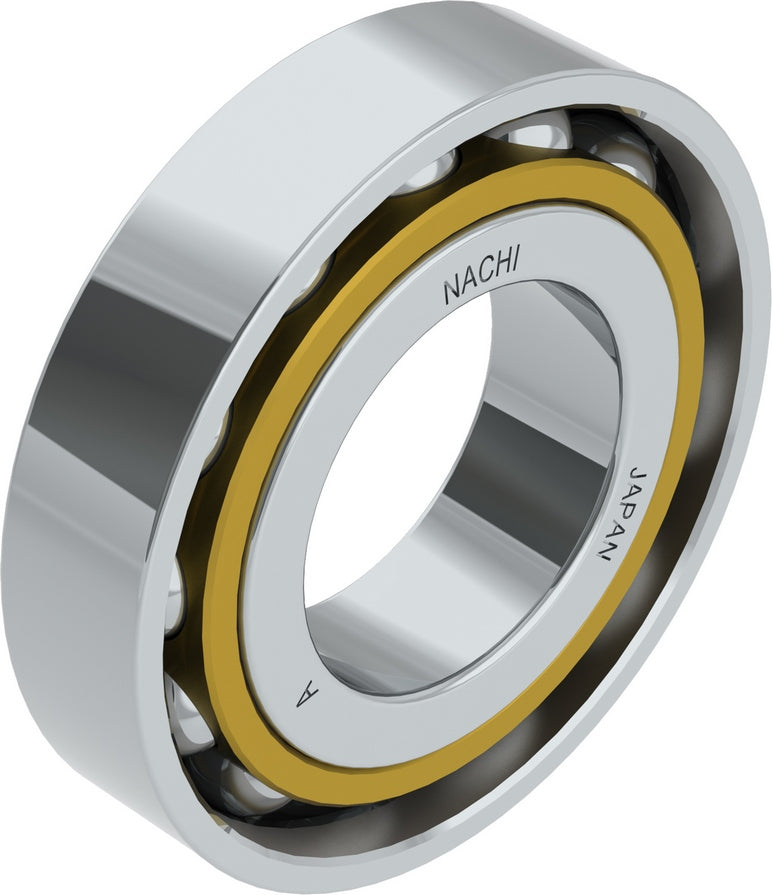

Nachi America 7312BMBUC3 Angular Contact Ball Bearing

Nachi America 7312BMBUC3 Angular Contact Ball Bearing

Back Order

Get it by Sun, Jun 01 - Fri, Jun 06

SKU kpi113-7312BMBUC3

0
(0 rating)
$161.75 USD
$161.75 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Ball Bearings
country_of_origin: Japan
inner_diameter: 60 mm
manufacture: Nachi America
mpn: 7312BMBUC3
outer_diameter: 130 mm
subcategory: Angular Contact Ball Bearing
weight: 4.00
width: 31 mm

Product Description

Nachi America - 7312BMBUC3 Nachi's new BMBU 40 degree angular contact ball bearings have a counter bored inner ring and new optimized cage for better lubricant flow, especially in vertical shaft electric motor applications. Lower rotating mass results in better energy efficiency.

Additional Information

Inner Ring Material Steel
Rolling Element Material Steel
Limiting Speed - Oil 5300 rpm
Cage Material Brass
Universally (Flush) Ground Yes
Bore Type Cylindrical Bore
Bearing Type Angular Contact
Outer Ring Material Steel
Dynamic Load Rating 87500 N
Seals or Shields No
Temperature Range [Max] 248 °F
Ball Material Steel
ISO Precision Class P0
Limiting Speed - Grease 4200 rpm
Static Load Rating [Max] 61900 N
Width 31 mm
Contact Angle 40°
