category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
65 mm
manufacture:
Nachi America
mpn:
7313BMBUC3
outer_diameter:
140 mm
subcategory:
Angular Contact Ball Bearing
weight:
4.89
width:
33 mm
Product Description

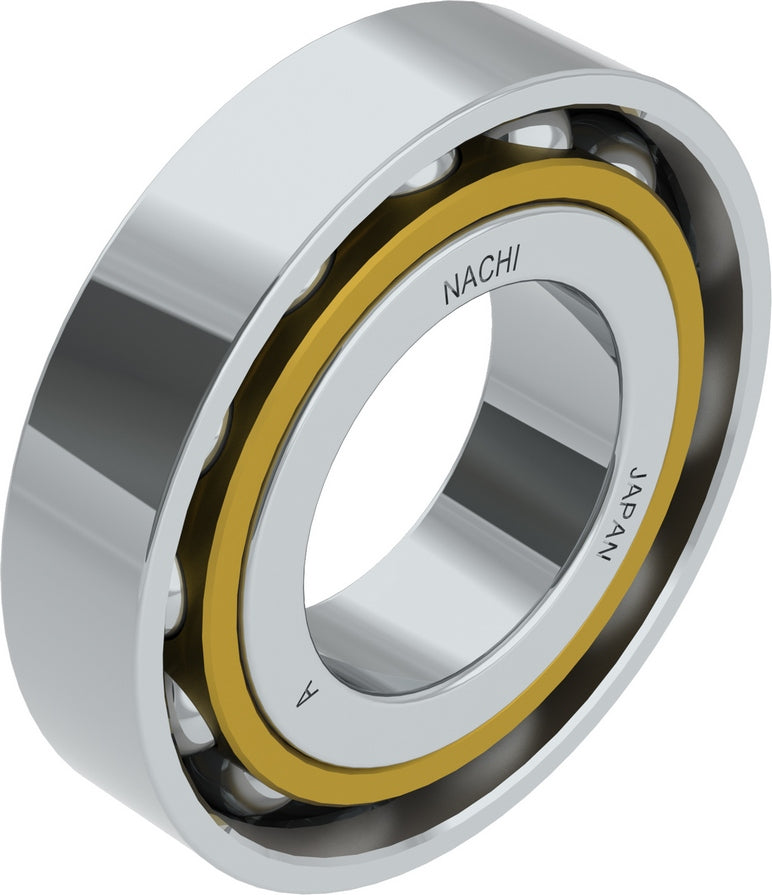

Nachi's new BMBU 40 degree angular contact ball bearings have a counter bored inner ring and new optimized cage for better lubricant flow, especially in vertical shaft electric motor applications. Lower rotating mass results in better energy efficiency.
Additional Information
Width 33 mm
Bore Type Cylindrical Bore
Limiting Speed - Oil 4900 rpm
Universally (Flush) Ground Yes
Bearing Type Angular Contact
Outer Ring Material Steel
Contact Angle 40°
Limiting Speed - Grease 3900 rpm
Rolling Element Material Steel
Inner Ring Material Steel
ISO Precision Class P0
Ball Material Steel
Seals or Shields No
Cage Material Brass
Temperature Range [Max] 248 °F
Dynamic Load Rating 99100 N
Static Load Rating [Max] 71200 N
