Nachi America

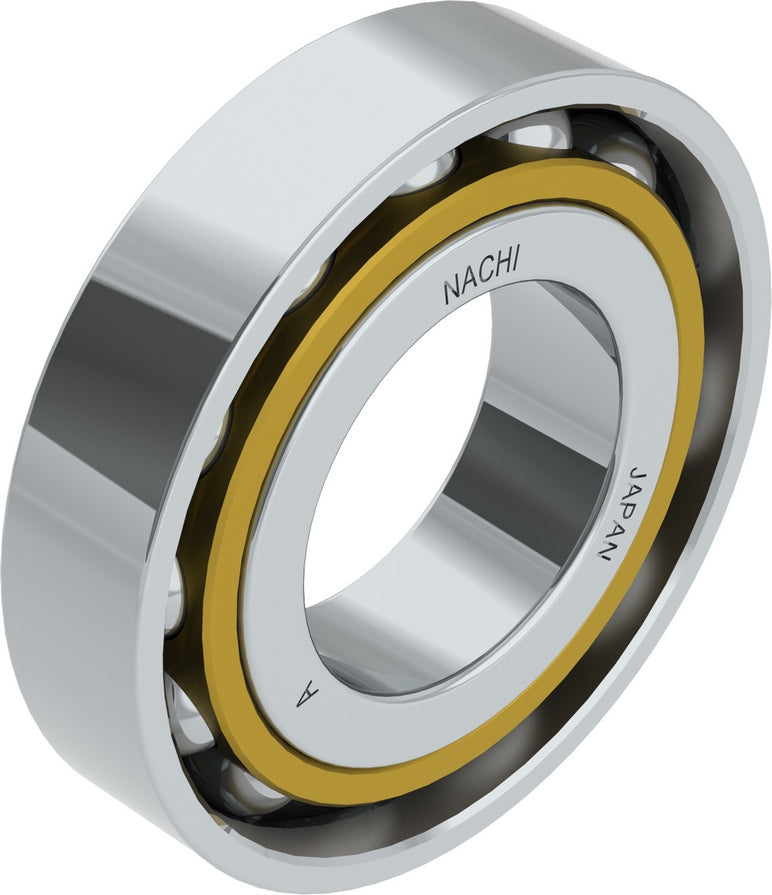

Nachi America 7316BMBUC3 Angular Contact Ball Bearing

Nachi America 7316BMBUC3 Angular Contact Ball Bearing

Back Order

Get it by Sun, Jun 01 - Fri, Jun 06

SKU kpi113-7316BMBUC3

0
(0 rating)
$335.95 USD
$335.95 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Ball Bearings
country_of_origin: Japan
inner_diameter: 80 mm
manufacture: Nachi America
mpn: 7316BMBUC3
outer_diameter: 170 mm
subcategory: Angular Contact Ball Bearing
weight: 9.21
width: 39 mm

Product Description

Nachi America - 7316BMBUC3 Nachi's new BMBU 40 degree angular contact ball bearings have a counter bored inner ring and new optimized cage for better lubricant flow, especially in vertical shaft electric motor applications. Lower rotating mass results in better energy efficiency.

Additional Information

Universally (Flush) Ground Yes
Dynamic Load Rating 131000 N
Limiting Speed - Oil 4000 rpm
Rolling Element Material Steel
Width 39 mm
Limiting Speed - Grease 3200 rpm
Cage Material Brass
Seals or Shields No
Ball Material Steel
ISO Precision Class P0
Bearing Type Angular Contact
Inner Ring Material Steel
Static Load Rating [Max] 103000 N
Outer Ring Material Steel
Contact Angle 40°
Temperature Range [Max] 248 °F
Bore Type Cylindrical Bore
