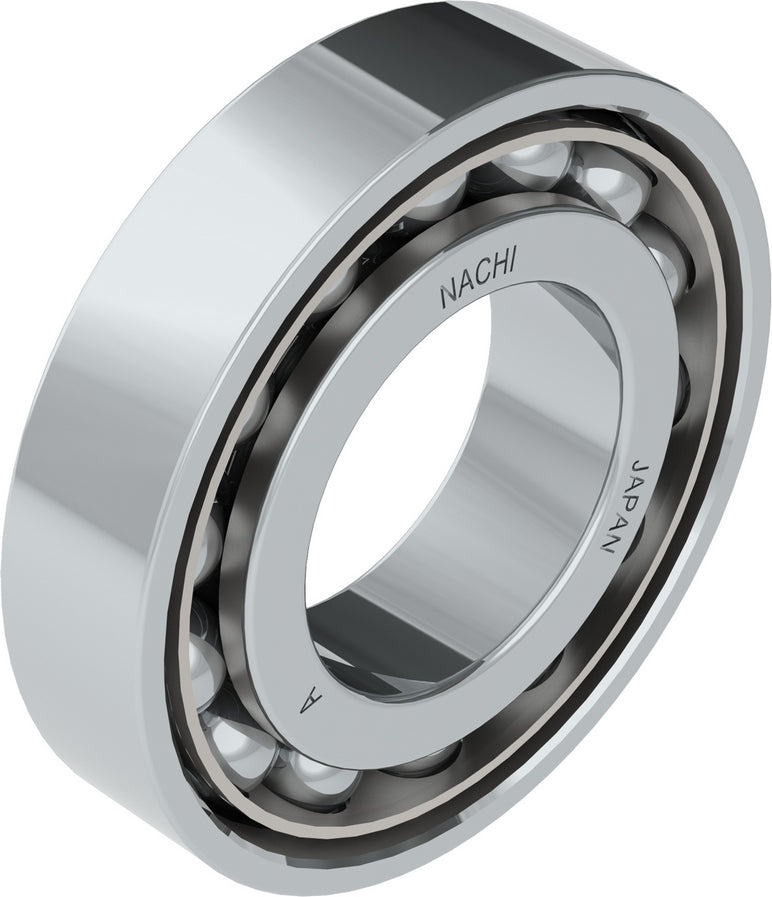

Nachi America 7317B 7300 Series Angular Contact Ball Bearing, 7317Bbnls

Nachi America 7317B 7300 Series Angular Contact Ball Bearing, 7317Bbnls

Dropship

SKU SKU:kpi113-7317B

Regular price $269.51 USD
Regular price Sale price $269.51 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Ball Bearings
country_of_origin: Japan
inner_diameter: 85 mm
manufacture: Nachi America
mpn: 7317B
outer_diameter: 180 mm
subcategory: Angular Contact Ball Bearing
upc: 4991893858594
weight: 10.80
width: 41 mm

Product Description

Angular Contact Ball Bearing. Balls and the inner ring and outer ring raceways are designed for contact in a specific contact angle, which means this type of bearing is suitable for composite loads (axial load and radial load). The contact angle means that axial force components are generated when a radial load is applied, so these are normally used in pairs at either end of a shaft.

Features

With angular contact ball bearings, the balls and the inner ring and outer ring raceways form a specific angle of contact. When used in a single configuration, axial load is limited to a single direction, this type of bearing is suitable for bearing composite loads made up of axial and radial loads. Since this type of bearing has a contact angle, axial components are generated when a radial load is applied. Becasue of this, this type of bearing is normally used in pairs at either end of a shaft.

Additional Information

Ball Material Steel
Dynamic Load Rating 150000 N
Width 41 mm
Universally (Flush) Ground No
Contact Angle 40°
Rolling Element Material Steel
Limiting Speed - Oil 4000 rpm
Bore Type Cylindrical Bore
Seals or Shields No
Limiting Speed - Grease 3000 rpm
Inner Ring Material Steel
Cage Material Steel
Bearing Type Angular Contact
ISO Precision Class P0
Outer Ring Material Steel
Static Load Rating [Max] 125000 N
Snap Ring No
Temperature Range [Max] 248 °F
EAN or UPC 4991893858594
