category:
Cylindrical & Needle Bearings
country_of_origin:
Japan
inner_diameter:
65 mm
manufacture:
Nachi America
mpn:
E5013XNNTS1
outer_diameter:
100 mm
subcategory:
Double Row Cylindrical Roller Sheave Bearing
upc:
4991893330915
weight:
2.86
width:
46 mm
Product Description

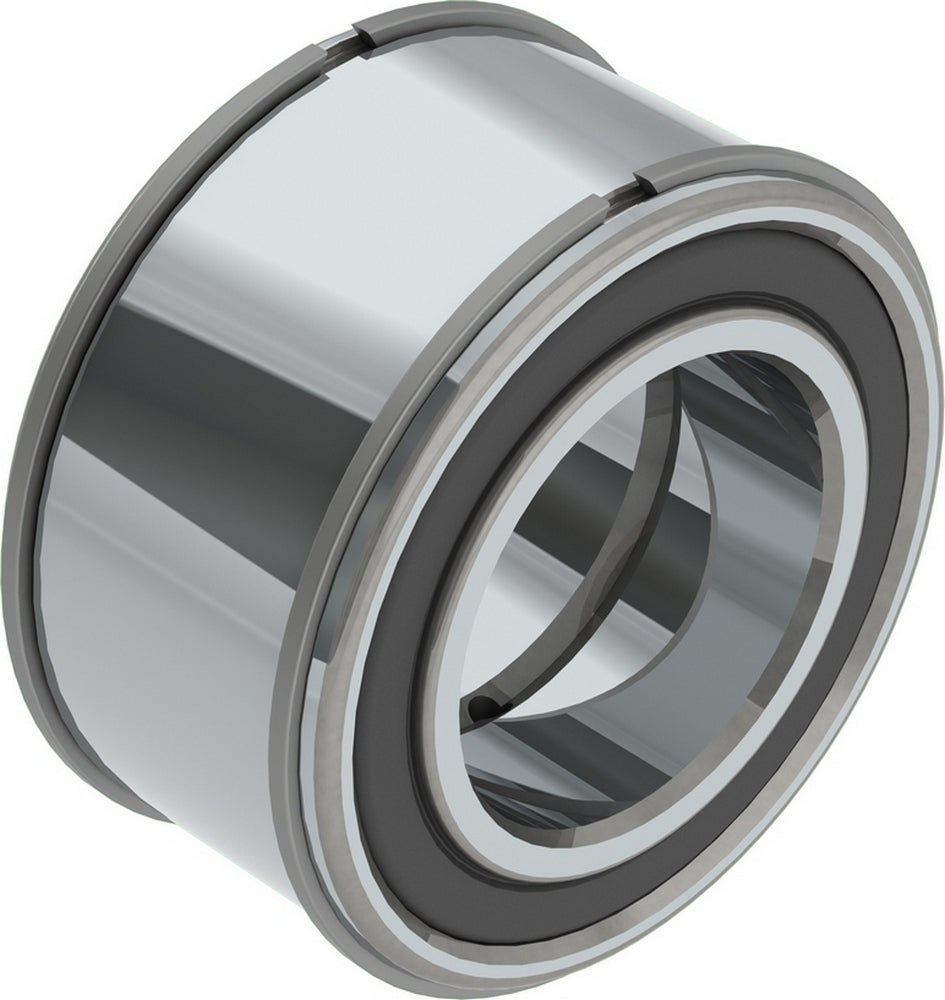

Nachi America - E5013XNNTS1 This bearing type is designed as a double row, full complement Cylindrical Roller bearing with ribs on both inner and outer rings. These bearings will sustain heavy radial load, and will handle moment load and will also take some axial load. Sheave bearings are suitable for a wide variety of uses in addition to sheaves. They are used for hoisting drum and wheel applications, and other applications which operate under heavy load at low speed.
Features
Easy to locate axially by using snap rings on both sides of the outer ring. Center groove and holes on the inner ring allow for easy relubrication.
Additional Information
Limiting Speed - Grease 1500 rpm
Dynamic Load Rating 128000 N
Rows of Balls Double
Snap Ring With Snap Ring
Static Load Rating 224000 N
Cage Material Steel
Outer Ring Material Steel
Inner Ring Material Steel
ISO Precision Class P0
Rolling Element Material Steel
Temperature Range [Max] 248 °F
Bore Type Cylindrical Bore
Seals or Shields 2 NBR Contact Seals
Radial Internal Clearance CN/C0
Grease Fill Mobilux EP2
EAN or UPC 4991893330915
