category:
Ball Bearings
country_of_origin:
Japan
inner_diameter:
80 mm
manufacture:
Nachi America
mpn:
SH6-6316ZZC3
outer_diameter:
170 mm
subcategory:
Ceramic Hybrid Deep Groove Ball Bearing
upc:
4991893858945
weight:
7.92
width:
39 mm

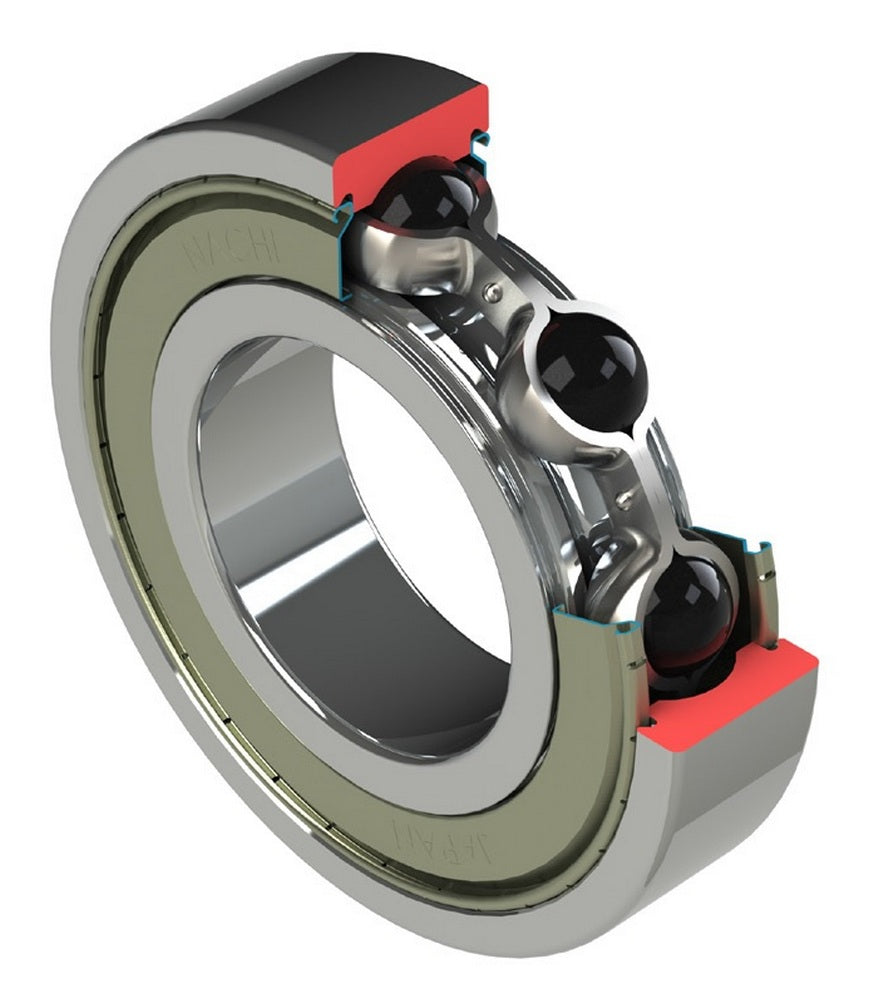

Product Description
NACHI Ceramic Hybrid Deep-Groove Ball Bearings have Silicone Nitride (ceramic) non-conductive rolling elements which prevent electric arcing damage that can occur from current passing through the bearing. This is primarily an issue in electric motors operated by frequency control. Ceramic Hybrid bearings also boast a 25% higher limiting speed due to the reduced weight of the balls compared to steel.
Features
Ceramic balls are non-conductive, lightweight, more rigid, and are more resistant to thermal expansion compared to steel. NACHI Ceramic Hybrid bearings are availible with 2 Shields (ZZE), C3 clearance, and Polyrex EM grease as standard.
Additional Information
Static Load Rating [Max] 108125 N
ISO Precision Class P0
Rolling Element Material Silicone Nitride
Bearing Type Deep Groove
Temperature Range [Max] 248 °F
Snap Ring No
Ball Material Silicone Nitride
Seals or Shields 2 Shields
Limiting Speed - Grease 5000 rpm
Grease Fill Polyrex EM
Outer Ring Material Steel
Dynamic Load Rating 153750 N
Width 39 mm
Inner Ring Material Steel
Bore Type Cylindrical Bore
Cage Material Steel
EAN or UPC 4991893858945
