Panasonic CS-HM24BAAU1 INTERIOS 1.5 Ton A-Coil Heat Pump

Product Description

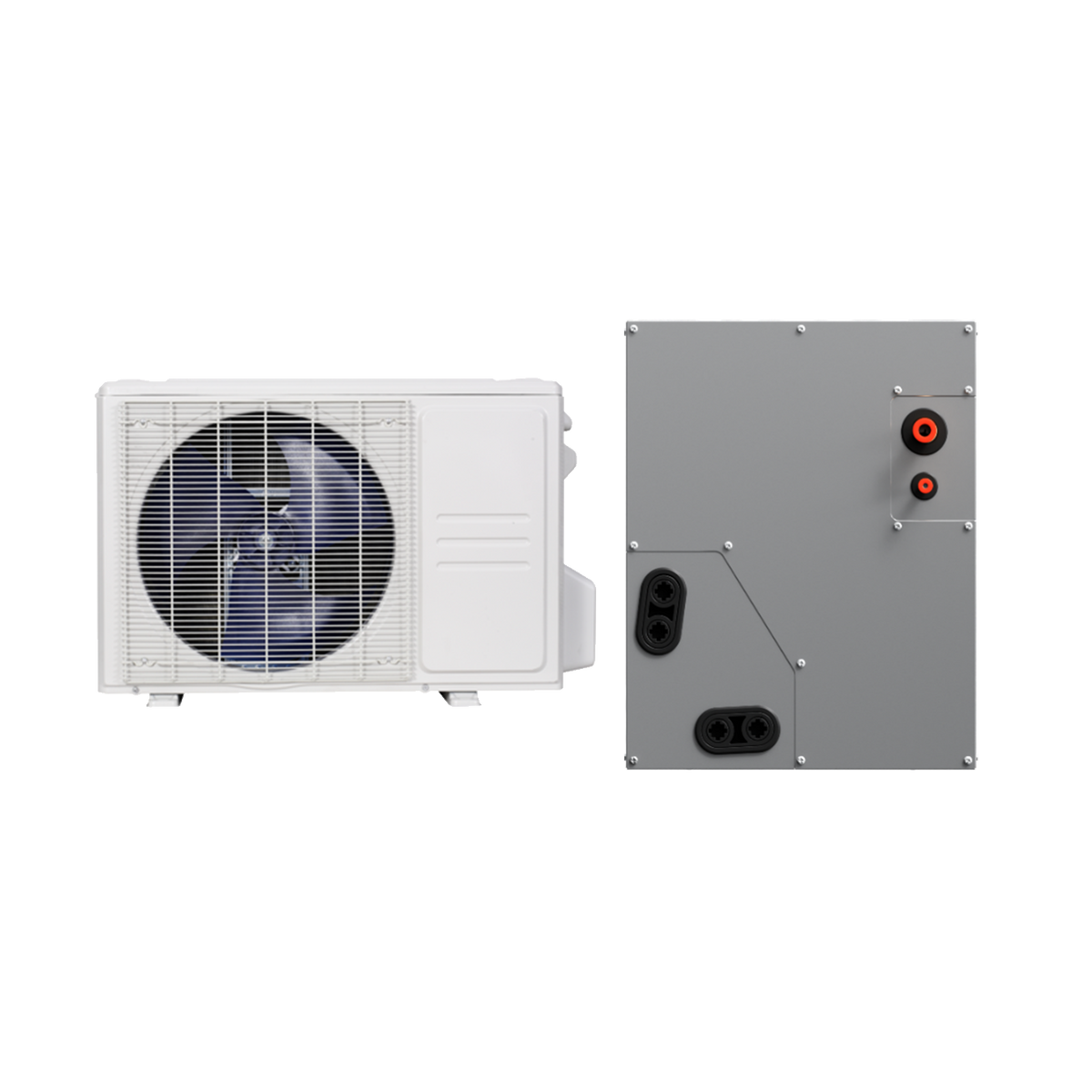

The Panasonic INTERIOS CS-HM24BAAU1 is a multi-position A-coil indoor unit designed for hybrid heating and cooling applications. When paired with the CU-HM18BAHU outdoor Extreme Heat Pump, it forms a 1.5-ton dual-fuel heat pump system that integrates with a new or existing furnace for whole-home heating and cooling. The system uses R454B refrigerant and is designed for cold-climate operation down to -22°F.

Key Features

• 1.5-ton hybrid A-coil heat pump system
• Compatible with CU-HM18BAHU 18,000 BTU/h outdoor heat pump
• Also compatible with CU-HM24BAHU 24,000 BTU/h outdoor heat pump
• Designed to integrate with a new or existing furnace
• Multi-position A-coil design
• R454B refrigerant
• ENERGY STAR Cold Climate certified
• Heating operation down to -22°F (-30°C)
• Built-in A2L refrigerant sensor
• Easy-maintenance design
• EXV electronic expansion valve
• Flared refrigerant connections

System Performance

• Indoor Unit: CS-HM24BAAU1
• Outdoor Unit: CU-HM18BAHU
• Rated Cooling Capacity: 18,000 BTU/h
• Cooling Capacity Range: 5,600–22,800 BTU/h
• Rated Heating Capacity at 47°F: 19,000 BTU/h
• Heating Capacity Range at 47°F: 5,600–22,800 BTU/h
• Heating Capacity at 17°F: 15,200 BTU/h
• Heating Capacity at 5°F: 18,000 BTU/h
• Maximum Heating Capacity at 5°F: 18,000 BTU/h
• COP at 5°F: 2.06
• Cooling Moisture Removal: 2.05 L/h

Efficiency Ratings

• SEER2: 16.1
• EER2: 11.7
• HSPF2 Region IV: 9.5
• HSPF2 Region V: 7.8
• COP: 3.30
• ENERGY STAR Certified: Yes

Indoor A-Coil Specifications

• Product Type: Indoor A-Coil Heat Pump Unit
• Installation Type: Multi-position
• Indoor Power Supply: 24V, 1 Phase, 60Hz
• Throttle Type: EXV
• Refrigerant Sensor: A2L sensor included
• Indoor Dimensions (W x D x H): 14.49 x 21.00 x 17.99 in
• Indoor Dimensions (W x D x H): 368 x 533.4 x 457 mm
• Net Weight: 41.89 lb (19 kg)
• Gross Weight: 49.60 lb (22.5 kg)
• Package Dimensions (W x D x H): 17.52 x 25.39 x 20.67 in
• Package Dimensions (W x D x H): 445 x 645 x 525 mm

Outdoor Heat Pump Specifications

• Outdoor Unit: CU-HM18BAHU
• Compressor Type: Rotary
• Compressor Model: KTM240D46UKT2
• Refrigerant: R454B
• Refrigerant Oil: VG74
• Refrigerant Oil Charge: 620 mL
• Maximum Outdoor Airflow: 1,766 CFM
• Outdoor Noise Level: 58 dBA
• Outdoor Dimensions (W x D x H): 35.04 x 13.46 x 26.50 in
• Outdoor Dimensions (W x D x H): 890 x 342 x 673 mm
• Outdoor Net Weight: 101.41 lb (46 kg)
• Outdoor Gross Weight: 109.13 lb (49.5 kg)
• Outdoor Package Dimensions (W x D x H): 39.17 x 15.67 x 29.13 in
• Outdoor Package Dimensions (W x D x H): 995 x 398 x 740 mm

Electrical Specifications

• Indoor Power Supply: 24V, 1 Phase, 60Hz
• Outdoor Power Supply: 208/230V, 1 Phase, 60Hz
• Outdoor MCA: 16 A
• Outdoor MOP: 20 A
• Compressor RLA: 10.5 A
• Outdoor Fan Motor RLA: 0.9 A
• Communication Wiring: AWG 20-2
• Cooling System Power Input: 1,538 W rated (530–2,120 W)
• Heating System Power Input: 1,687 W rated (350–2,040 W)

Refrigerant and Piping Specifications

• Refrigerant: R454B
• Liquid Line Size: 3/8 in (9.52 mm)
• Gas Line Size: 3/4 in (19 mm)
• Connection Method: Flared
• Indoor Throttle: EXV
• Outdoor Throttle: EXV
• Maximum Piping Length: 98 ft (30 m)
• Maximum Height Difference: 66 ft (20 m)
• Maximum Pre-Charged Length: 24.6 ft (7.5 m)
• Factory Refrigerant Charge: 74.08 oz (2.1 kg)
• Additional Refrigerant Charge: 0.7 oz/ft (65 g/m)

Operating Conditions

• Cooling Indoor Operating Range: 60°F to 90°F (16°C to 32°C)
• Cooling Outdoor Operating Range: -22°F to 122°F (-30°C to 50°C)
• Heating Indoor Operating Range: 32°F to 86°F (0°C to 30°C)
• Heating Outdoor Operating Range: -22°F to 75°F (-30°C to 24°C)

Application

• Hybrid heating and cooling
• Dual-fuel HVAC system
• Central ducted whole-home heating and cooling
• Designed to integrate with a new or existing furnace
• Multi-position A-coil installation
