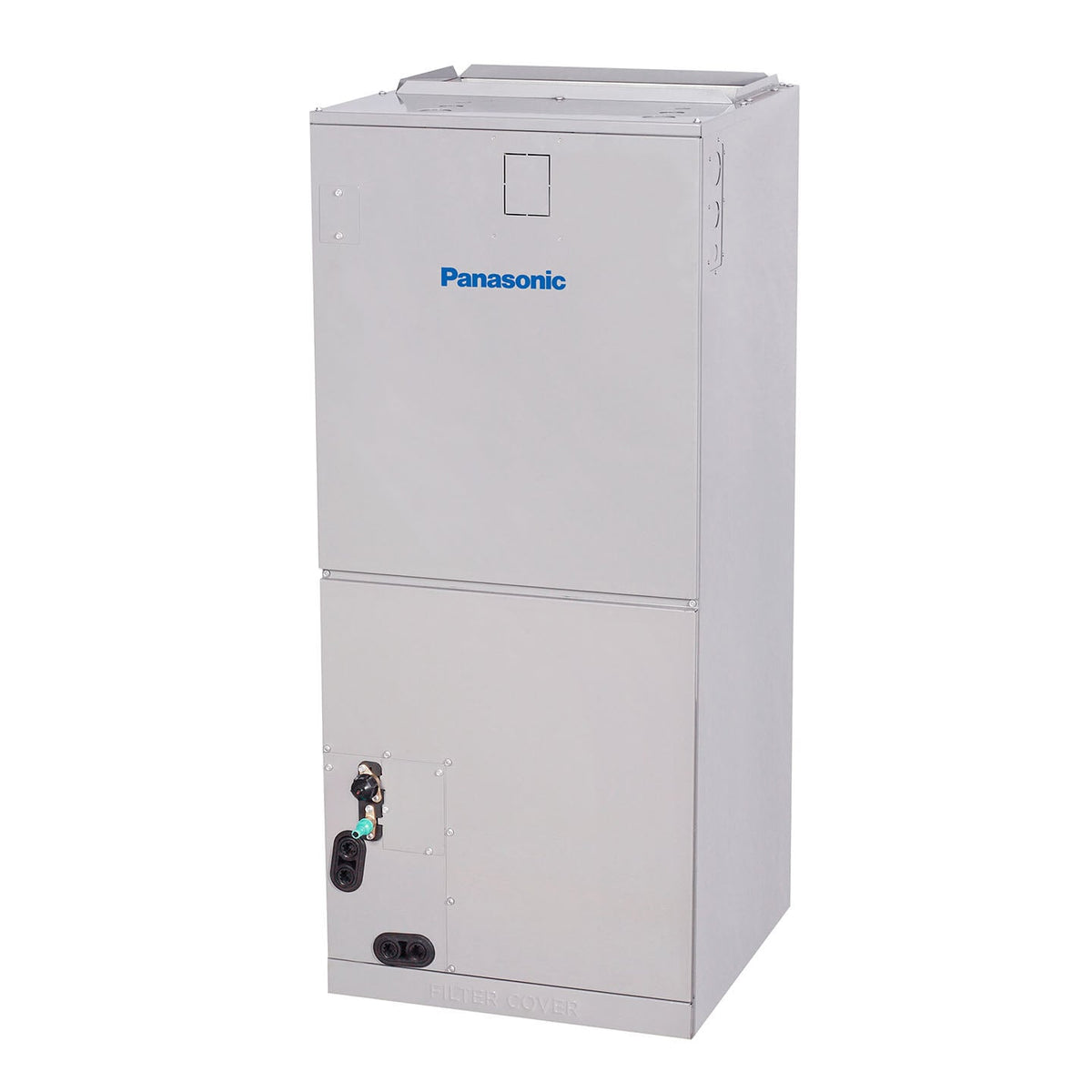

Panasonic CS-HM30BAHU INTERIOS 2.5 Ton Multi-Position Air Handler

Product Description

The Panasonic INTERIOS CS-HM30BAHU is a 2.5-ton multi-position air handler designed for the INTERIOS central heat pump system. It pairs with the CU-M30BAHU outdoor inverter heat pump condenser to provide whole-home central ducted heating and cooling using R454B refrigerant.

The air handler supports flexible multi-position installation, constant airflow operation, wired and wireless controls, and optional auxiliary electric heat kits. The complete M30BAHU system provides 30,000 BTU/h rated cooling capacity and 31,000 BTU/h rated heating capacity, with heating operation down to -13°F (-25°C).

Key Features

• 2.5-ton INTERIOS central heat pump air handler
• Compatible outdoor unit: CU-M30BAHU
• 30,000 BTU/h rated cooling capacity
• 31,000 BTU/h rated heating capacity
• 19,100 BTU/h heating capacity at 5°F
• COP of 2.0 at 5°F
• R454B refrigerant system
• ENERGY STAR certified system
• Multi-position installation capability
• Inverter heat pump condenser compatibility
• Optional auxiliary electric heat kits
• Constant airflow operation up to 0.80 in. W.G.
• Adaptive control system
• Aluminum heat-exchanger coil
• Wired and wireless remote control options
• Third-party 24V thermostat compatibility
• Quiet indoor operation

Performance Specifications

• Model: CS-HM30BAHU
• Series: INTERIOS Regular Heat Series
• System Type: Central Ducted Heat Pump
• Nominal Capacity: 2.5 Ton
• Rated Cooling Capacity: 30,000 BTU/h
• Cooling Capacity Range: 10,400–34,000 BTU/h
• Rated Heating Capacity at 47°F: 31,000 BTU/h
• Heating Capacity Range at 47°F: 6,400–32,000 BTU/h
• Heating Capacity at 5°F: 19,100 BTU/h
• COP at 5°F: 2.0
• Moisture Removal: 3.57 L/h
• SEER2: 17.0
• EER2: 10.7
• HSPF2 Region IV: 8.5
• HSPF2 Region V: 6.6
• COP: 3.50

Indoor Airflow & Noise

• Indoor Airflow: 988.85 / 894.67 / 806.38 / 712.21 CFM
• Fan Speeds: High / Medium / Low
• Indoor Noise Level: 46 / 42 / 29 dBA
• Constant Airflow Capability: Up to 0.80 in. W.G.

Electrical Specifications

• Indoor Power Supply: 115/208/230V, 1 Phase, 60Hz
• Outdoor Power Supply: 208/230V, 1 Phase, 60Hz
• Outdoor MCA: 22.5 A
• Outdoor MOP: 25 A
• Indoor Fan Motor: 250 W
• Communication Wiring: AWG 20-2

System Power Input

• Heating Power Input: 2,595 W rated
• Heating Power Input Range: 455–2,550 W
• Cooling Power Input: Refer to applicable system operating conditions and submittal data.

Indoor Unit Specifications

• Dimensions (W × D × H): 21.02 × 21.02 × 49.02 in
• Dimensions (W × D × H): 534 × 534 × 1,245 mm
• Net Weight: 128.97 lb / 58.5 kg
• Gross Weight: 153.44 lb / 69.6 kg
• Package Dimensions (W × D × H): 26.57 × 24.41 × 52.56 in
• Package Dimensions: 675 × 620 × 1,335 mm

Refrigeration Specifications

• Refrigerant: R454B
• Expansion Device: Electronic Expansion Valve (EXV)
• Liquid Pipe Size: 3/8 in
• Gas Pipe Size: 3/4 in
• Connection Method: Flared
• Maximum Piping Length: 164 ft / 50 m
• Maximum Height Difference: 82 ft / 25 m
• Maximum Pre-Charged Length: 24.6 ft / 7.5 m
• Additional Refrigerant: 0.7 oz/ft / 65 g/m

Operating Conditions

• Cooling Operating Range: -13°F to 122°F (-25°C to 50°C)
• Heating Operating Range: -13°F to 75°F (-25°C to 24°C)
• Heating Capacity at 5°F: 19,100 BTU/h

Compatible Outdoor Unit

• CU-M30BAHU – INTERIOS 2.5 Ton Central Heat Pump Outdoor Unit

Installation & Configuration

• Installation Type: Multi-position
• Configuration: Central ducted
• Airflow: Constant airflow operation up to 0.80 in. W.G.
• Auxiliary Heat: Optional electric heat kits available

Control Options

• Wired two-way communication controller
• Wired controller with built-in Wi-Fi option
• Wireless remote controller
• Third-party 24V thermostat

Application

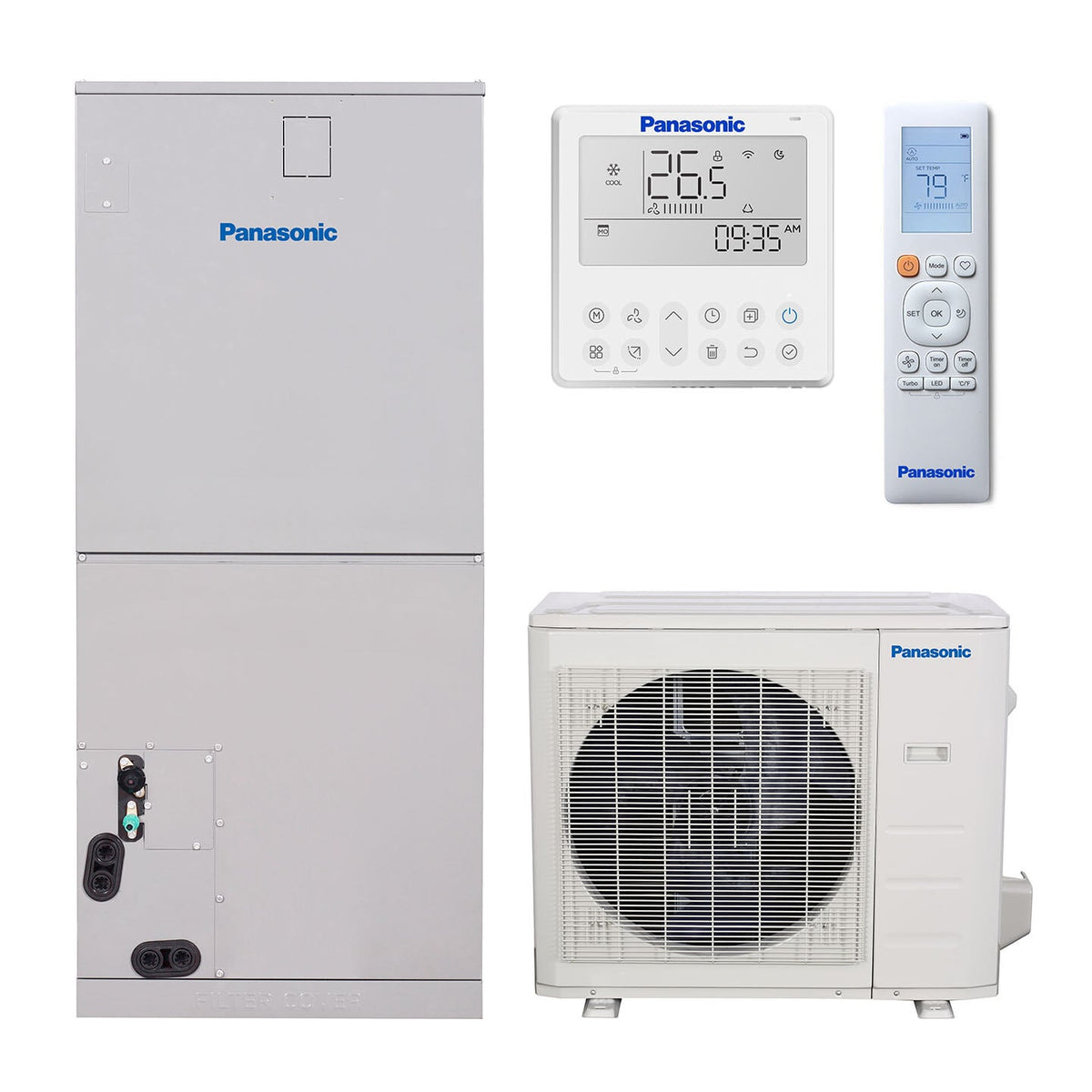

The CS-HM30BAHU is designed for whole-home central ducted heating and cooling. When paired with the CU-M30BAHU outdoor condenser, it forms Panasonic's 2.5-ton INTERIOS Regular Heat Central Heat Pump system. The complete system provides 30,000 BTU/h rated cooling and 31,000 BTU/h rated heating capacity and is designed for heating operation down to -13°F (-25°C).

System Certification & Refrigerant

The Panasonic INTERIOS M30BAHU system is ENERGY STAR certified and uses R454B refrigerant. Panasonic identifies the system as an inverter heat pump with a multi-position air handler and optional auxiliary electric heat capability.
