Product Description

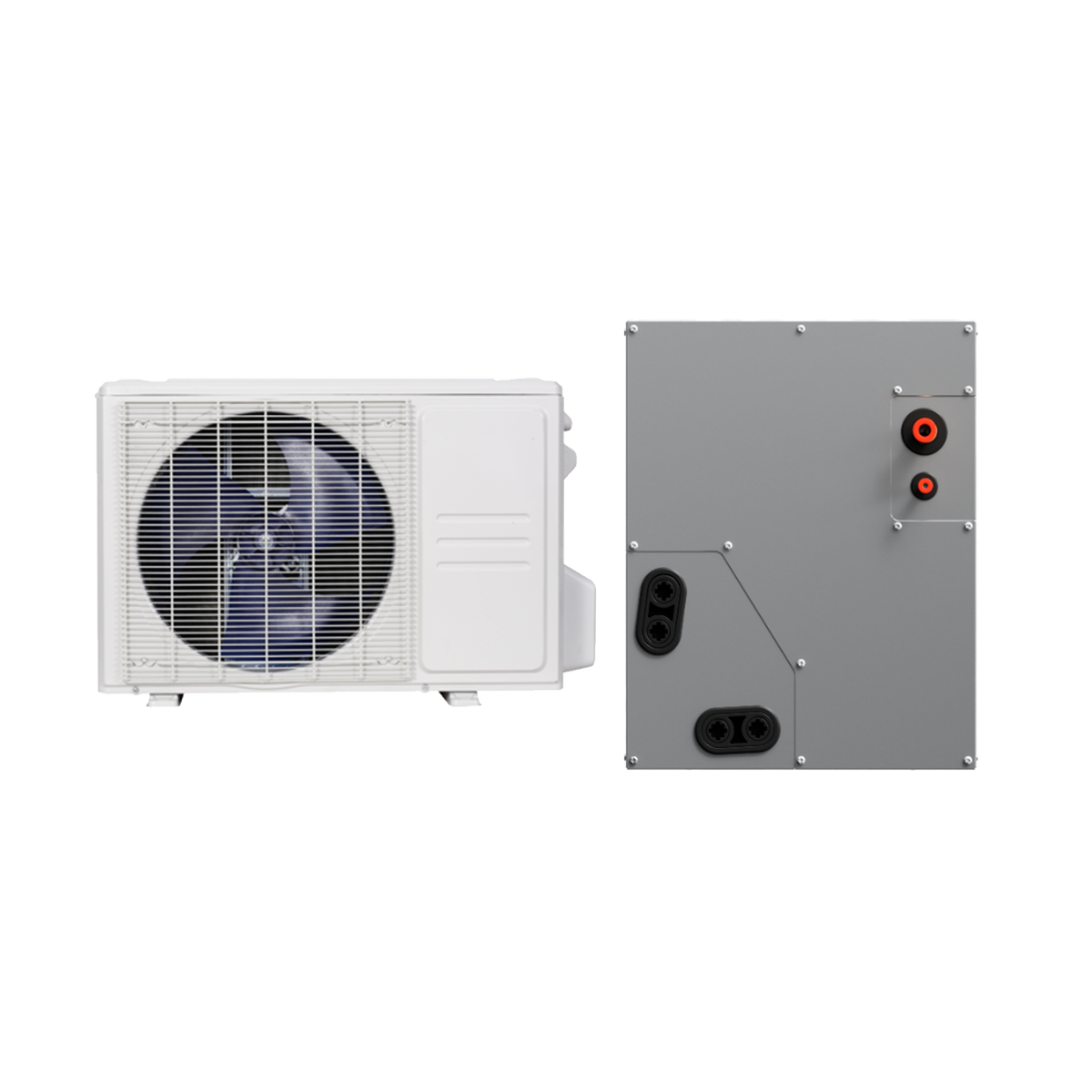

The Panasonic INTERIOS CS-HM36BAAU1 is a multi-position A-coil indoor unit designed for hybrid heating and cooling applications. It integrates with a new or existing furnace to provide whole-home heating and cooling. The A-coil is compatible with either the CU-HM30BAHU 2.5-ton outdoor heat pump or the CU-HM36BAHU 3-ton outdoor heat pump and uses R454B refrigerant.
Key Features
- 2.5–3 ton hybrid A-coil heat pump system
- Compatible with CU-HM30BAHU and CU-HM36BAHU outdoor units
- Designed to integrate with a new or existing furnace
- Multi-position installation design
- R454B refrigerant
- ENERGY STAR Cold Climate certified
- Heating operation down to -22°F (-30°C)
- Built-in A2L refrigerant sensor
- Easy-maintenance design
- EXV electronic expansion valve
- Flared refrigerant connections
- Dual-fuel central ducted application
Indoor A-Coil Specifications
- Indoor Model: CS-HM36BAAU1
- Product Type: Cased A-Coil Heat Pump
- System Application: Hybrid / Dual-Fuel Heating and Cooling
- Installation: Multi-position
- Indoor Power Supply: 24V, Single Phase, 60Hz
- Indoor Dimensions (W x D x H): 14.49 x 21.00 x 17.99 in
- Indoor Dimensions (W x D x H): 368 x 533.4 x 457 mm
- Package Dimensions (W x D x H): 17.52 x 25.39 x 20.67 in
- Package Dimensions (W x D x H): 445 x 645 x 525 mm
- Net Weight: 56.88 lb (25.8 kg)
- Gross Weight: 64.81 lb (29.4 kg)
- Throttle Type: EXV
- Refrigerant Sensor: A2L sensor included
Configuration 1 – 2.5 Ton System
- Outdoor Unit: CU-HM30BAHU
- Rated Cooling Capacity: 30,000 BTU/h
- Cooling Capacity Range: 12,600–34,800 BTU/h
- Rated Heating Capacity at 47°F: 30,000 BTU/h
- Heating Capacity Range at 47°F: 9,300–35,900 BTU/h
- Heating Capacity at 17°F: 23,400 BTU/h
- Heating Capacity at 5°F: 30,400 BTU/h
- COP at 5°F: 1.8
- Cooling Moisture Removal: 4.56 L/h
- SEER2: 15.3
- EER2: 10.0
- HSPF2 Region IV: 9.3
- HSPF2 Region V: 7.7
- COP: 3.0
Configuration 2 – 3 Ton System
- Outdoor Unit: CU-HM36BAHU
- Rated Cooling Capacity: 36,000 BTU/h
- Cooling Capacity Range: 11,400–39,000 BTU/h
- Rated Heating Capacity at 47°F: 38,000 BTU/h
- Heating Capacity Range at 47°F: 11,500–46,000 BTU/h
- SEER2: 15.2
- EER2: 10.2
- HSPF2 Region IV: 9.0
- HSPF2 Region V: 7.2
- COP: 3.1
- Outdoor Noise Level: 64 dBA
Outdoor Unit – CU-HM30BAHU
- Compressor Type: Rotary
- Compressor Model: MTH356UKRC8FQL
- Refrigerant: R454B
- Refrigerant Oil: HAF68D1A
- Refrigerant Oil Charge: 1,300 mL
- Maximum Outdoor Airflow: 3,002 CFM
- Outdoor Noise Level: 64 dBA
- Dimensions (W x D x H): 37.24 x 16.14 x 31.89 in
- Dimensions (W x D x H): 946 x 410 x 810 mm
- Net/Gross Weight: 164.02 / 174.60 lb
- Net/Gross Weight: 74.4 / 79.2 kg
Electrical Specifications – CU-HM30BAHU
- Outdoor Power Supply: 208/230V, Single Phase, 60Hz
- Outdoor MCA: 29.5 A
- Outdoor MOP: 30 A
- Compressor RLA: 22.4 A
- Outdoor Fan Motor RLA: 1.5 A
- Communication Wiring: AWG 20-2
- Cooling System Power Input: 3,000 W rated (1,160–3,680 W)
- Heating System Power Input: 2,931 W rated (540–3,590 W)
Refrigerant and Piping – CU-HM30BAHU
- Refrigerant: R454B
- Liquid Line Size: 3/8 in (9.52 mm)
- Gas Line Size: 3/4 in (19 mm)
- Connection Method: Flared
- Indoor Throttle: EXV
- Outdoor Throttle: EXV
- Maximum Piping Length: 164 ft (50 m)
- Maximum Height Difference: 82 ft (25 m)
- Maximum Pre-Charged Length: 24.6 ft (7.5 m)
- Factory Refrigerant Charge: 105.82 oz (3 kg)
- Additional Refrigerant: 0.7 oz/ft (65 g/m)
Operating Conditions
- Cooling Outdoor Operating Range: -22°F to 122°F (-30°C to 50°C)
- Heating Outdoor Operating Range: -22°F to 75°F (-30°C to 24°C)
- Cold Climate Heating Operation: Down to -22°F (-30°C)
Application
- Hybrid heating and cooling
- Dual-fuel HVAC system
- Central ducted whole-home heating and cooling
- Integration with new or existing furnace
- Multi-position A-coil installation
