Product Description

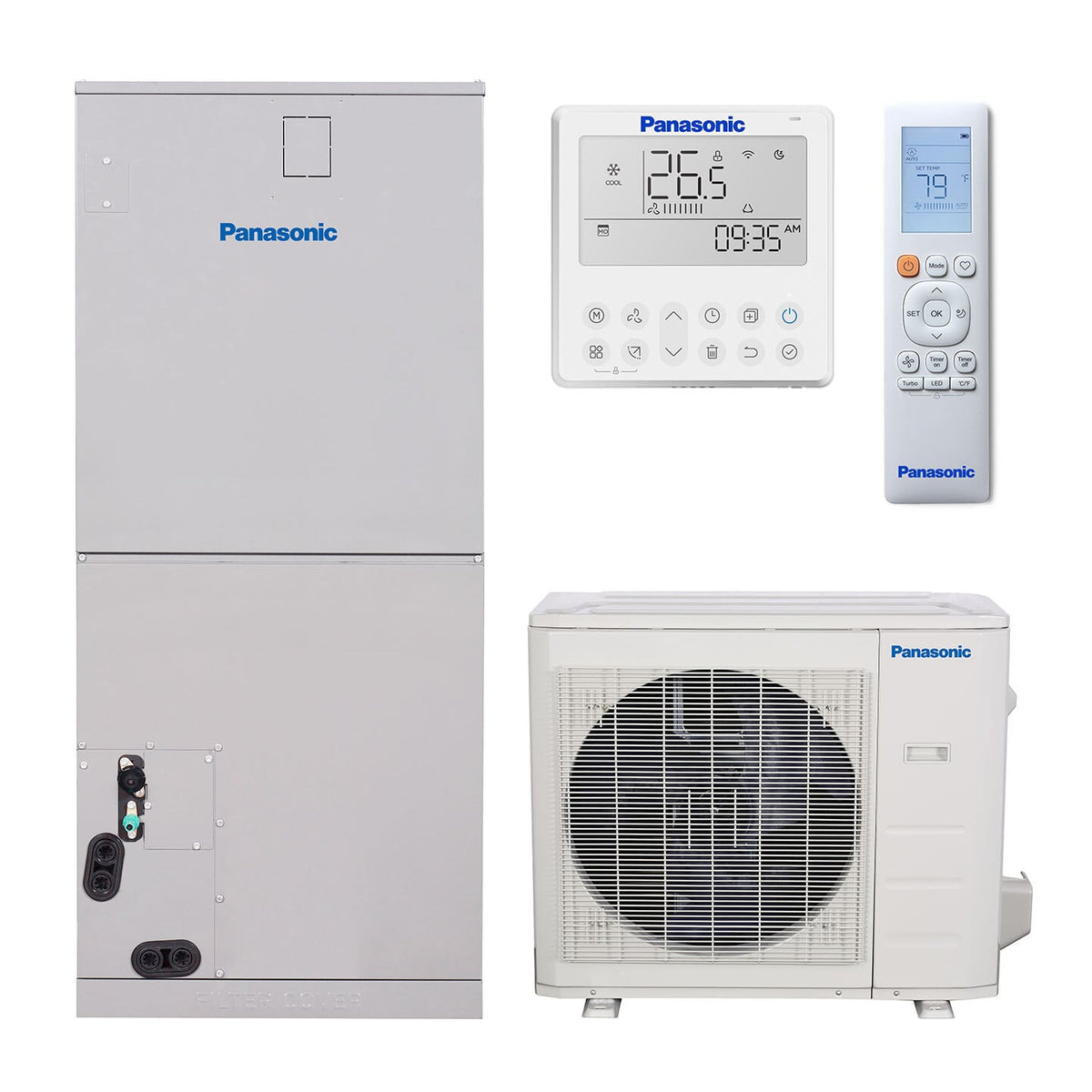

The Panasonic INTERIOS CS-HM48BAHU is a 4-ton multi-position air handler designed for central, whole-home heating and cooling. When paired with the CU-M48BAHU outdoor condenser, the system provides 48,000 BTU/h rated cooling and heating capacity. It features inverter heat pump technology, R454B refrigerant, flexible installation configurations, and optional auxiliary electric heat kits.
Key Features
- 4-ton central heat pump system
- 48,000 BTU/h rated cooling and heating capacity
- Multi-position air handler for flexible installation
- Inverter heat pump condenser
- R454B refrigerant
- Heating operation down to -13°F (-25°C)
- ENERGY STAR certified system
- Wired and wireless remote control options
- Optional auxiliary electric heat kits
- Designed for central ducted, whole-home comfort
Performance Specifications
- Indoor Unit Model: CS-HM48BAHU
- Compatible Outdoor Unit: CU-M48BAHU
- Rated Cooling Capacity: 48,000 BTU/h
- Cooling Capacity Range: 16,600–49,900 BTU/h
- Rated Heating Capacity at 47°F: 48,000 BTU/h
- Heating Capacity Range at 47°F: 15,300–49,500 BTU/h
- Heating Capacity at 5°F: 38,000 BTU/h
- COP at 5°F: 2.0
- Cooling Moisture Removal: 5.29 L/h
- Cooling Operating Range: -13°F to 122°F (-25°C to 50°C)
- Heating Operating Range: -13°F to 75°F (-25°C to 24°C)
Efficiency Ratings
- SEER2: 16.0
- EER2: 10.0
- HSPF2 Region IV: 8.5
- HSPF2 Region V: 7.2
- COP: 3.45

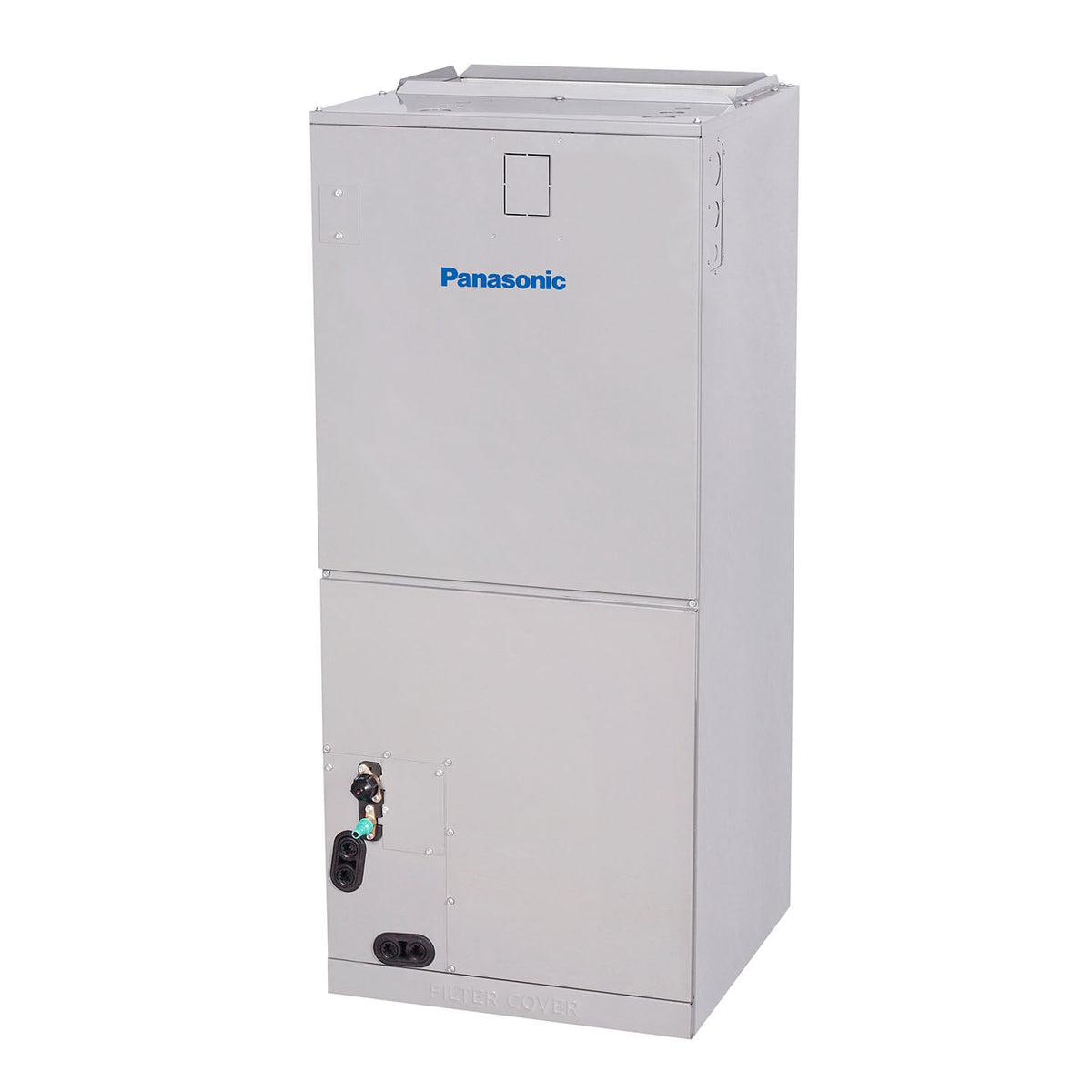

Air Handler Specifications
- Indoor Airflow: 1,600.99 / 1,471.50 / 1,283.15 CFM (listed settings)
- Indoor Noise Level: 53 / 50 / 44 dBA (available settings)
- Indoor Fan Motor: 750 W
- Indoor Fan Motor RLA: 7.8 A
- Indoor Dimensions (W x D x H): 21.02 x 24.49 x 52.99 in
- Indoor Dimensions (W x D x H): 534 x 622 x 1,346 mm
- Indoor Net Weight: 162.92 lb (73.9 kg)
- Indoor Gross Weight: 190.92 lb (86.6 kg)
- Package Dimensions (W x D x H): 27.95 x 26.77 x 56.50 in
- Package Dimensions (W x D x H): 710 x 680 x 1,435 mm
Outdoor Condenser Specifications
- Outdoor Unit Model: CU-M48BAHU
- Compressor Type: Rotary
- Compressor Model: MTH550UKPC8FU
- Refrigerant: R454B
- Refrigerant Oil: HAF68D1C
- Refrigerant Oil Charge: 1,800 mL
- Maximum Outdoor Airflow: 3,037.1 CFM
- Outdoor Noise Level: 65 dBA
- Outdoor Dimensions (W x D x H): 38.58 x 16.34 x 38.39 in
- Outdoor Dimensions (W x D x H): 980 x 415 x 975 mm
- Outdoor Net Weight: 192.90 lb (87.5 kg)
- Outdoor Gross Weight: 224.21 lb (101.7 kg)
- Outdoor Package Dimensions (W x D x H): 45.08 x 19.68 x 42.52 in
- Outdoor Package Dimensions (W x D x H): 1,145 x 500 x 1,080 mm
Electrical Specifications
- Indoor Power Supply: 115/208/230V, 1 Phase, 60Hz
- Outdoor Power Supply: 208/230V, 1 Phase, 60Hz
- Indoor MCA: 14.5 A at 115V / 11.0 A at 208/230V
- Indoor MOP: 15 A
- Outdoor MCA: 36 A
- Outdoor MOP: 40 A
- Compressor RLA: 27 A
- Outdoor Fan Motor RLA: 2 A
- Outdoor Fan Motor: 250 W
- System Power Input – Cooling: 4,800 W (1,400–5,350 W)
- System Power Input – Heating: 4,085 W (1,025–4,650 W)
- Communication Wiring: AWG 20-2
System Compatibility
- Indoor Unit: CS-HM48BAHU
- Outdoor Unit: CU-M48BAHU
- System Type: INTERIOS 4 Ton Regular Heat Central Heat Pump
- Application: Central ducted, whole-home heating and cooling
- Refrigerant: R454B
