Product Description

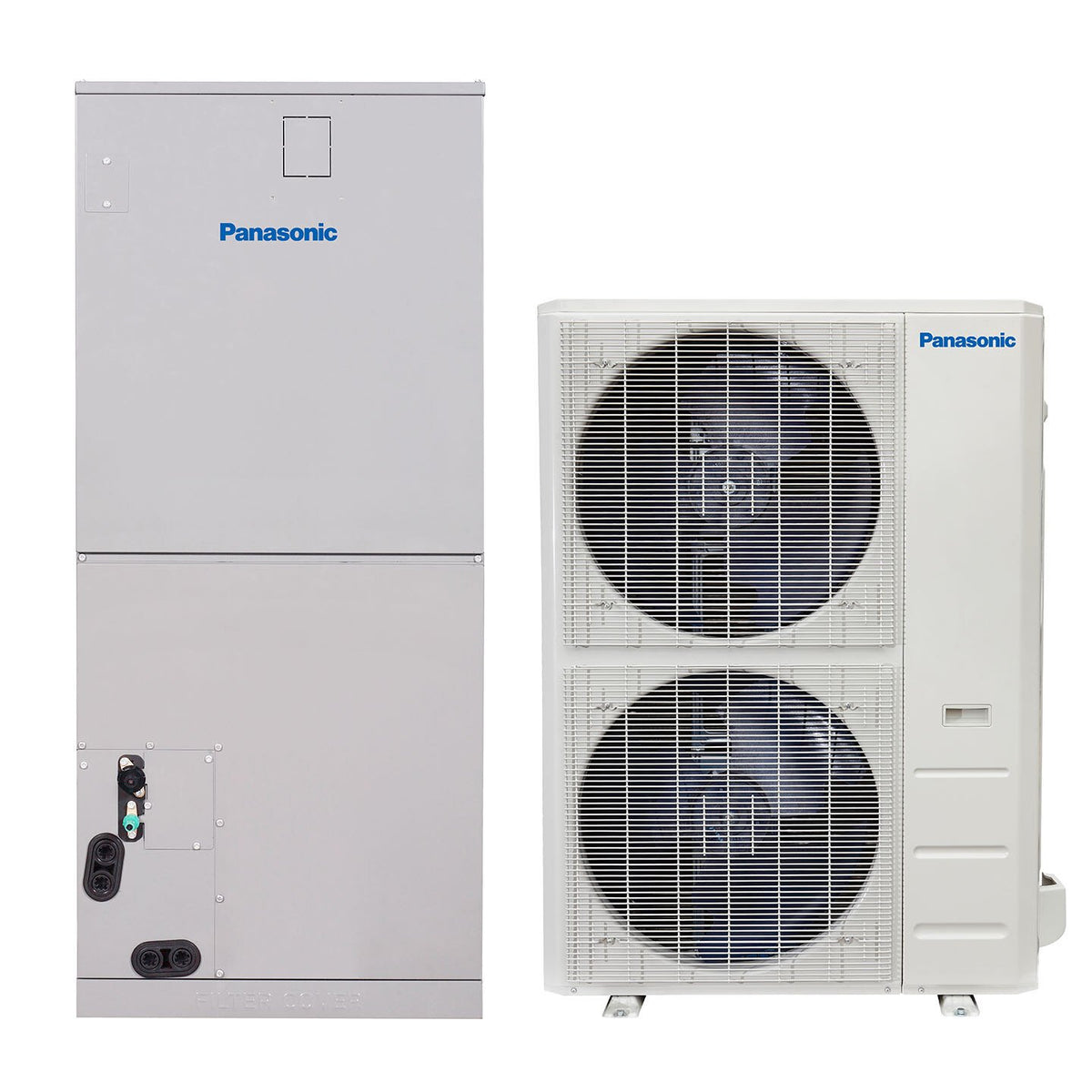

The Panasonic INTERIOS CS-HM60BAHU is a 5-ton multi-position air handler designed for central, whole-home heating and cooling applications. Paired with the CU-M60BAHU outdoor condenser, this system delivers 54,000 BTU/h rated heating and cooling capacity. It features inverter heat pump technology, R454B refrigerant, flexible installation options, and compatibility with optional auxiliary electric heat kits.
Key Features
- 5-ton central heat pump system
- 54,000 BTU/h rated heating and cooling capacity
- Multi-position air handler for flexible installation
- Inverter heat pump condenser
- R454B refrigerant
- Heating operation down to -13°F (-25°C)
- ENERGY STAR certified system
- Wired and wireless remote control options
- Quiet operation
- Optional auxiliary electric heat kits available
- Designed for central ducted, whole-home comfort
Performance Specifications
- Indoor Unit Model: CS-HM60BAHU
- Outdoor Unit Model: CU-M60BAHU
- Rated Cooling Capacity: 54,000 BTU/h
- Rated Heating Capacity: 54,000 BTU/h
- Heating Capacity at 5°F: 38,000 BTU/h
- COP at 5°F: 1.8
Efficiency Ratings
- SEER2: 15.2
- EER2: 8.6
- HSPF2 Region IV: 8.4
- HSPF2 Region V: 6.8

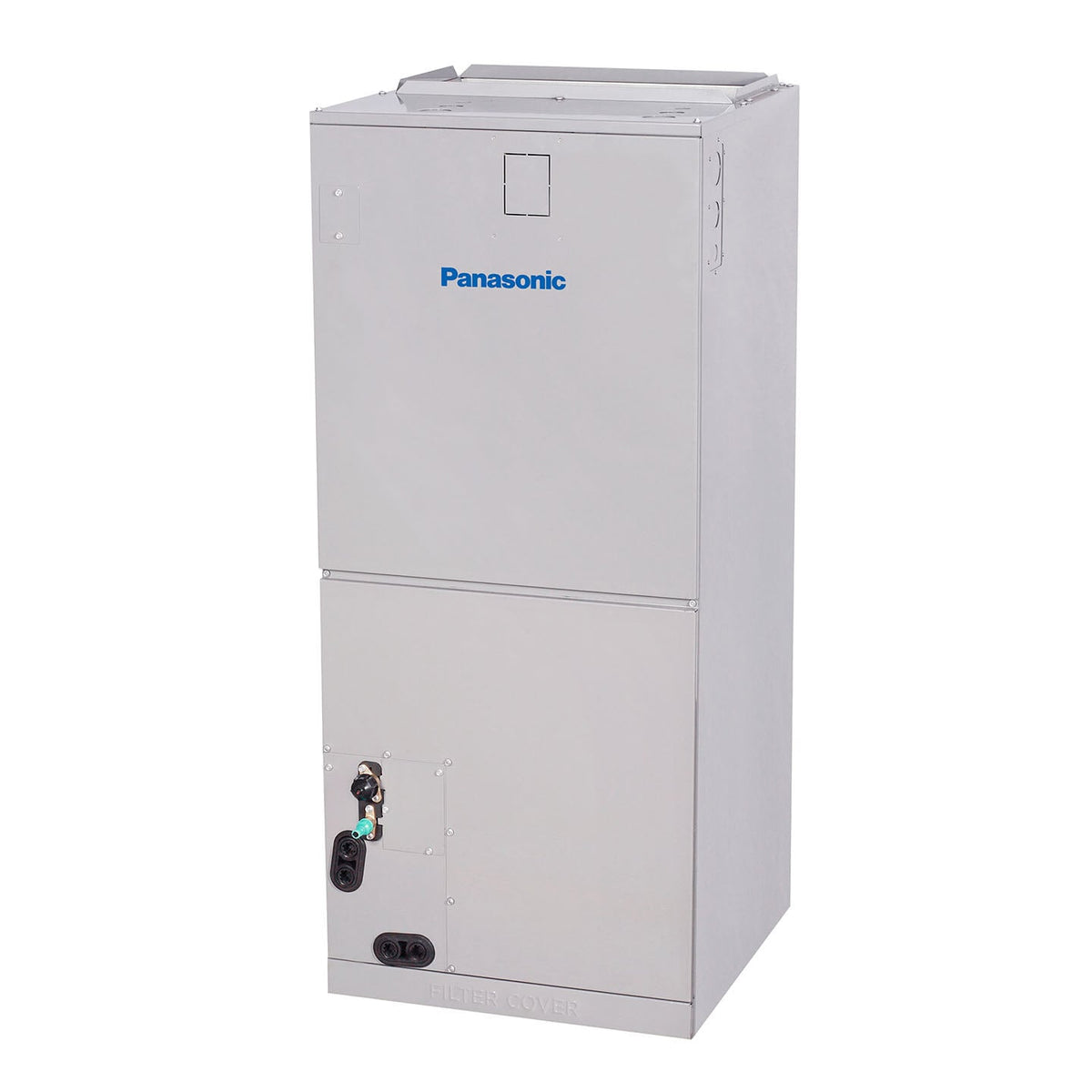

Air Handler Specifications
- Indoor Airflow: 1,807.00 / 1,583.33 / 1,359.67 CFM (listed settings)
- Indoor Noise Level: 56 / 52 / 49 / 34.5 dBA (listed settings)
- Indoor Dimensions (W x D x H): 21.02 x 24.49 x 52.99 in
- Indoor Dimensions (W x D x H): 534 x 622 x 1,346 mm
- Indoor Net Weight: 162.92 lb (73.9 kg)
- Indoor Gross Weight: 190.92 lb (86.6 kg)
- Indoor Package Dimensions (W x D x H): 27.95 x 26.77 x 56.50 in
- Indoor Package Dimensions (W x D x H): 710 x 680 x 1,435 mm
Outdoor Condenser Specifications
- Outdoor Unit Model: CU-M60BAHU
- Refrigerant: R454B
- Outdoor Dimensions (H x W x D): 38-13/32 x 38-19/32 x 16-11/32 in
- Outdoor Dimensions (H x W x D): 975 x 980 x 415 mm
- Outdoor Net Weight: 192.9 lb (87.5 kg)
Electrical Specifications
- Indoor Power Supply: 115/208/230V, 1 Phase, 60Hz
- Outdoor Power Supply: 208/230V, 1 Phase, 60Hz
System Compatibility
- Indoor Unit: CS-HM60BAHU
- Outdoor Unit: CU-M60BAHU
- System Type: INTERIOS 5 Ton Regular Heat Central Heat Pump
- Application: Central ducted, whole-home heating and cooling
- Refrigerant: R454B
