Product Description

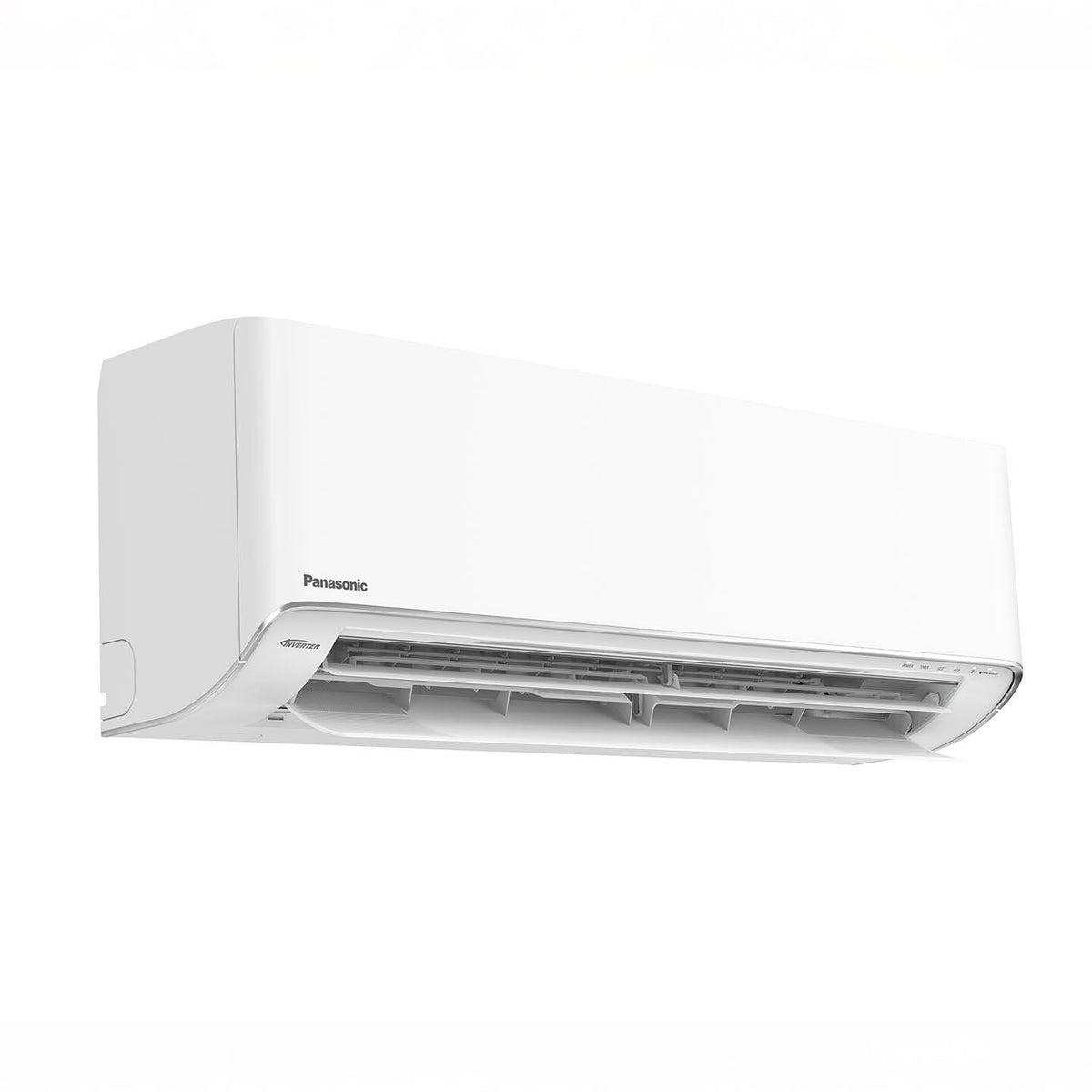

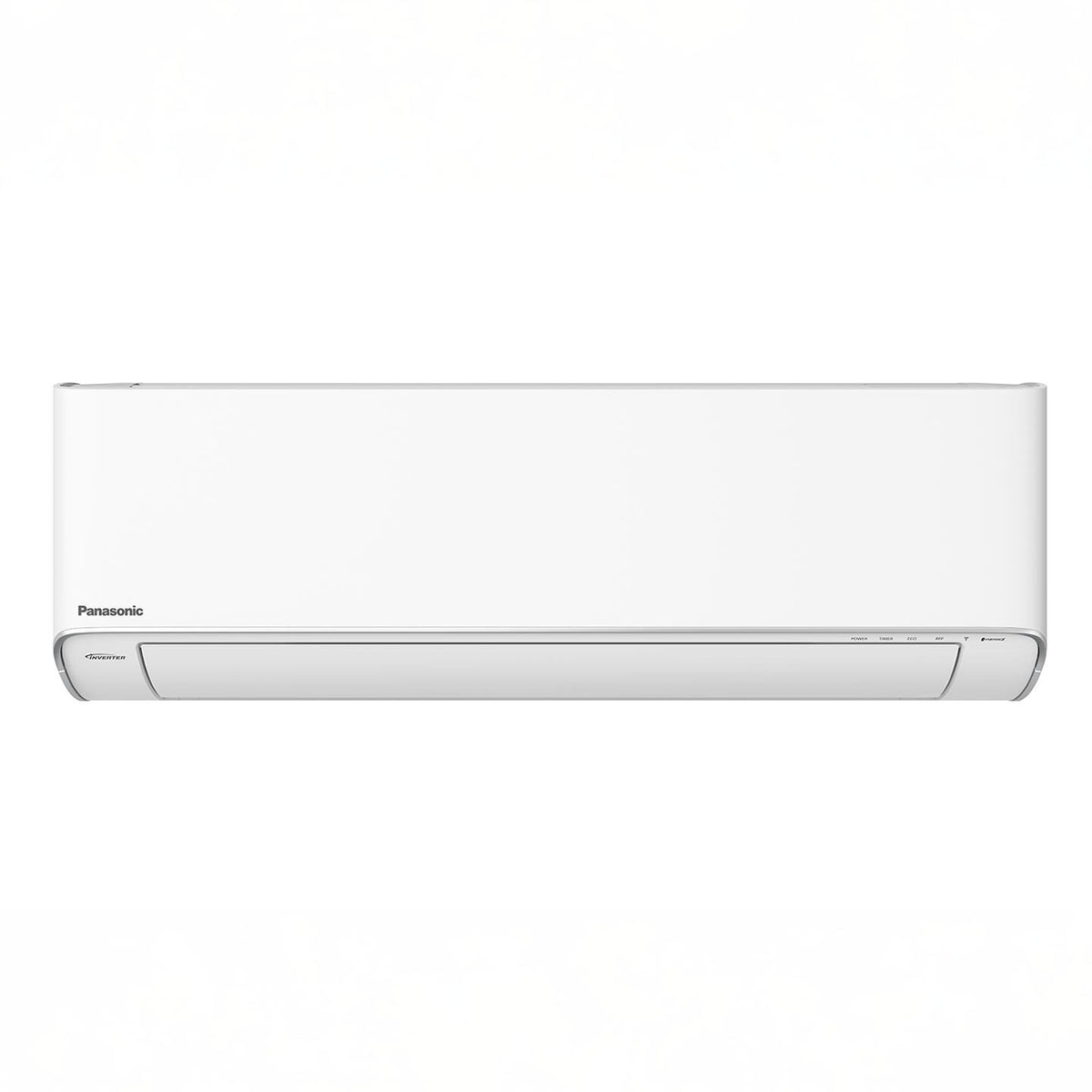

The Panasonic CS-MXZ5AKUA is a multi-zone indoor wall-mounted unit designed for ductless heating and cooling systems. This compact 5,000 BTU-class indoor unit works with compatible Panasonic multi-zone outdoor condensers and provides room-by-room temperature control. It features R32 refrigerant compatibility, nanoe™ X air and surface purification, AI ECO energy management, built-in Wi-Fi, Comfort Cloud connectivity, a wireless remote control, and cold-climate heating operation.
Key Features
- 5,000 BTU Class Indoor Unit: Designed for multi-zone ductless heating and cooling applications.
- Multi-Zone Compatible: Designed to work with compatible Panasonic multi-zone outdoor condensers including CU-2Z18ABUC and CU-3Z22ABUC.
- 5,500 BTU Cooling Capacity: Rated cooling capacity of 5,500 BTU/h with a range of 4,400 to 7,800 BTU/h.
- 8,900 BTU Heating Capacity: Rated heating capacity of 8,900 BTU/h with a range of 4,100 to 10,900 BTU/h.
- Cold Climate Heating: Supports Panasonic cold-climate system operation down to -15°F (-26°C) when used with the appropriate outdoor unit.
- nanoe™ X Technology: Provides air and surface purification functionality.
- AI ECO: Intelligent energy-saving technology designed to balance comfort and energy consumption.
- Built-In Wi-Fi: Enables convenient wireless connectivity and control through the Panasonic Comfort Cloud app.
- Wireless Remote Included: Includes a modern wireless remote control for convenient operation.
- ENERGY STAR Cold Climate Certified: Part of Panasonic's ENERGY STAR Cold Climate certified multi-zone system lineup.
- Compact Wall-Mount Design: Designed for high-wall installation while maintaining a slim indoor profile.
Specifications
- Model: CS-MXZ5AKUA
- Product Type: Multi-Zone Indoor Wall Mount Unit
- System Type: Ductless Mini-Split Heat Pump
- Nominal Capacity Class: 5,000 BTU
- Cooling Capacity: 5,500 BTU/h / 1.62 kW
- Cooling Capacity Range: 4,400-7,800 BTU/h
- Heating Capacity: 8,900 BTU/h / 2.61 kW
- Heating Capacity Range: 4,100-10,900 BTU/h
- Moisture Removal: 0.6 pints/hour
- Indoor Airflow - Cooling: 405 CFM at High
- Indoor Airflow - Heating: 405 CFM at High
- Power Supply: 208/230V, Single Phase, 60Hz
- Cooling Power Input: 350 W rated; 250-470 W range
- Heating Power Input: 640 W rated; 300-910 W range
- Refrigerant: R32
- Indoor Dimensions: 11-5/8 x 34-9/32 x 9-1/32 in (H x W x D)
- Indoor Dimensions: 295 x 870 x 229 mm (H x W x D)
- Indoor Unit Weight: 22 lb (10 kg)
Airflow & Fan Specifications
- Fan Type: Cross-flow fan
- Fan Motor: DC motor, 8-pole
- Fan Speed: Variable speed
- Cooling Airflow: 150 / 214 / 305 / 405 / 427 CFM (QLow / Low / Medium / High / SHi)
- Heating Airflow: 150 / 214 / 286 / 405 / 427 CFM (QLow / Low / Medium / High / SHi)
- High Fan Speed: 1,040 RPM in cooling and heating
Noise Specifications
- Cooling Sound Pressure: 43 / 31 / 21 dB-A (High / Medium / Low)
- Heating Sound Pressure: 42 / 27 / 21 dB-A (High / Medium / Low)
Heat Exchanger & Construction
- Heat Exchanger: Aluminum coil with coating
- Fin Type: Slit fin
- Tube Type: Internally grooved tube
- Heat Exchanger Rows: 2 x 17 x 21
- Indoor Fan Motor Output: 47 W
Controls & Connectivity
- Built-In Wi-Fi: Yes
- Comfort Cloud: Compatible
- Wireless Remote Control: Included
- AI ECO: Included
- nanoe™ X: Included
Compatible Outdoor Units
- CU-2Z18ABUC
- CU-3Z22ABUC
Compatible Multi-Zone Systems
- CU-2Z18ABUC: 2-zone multi-zone outdoor condenser
- CU-3Z22ABUC: 2-3 zone multi-zone outdoor condenser
- System Refrigerant: R32
- Cold Climate Heating: Down to -15°F (-26°C) with the appropriate compatible outdoor condenser
Additional Features
- Air & Surface Purification: nanoe™ X technology.
- Energy Management: AI ECO intelligent energy-saving operation.
- Remote Connectivity: Built-in Wi-Fi with Comfort Cloud compatibility.
- Wireless Control: Wireless remote control included.
- Installation: High-wall indoor installation.
- Application: Residential and light commercial multi-zone applications.
Note: CS-MXZ5AKUA is an indoor unit and must be paired with a compatible Panasonic multi-zone outdoor condenser. Panasonic lists CU-2Z18ABUC and CU-3Z22ABUC as compatible outdoor units on the product page. Verify the selected indoor/outdoor combination and installation requirements before installation.
