Product Description

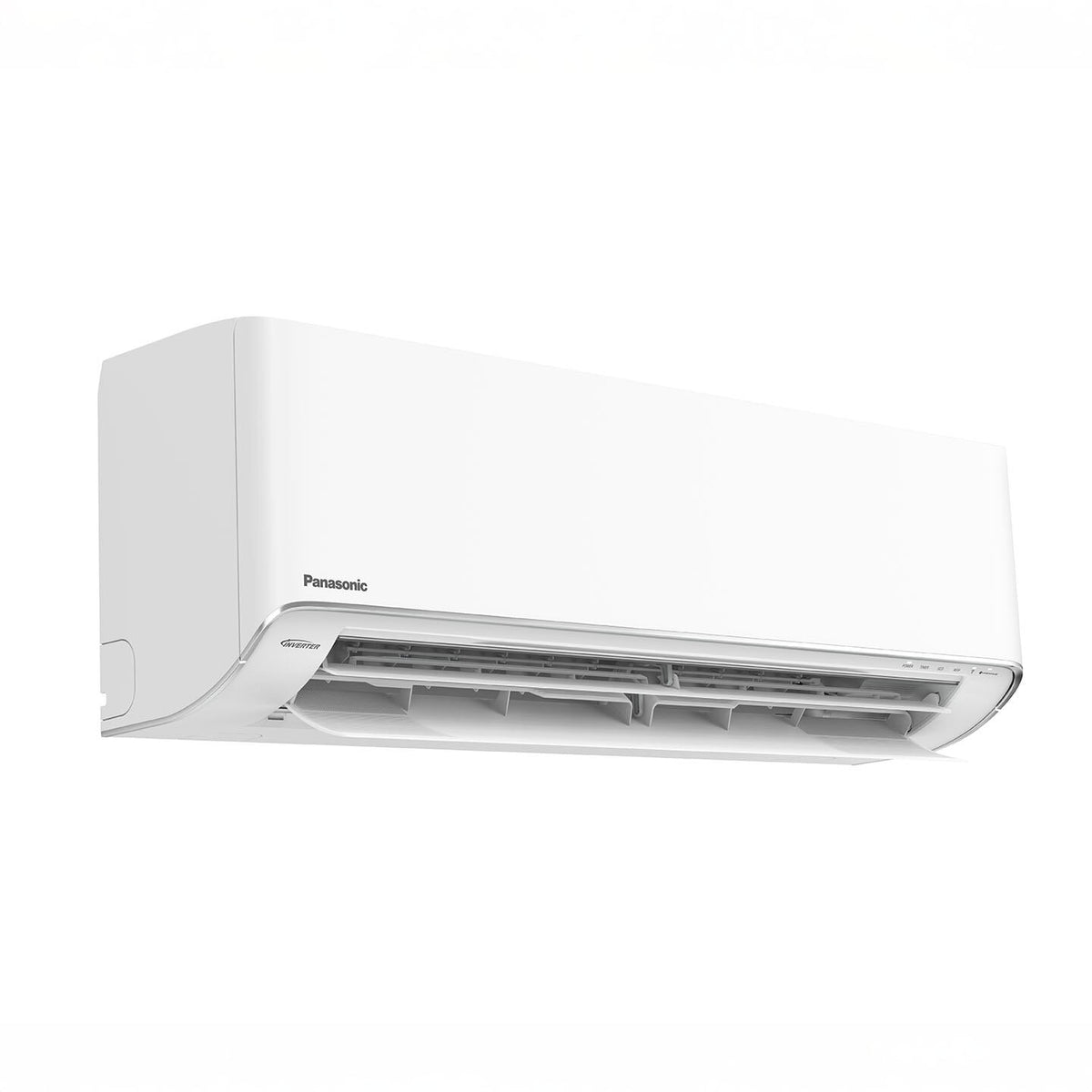

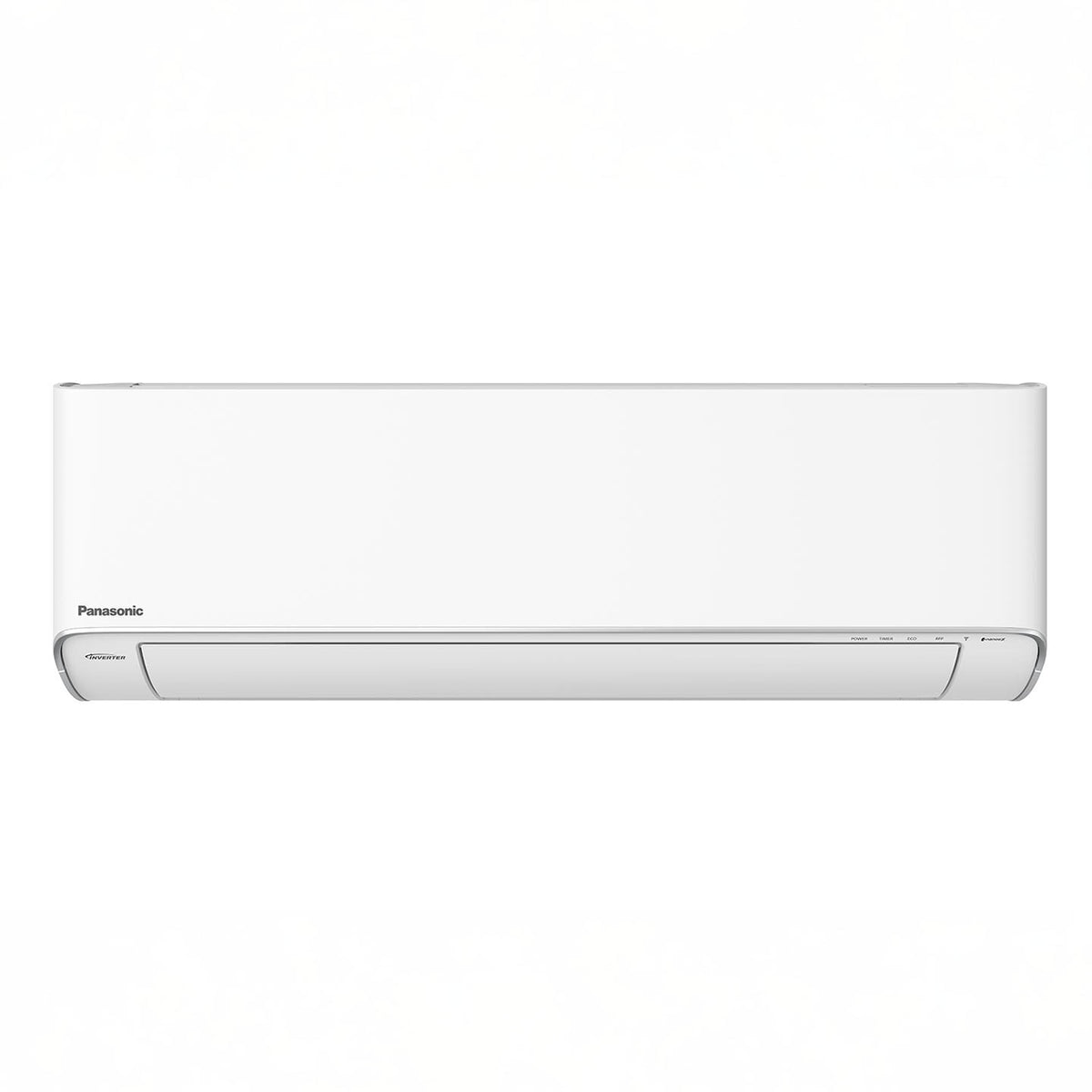

The Panasonic CS-MXZ7AKUA is a 7,000 BTU-class multi-zone indoor wall-mounted unit designed for ductless heating and cooling systems. It is intended for use with compatible Panasonic multi-zone outdoor condensers and provides room-by-room temperature control. The unit features R32 refrigerant compatibility, nanoe™ X air and surface purification, AI ECO energy management, built-in Wi-Fi, Comfort Cloud connectivity, and a wireless remote control.
Key Features
- 7,000 BTU Class Indoor Unit: Designed for multi-zone ductless heating and cooling applications.
- Multi-Zone Compatible: Designed to work with compatible Panasonic outdoor condensers including CU-2Z18ABUC and CU-3Z22ABUC.
- 6,900 BTU Cooling Capacity: Rated cooling capacity of 6,900 BTU/h with an operating range of 6,100 to 8,500 BTU/h.
- 10,900 BTU Heating Capacity: Rated heating capacity of 10,900 BTU/h with an operating range of 4,100 to 14,000 BTU/h.
- Cold Climate Heating: Supports cold-climate system operation down to -15°F (-26°C) when paired with the appropriate compatible outdoor unit.
- nanoe™ X Technology: Provides air and surface purification functionality.
- AI ECO: Intelligently balances energy savings and comfort.
- Built-In Wi-Fi: Enables wireless connectivity and control through the Panasonic Comfort Cloud app.
- Wireless Remote Included: Includes a modern wireless remote control for convenient operation.
- ENERGY STAR Cold Climate Certified: Part of Panasonic's ENERGY STAR Cold Climate certified multi-zone system lineup.
- Compact Wall-Mount Design: Designed for high-wall installation with a compact indoor profile.
Specifications
- Model: CS-MXZ7AKUA
- Product Type: Multi-Zone Indoor Wall Mount Unit
- System Type: Ductless Mini-Split Heat Pump
- Nominal Capacity Class: 7,000 BTU
- Cooling Capacity: 6,900 BTU/h / 2.01 kW
- Cooling Capacity Range: 6,100-8,500 BTU/h
- Heating Capacity: 10,900 BTU/h / 3.21 kW
- Heating Capacity Range: 4,100-14,000 BTU/h
- Moisture Removal: 0.8 pints/hour
- Indoor Airflow - Cooling: 415 CFM at High
- Indoor Airflow - Heating: 415 CFM at High
- Power Supply: 208/230V, Single Phase, 60Hz
- Cooling Power Input: 400 W rated; 340-520 W range
- Heating Power Input: 810 W rated; 300-1,160 W range
- Refrigerant: R32
- Indoor Dimensions: 11-5/8 x 34-9/32 x 9-1/32 in (H x W x D)
- Indoor Dimensions: 295 x 870 x 229 mm (H x W x D)
- Indoor Unit Weight: 22 lb (10 kg)
Performance Details
- Cooling Capacity - Minimum: 6,100 BTU/h
- Cooling Capacity - Rated: 6,900 BTU/h
- Cooling Capacity - Maximum: 8,500 BTU/h
- Heating Capacity - Minimum: 4,100 BTU/h
- Heating Capacity - Rated: 10,900 BTU/h
- Heating Capacity - Maximum: 14,000 BTU/h
- Cooling Input - Minimum: 340 W
- Cooling Input - Rated: 400 W
- Cooling Input - Maximum: 520 W
- Heating Input - Minimum: 300 W
- Heating Input - Rated: 810 W
- Heating Input - Maximum: 1,160 W
Controls & Connectivity
- Built-In Wi-Fi: Yes
- Comfort Cloud: Compatible
- Wireless Remote Control: Included
- AI ECO: Included
- nanoe™ X: Included
Compatible Outdoor Units
- CU-2Z18ABUC
- CU-3Z22ABUC
Compatible Multi-Zone Systems
- CU-2Z18ABUC: 2-zone multi-zone outdoor condenser
- CU-3Z22ABUC: 2-3 zone multi-zone outdoor condenser
- System Refrigerant: R32
- Cold Climate Heating: Down to -15°F (-26°C) with the appropriate compatible outdoor condenser
Additional Features
- Air & Surface Purification: nanoe™ X technology.
- Energy Management: AI ECO technology helps balance comfort and energy savings.
- Remote Connectivity: Built-in Wi-Fi with Comfort Cloud compatibility.
- Wireless Control: Wireless remote control included.
- Installation: High-wall indoor installation.
- Application: Residential and light commercial multi-zone applications.
Note: CS-MXZ7AKUA is an indoor unit and must be paired with a compatible Panasonic multi-zone outdoor condenser. Panasonic lists CU-2Z18ABUC and CU-3Z22ABUC as compatible outdoor units. Verify the selected indoor/outdoor combination and installation requirements before installation.
