Product Description

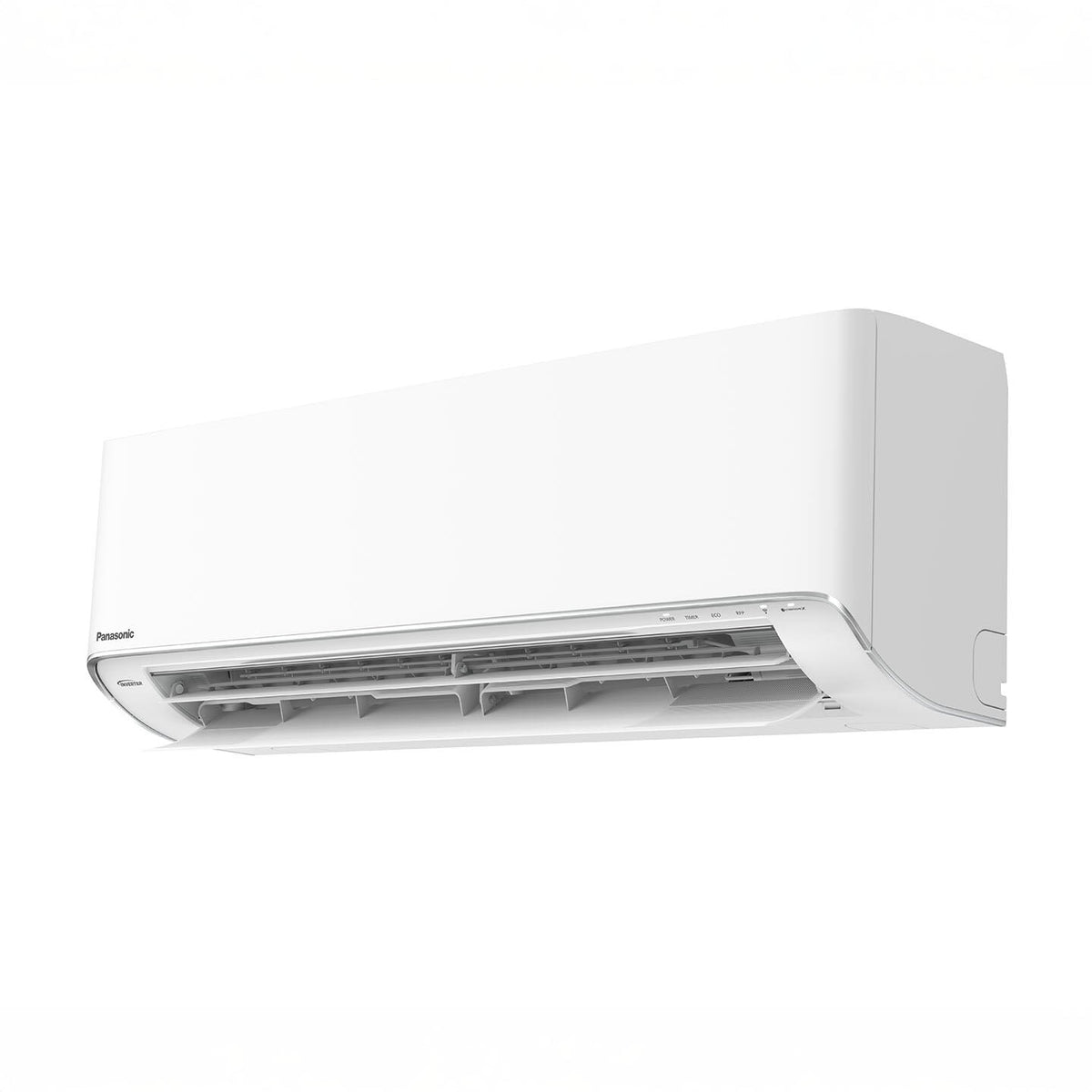

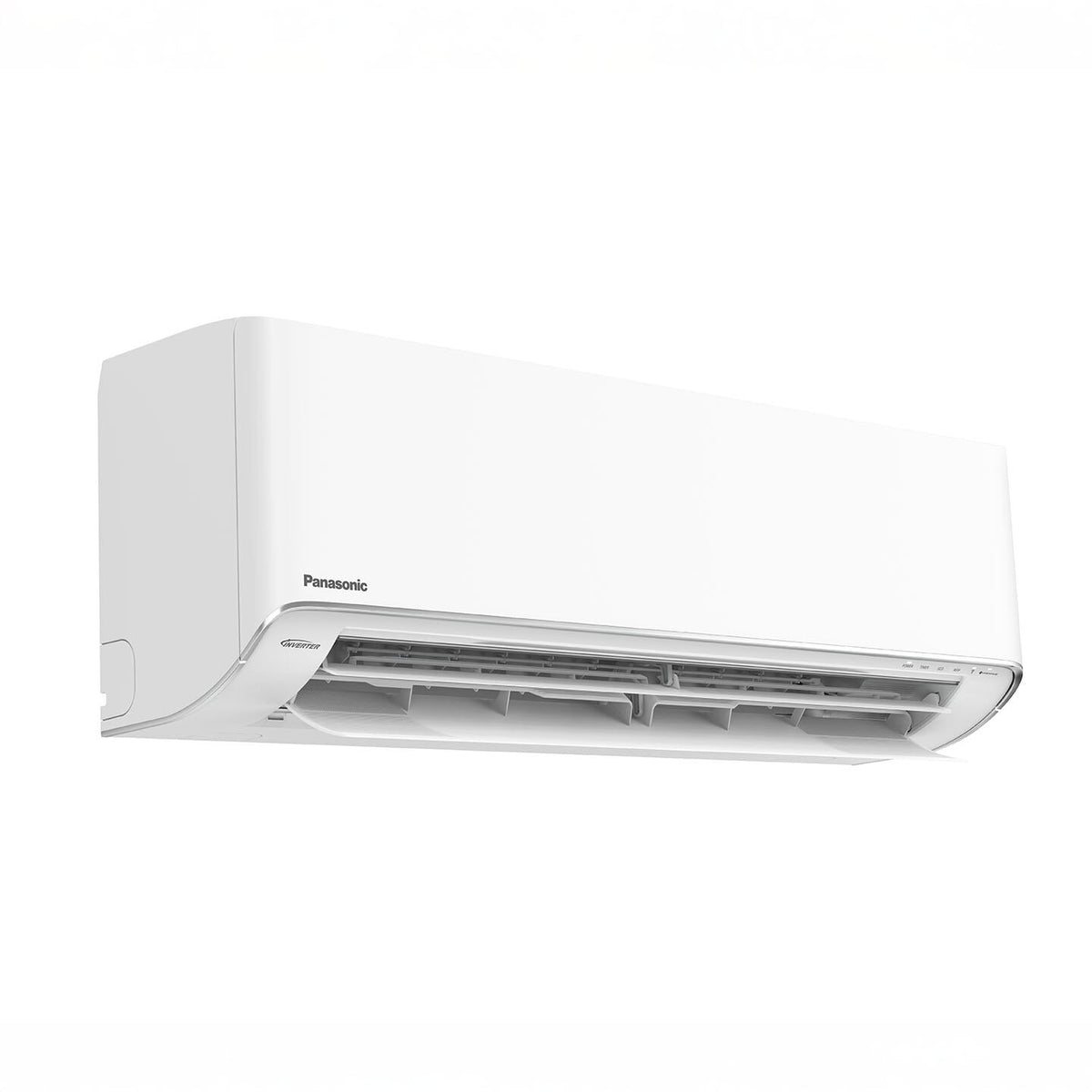

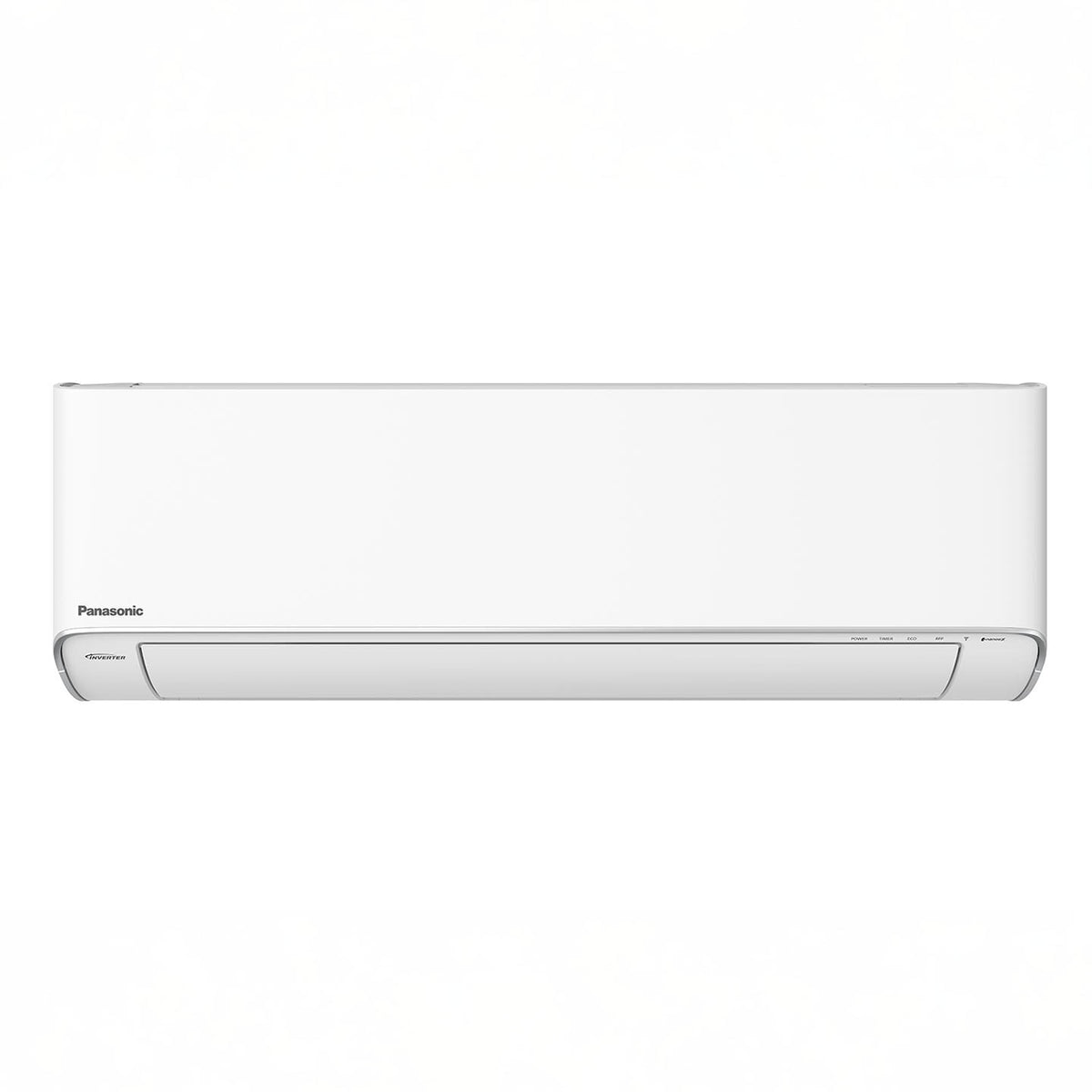

The Panasonic ClimaPure XZ Series CS-XZ12AKUAW is a wall-mounted indoor unit designed for efficient ductless heating and cooling. It is part of the XZ12AKUA single-split system and pairs with the CU-XZ12AKUAC outdoor unit. The system provides zoned temperature control while incorporating Panasonic's improved nanoe™ X air and surface purification technology.
The CS-XZ12AKUAW provides a rated cooling capacity of 11,500 BTU/h and a rated heating capacity of 12,000 BTU/h, with inverter-driven operation that adjusts capacity according to changing comfort requirements. The system supports cold-climate heating operation down to -15°F (-26°C) and uses R32 refrigerant.
This indoor unit features built-in Wi-Fi, compatibility with the Panasonic Comfort Cloud app, AI ECO operation, a wireless remote control, fireplace function, and an included base pan heater. The CS-XZ12AKUAW can also be used in compatible multi-zone installations.
Key Features
- ClimaPure XZ Series wall-mounted indoor unit
- Designed for ductless heating and air conditioning
- Rated cooling capacity of 11,500 BTU/h
- Cooling capacity range of 2,900–16,100 BTU/h
- Rated heating capacity of 12,000 BTU/h
- Heating capacity range of 3,200–23,600 BTU/h
- Cold-climate heating operation down to -15°F (-26°C)
- Improved nanoe™ X air and surface purification technology
- AI ECO technology for balancing energy savings and comfort
- Built-in Wi-Fi for convenient connectivity
- Panasonic Comfort Cloud app compatibility
- Wireless remote control included
- Fireplace function
- Base pan heater included
- R32 refrigerant
- ENERGY STAR® Cold Climate Certified system
- Indoor unit suitable for compatible multi-zone installations
Specifications
- Brand: Panasonic
- Series: ClimaPure XZ
- Model: CS-XZ12AKUAW
- System SKU: XZ12AKUA
- Product Type: Ductless Mini-Split Indoor Unit
- Compatible Outdoor Unit: CU-XZ12AKUAC
- Cooling Capacity: 11,500 BTU/h rated
- Cooling Capacity Range: 2,900–16,100 BTU/h
- Cooling Capacity: 3.36 kW
- Heating Capacity: 12,000 BTU/h rated
- Heating Capacity Range: 3,200–23,600 BTU/h
- Heating Capacity: 3.51 kW
- Moisture Removal: 2.5 pints/hour, high
- Indoor Airflow – Cooling: 430 CFM, high
- Indoor Airflow – Heating: 460 CFM, high
- SEER2: 25.00
- EER2: 14.35
- HSPF2 Region 4: 11.70
- HSPF2 Region 5: 8.90
- Power Supply: 208/230V, single phase, 60Hz
- Power Input – Cooling: 800 W
- Power Input – Heating: 790 W
- Indoor Unit Dimensions: 11-5/8" H x 34-9/32" W x 9-1/32" D
- Indoor Unit Dimensions: 295 x 870 x 229 mm
- Indoor Unit Weight: 24 lbs (11 kg)
- Refrigerant: R32
Performance Attributes
- Cooling Capacity – Min/ Rated/ Max: 2,900 / 11,500 / 16,100 BTU/h
- Heating Capacity – Min/ Rated/ Max: 3,200 / 12,000 / 23,600 BTU/h
- Cooling Power Input – Min/ Rated/ Max: 0.17 / 0.80 / 1.20 kW
- Heating Power Input – Min/ Rated/ Max: 0.16 / 0.79 / 1.90 kW
- COP: 4.44
- Maximum Input Power: 1,900 W
- Maximum Current: 8.9 A
- Starting Current: 4.0 A
- Heating Capacity at 17°F: 16,500 BTU/h
- Maximum Heating Capacity at 5°F: 13,700 BTU/h
- Compressor Type: Inverter-driven hermetic rotary
- Compressor Motor: Brushless, 6-pole
- Compressor Output: 900 W
- Indoor Noise – Cooling: 44 / 28 / 19 dB-A (High / Low / Quiet-Low)
- Indoor Noise – Heating: 44 / 35 / 19 dB-A (High / Low / Quiet-Low)
- Outdoor Noise – Cooling: 48 dB-A
- Outdoor Noise – Heating: 49 dB-A
System Attributes
- Indoor Unit: CS-XZ12AKUAW
- Outdoor Unit: CU-XZ12AKUAC
- System Type: Single-Split Heat Pump
- Installation Type: Ductless
- Operation: Heating and Cooling
- Cold Climate Heating: Down to -15°F (-26°C)
- Refrigerant: R32
- Air Purification: nanoe™ X
- Wi-Fi: Built-in
- App: Panasonic Comfort Cloud
- Control: Wireless Remote Control
- Energy Certification: ENERGY STAR® Cold Climate Certified
