Product Description

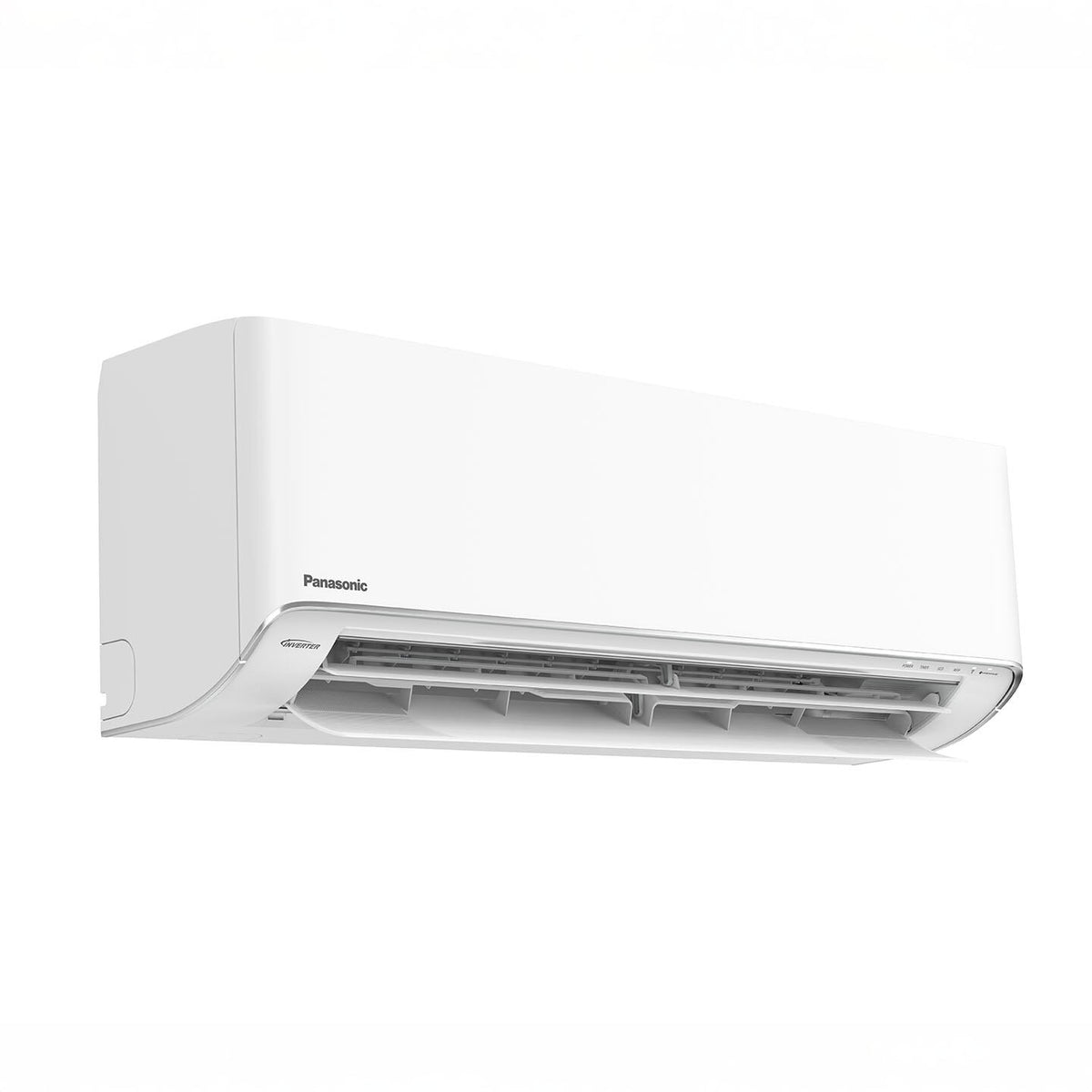

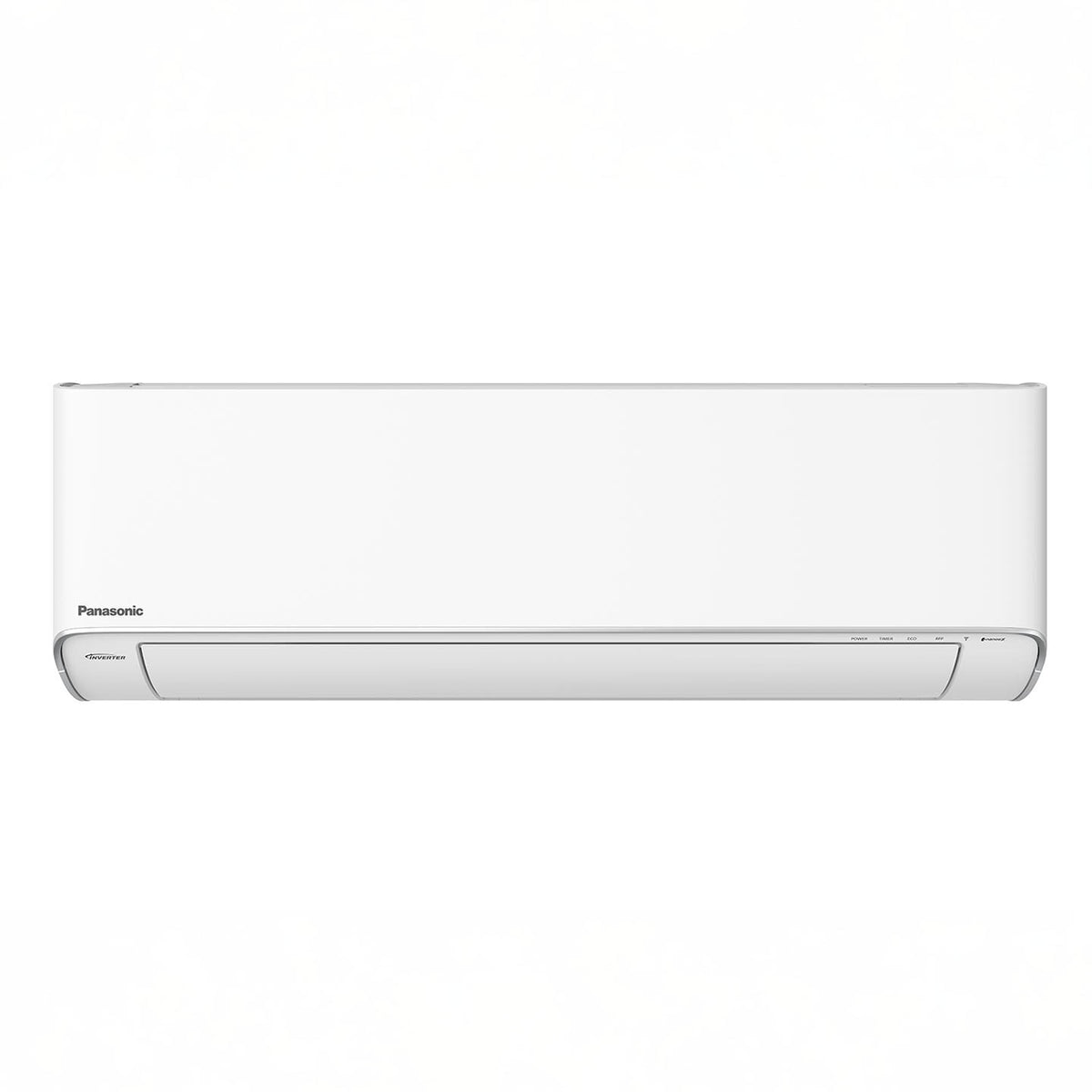

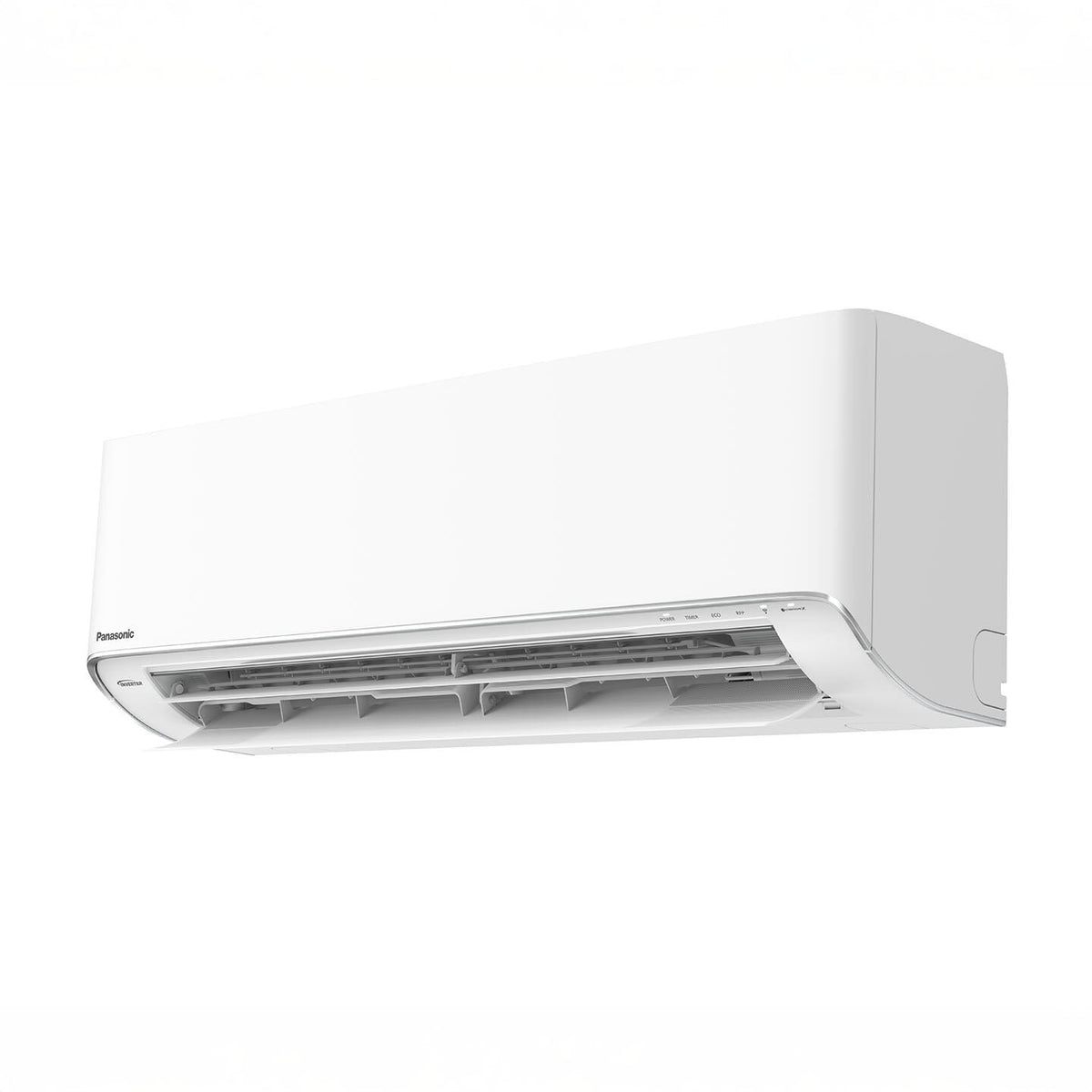

The Panasonic ClimaPure XZ Series CS-XZ15AKUAW is a wall-mounted indoor unit designed for ductless heating and air conditioning applications. It is part of the XZ15AKUA single-split system and pairs with the CU-XZ15AKUAC outdoor unit to provide efficient zoned temperature control.
The system delivers a rated cooling capacity of 14,700 BTU/h and a rated heating capacity of 17,200 BTU/h. Inverter-driven operation allows the system to modulate capacity based on changing comfort requirements. The system is designed for cold-climate heating operation down to -15°F (-26°C) and uses R32 refrigerant.
The CS-XZ15AKUAW features Panasonic's improved nanoe™ X air and surface purification technology, built-in Wi-Fi, Comfort Cloud app compatibility, AI ECO operation, a wireless remote control, fireplace function, and base pan heater. Panasonic also specifies that this indoor unit can be used in compatible multi-zone installations.
Key Features
- ClimaPure XZ Series wall-mounted indoor unit
- Designed for ductless heating and air conditioning
- Rated cooling capacity of 14,700 BTU/h
- Cooling capacity range of 3,300–19,300 BTU/h
- Rated heating capacity of 17,200 BTU/h
- Heating capacity range of 3,300–25,200 BTU/h
- Cold-climate heating operation down to -15°F (-26°C)
- Improved nanoe™ X air and surface purification technology
- AI ECO technology for balancing energy savings and comfort
- Built-in Wi-Fi
- Panasonic Comfort Cloud app compatibility
- Wireless remote control included
- Fireplace function
- Base pan heater included
- R32 refrigerant
- ENERGY STAR® Cold Climate Certified system
- Indoor unit can also be used for compatible multi-zone installations
Specifications
- Brand: Panasonic
- Series: ClimaPure XZ
- Model: CS-XZ15AKUAW
- System SKU: XZ15AKUA
- Product Type: Ductless Mini-Split Indoor Unit
- Compatible Outdoor Unit: CU-XZ15AKUAC
- Cooling Capacity: 14,700 BTU/h rated
- Cooling Capacity Range: 3,300–19,300 BTU/h
- Cooling Capacity: 4.30 kW
- Heating Capacity: 17,200 BTU/h rated
- Heating Capacity Range: 3,300–25,200 BTU/h
- Heating Capacity: 5.04 kW
- Moisture Removal: 4.0 pints/hour, high
- Indoor Airflow – Cooling: 450 CFM, high
- Indoor Airflow – Heating: 495 CFM, high
- SEER2: 22.40
- EER2: 13.35
- HSPF2 Region 4: 12.00
- HSPF2 Region 5: 8.90
- Power Supply: 208/230V, single phase, 60Hz
- Power Input – Cooling: 1,100 W
- Power Input – Heating: 1,230 W
- Refrigerant: R32
- Indoor Unit Dimensions: 11-5/8" H x 34-9/32" W x 9-1/32" D
- Indoor Unit Dimensions: 295 x 870 x 229 mm
- Indoor Unit Weight: 24 lbs (11 kg)
Performance Attributes
- Cooling Capacity – Min / Rated / Max: 3,300 / 14,700 / 19,300 BTU/h
- Heating Capacity – Min / Rated / Max: 3,300 / 17,200 / 25,200 BTU/h
- Cooling Power Input – Min / Rated / Max: 0.24 / 1.10 / 1.90 kW
- Heating Power Input – Min / Rated / Max: 0.20 / 1.23 / 2.40 kW
- SEER2: 22.40
- EER2: 13.35
- HSPF2: 12.00
- COP: 4.10
- Maximum Input Power: 2,400 W
- Maximum Current: 10.3 A
- Starting Current: 6.0 A
- Heating Capacity at 17°F: 17,500 BTU/h
- Maximum Heating Capacity at 5°F: 15,300 BTU/h
- Compressor Type: Inverter-driven hermetic rotary
- Compressor Motor: Brushless, 6-pole
- Compressor Output: 900 W
Noise Attributes
- Indoor Noise – Cooling: 45 / 37 / 30 dB-A (High / Low / Quiet-Low)
- Indoor Noise – Heating: 46 / 37 / 30 dB-A (High / Low / Quiet-Low)
- Indoor Sound Power Level – Cooling: 61 dB
- Indoor Sound Power Level – Heating: 62 dB
- Outdoor Noise – Cooling: 50 dB-A
- Outdoor Noise – Heating: 50 dB-A
- Outdoor Sound Power Level: 65 dB
System Attributes
- Indoor Unit: CS-XZ15AKUAW
- Outdoor Unit: CU-XZ15AKUAC
- System Type: Single-Split Heat Pump
- Installation Type: Ductless
- Operation: Heating and Cooling
- Cold Climate Heating: Down to -15°F (-26°C)
- Refrigerant: R32
- Air Purification: Improved nanoe™ X
- Wi-Fi: Built-in
- App Compatibility: Panasonic Comfort Cloud
- Control: Wireless Remote Control
- Certification: ENERGY STAR® Cold Climate Certified
