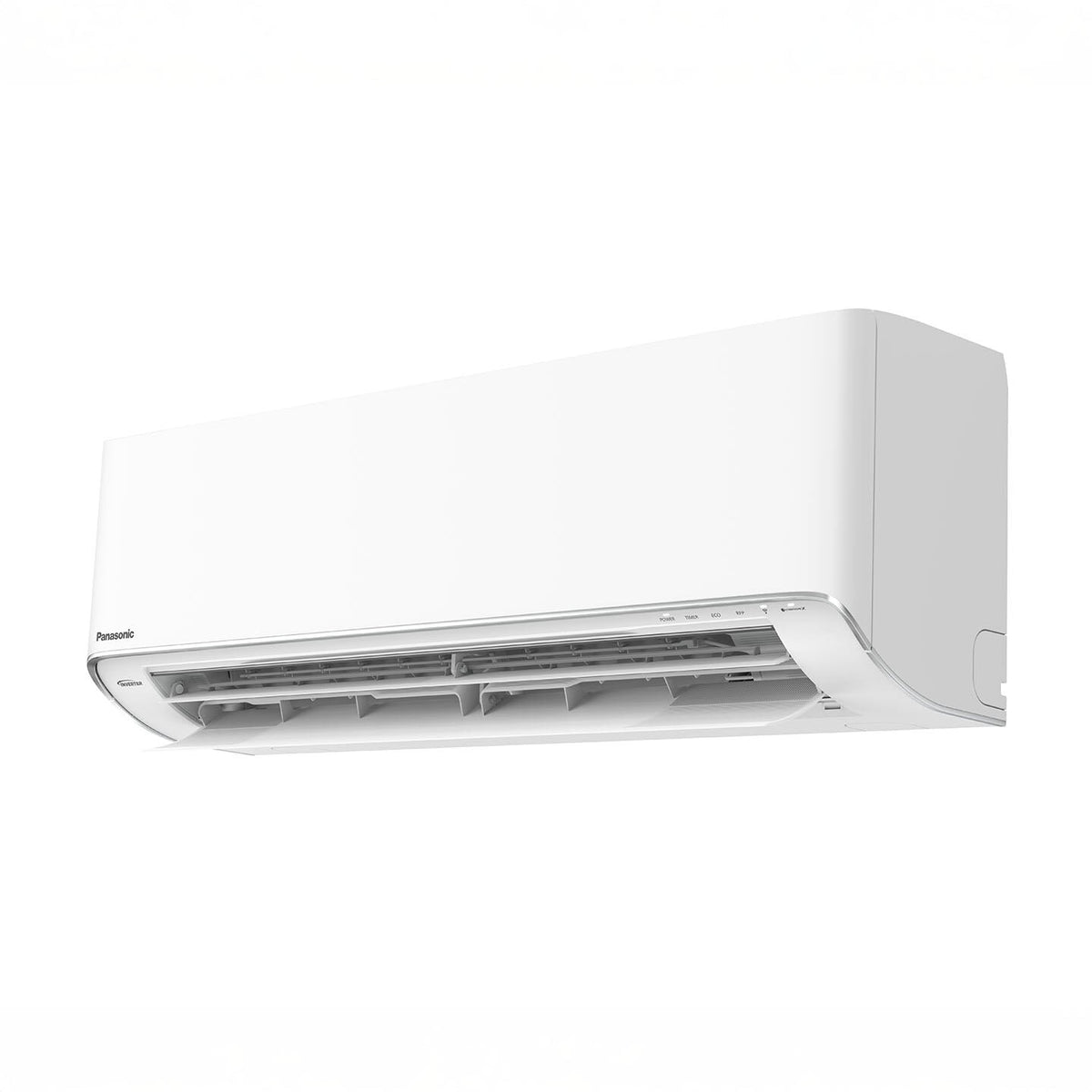

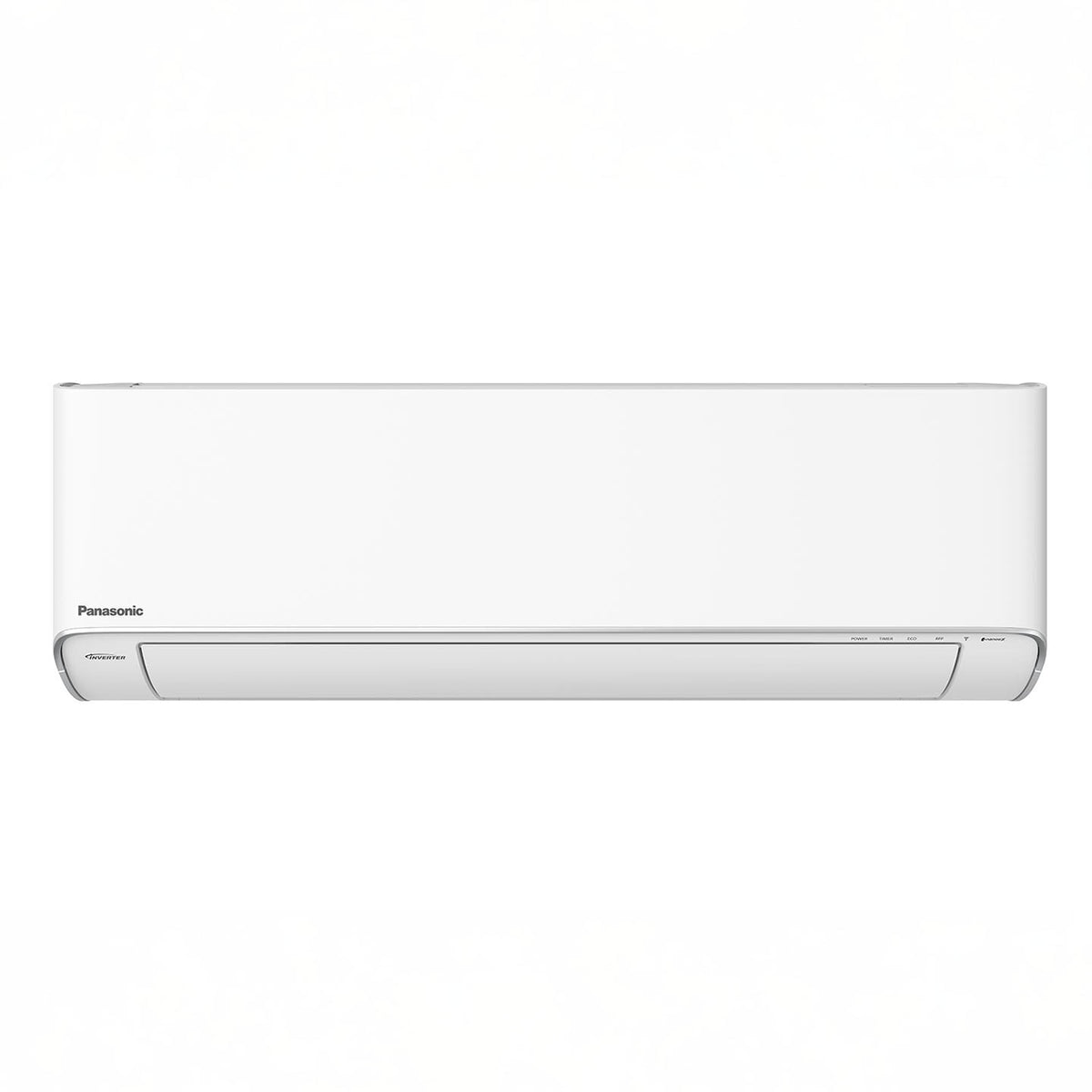

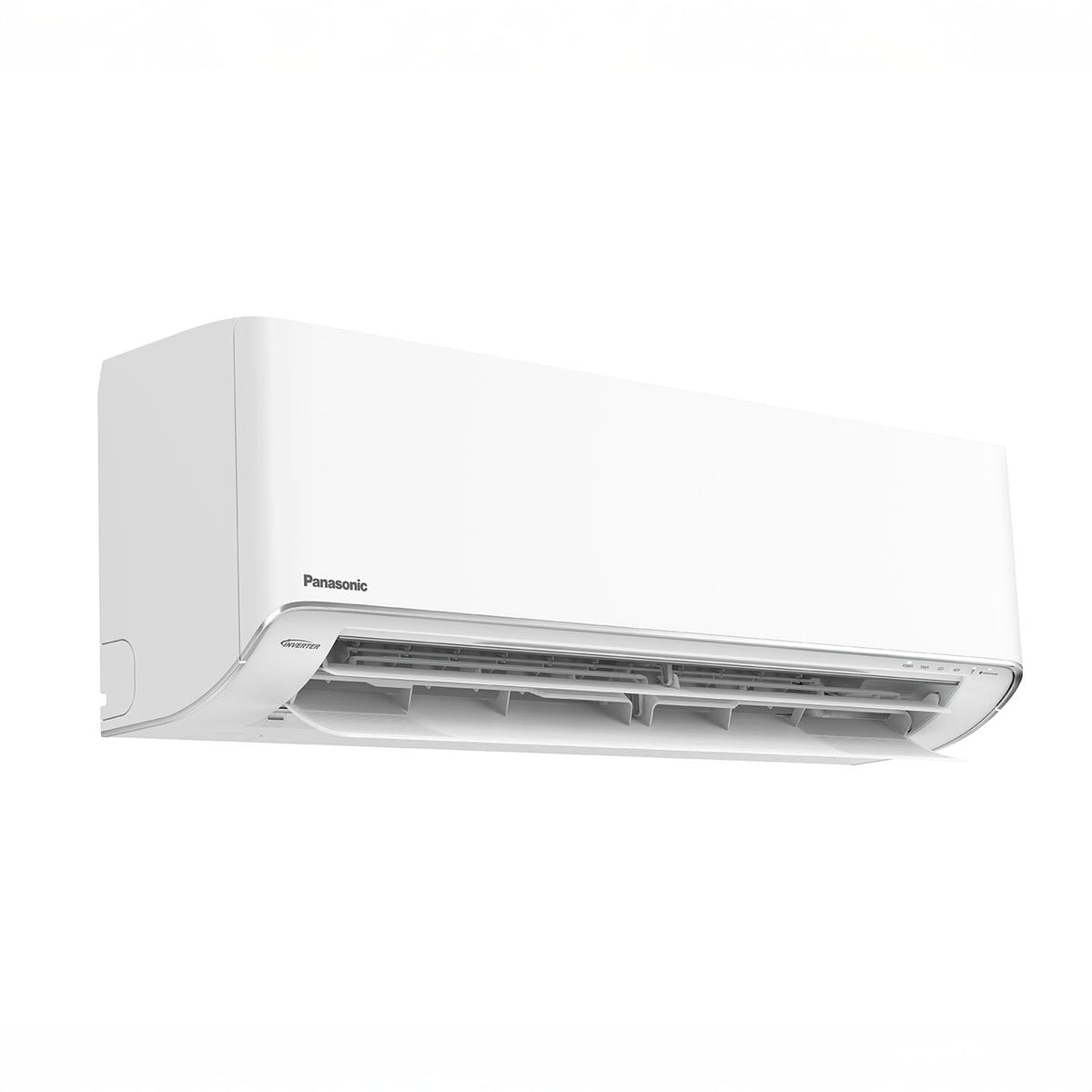

Panasonic CS-XZ9AKUAW ClimaPure XZ Series 9,000 BTU Ductless Mini Split Indoor Unit

Product Description

The Panasonic ClimaPure XZ Series CS-XZ9AKUAW is a wall-mounted indoor unit designed for efficient ductless heating and cooling applications. It is part of the ClimaPure XZ9AKUA single-zone mini-split system and pairs with the CU-XZ9AKUAC outdoor unit. The system combines zoned temperature control with Panasonic's improved nanoe™ X air and surface purification technology for enhanced indoor comfort.

The CS-XZ9AKUAW delivers a rated cooling capacity of 8,700 BTU/h and a rated heating capacity of 10,900 BTU/h, with inverter-driven operation for efficient temperature control. It supports cold-climate heating operation down to -15°F (-26°C) and uses R32 refrigerant. Built-in Wi-Fi, Comfort Cloud app compatibility, AI ECO operation, a wireless remote control, fireplace function, and a base pan heater provide additional convenience and functionality.

The indoor unit can also be used for multi-zone installations when paired with compatible Panasonic outdoor equipment.

Key Features

• ClimaPure XZ Series indoor unit for ductless heating and cooling
• Rated cooling capacity of 8,700 BTU/h
• Rated heating capacity of 10,900 BTU/h
• Cold-climate heating operation down to -15°F (-26°C)
• Improved nanoe™ X air and surface purification technology
• AI ECO technology for balancing energy savings and comfort
• Built-in Wi-Fi with Panasonic Comfort Cloud app compatibility
• Wireless remote control included
• Fireplace function for supplemental heat circulation
• Base pan heater included
• R32 refrigerant
• ENERGY STAR® Cold Climate Certified system
• Indoor unit can be used for compatible multi-zone installations

Specifications

• Brand: Panasonic
• Series: ClimaPure XZ
• Indoor Unit Model: CS-XZ9AKUAW
• System SKU: XZ9AKUA
• Product Type: Ductless Mini-Split Indoor Unit
• Cooling Capacity: 8,700 BTU/h (2,900–12,600 BTU/h)
• Heating Capacity: 10,900 BTU/h (3,200–19,900 BTU/h)
• Cooling Capacity: 2.55 kW
• Heating Capacity: 3.21 kW
• Moisture Removal: 1.3 pints/hour, high
• Indoor Airflow – Cooling: 410 CFM, high
• Indoor Airflow – Heating: 435 CFM, high
• SEER2: 27.5
• EER2: 16.4
• HSPF2 Region 4: 12.00
• HSPF2 Region 5: 9.20
• Power Supply: 208/230V, single phase, 60Hz
• Power Input – Cooling: 530 W
• Power Input – Heating: 670 W
• Refrigerant: R32
• Indoor Unit Dimensions: 11-5/8" H x 34-9/32" W x 9-1/32" D
• Indoor Unit Dimensions: 295 x 870 x 229 mm
• Indoor Unit Weight: 24 lbs (11 kg)

Additional Attributes

• Air Purification: nanoe™ X
• Wi-Fi: Built-in
• App Compatibility: Panasonic Comfort Cloud
• Control: Wireless Remote Control
• Cold Climate Operation: Up to -15°F (-26°C)
• Compressor Type: Inverter-driven hermetic rotary
• Motor Type: Brushless, 6-pole
• Indoor Noise Level – Cooling: 42 / 25 / 19 dB-A (High / Low / Quiet-Low)
• Indoor Noise Level – Heating: 42 / 29 / 19 dB-A (High / Low / Quiet-Low)
• Cooling Power Input: 0.17 / 0.53 / 0.89 kW (Min / Rated / Max)
• Heating Power Input: 0.16 / 0.67 / 1.78 kW (Min / Rated / Max)
• Max Input Power: 1,780 W
• Max Current: 7.8 A
• Starting Current: 3.4 A
• Certification: ENERGY STAR® Cold Climate Certified
