Product Description

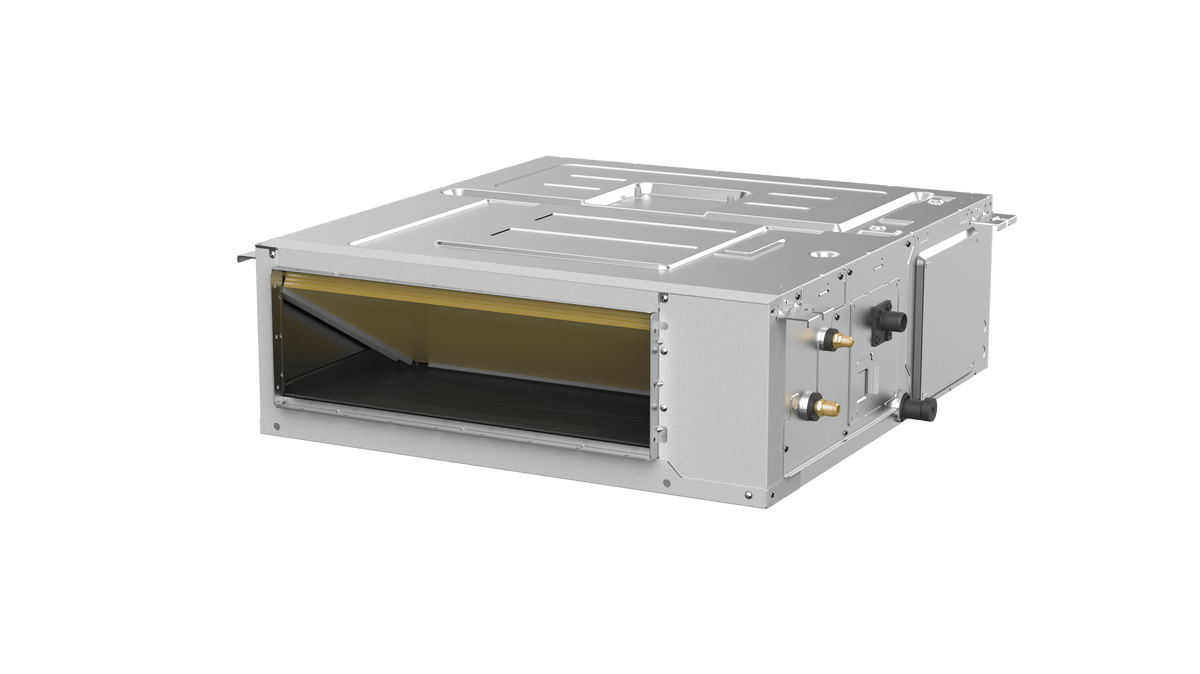

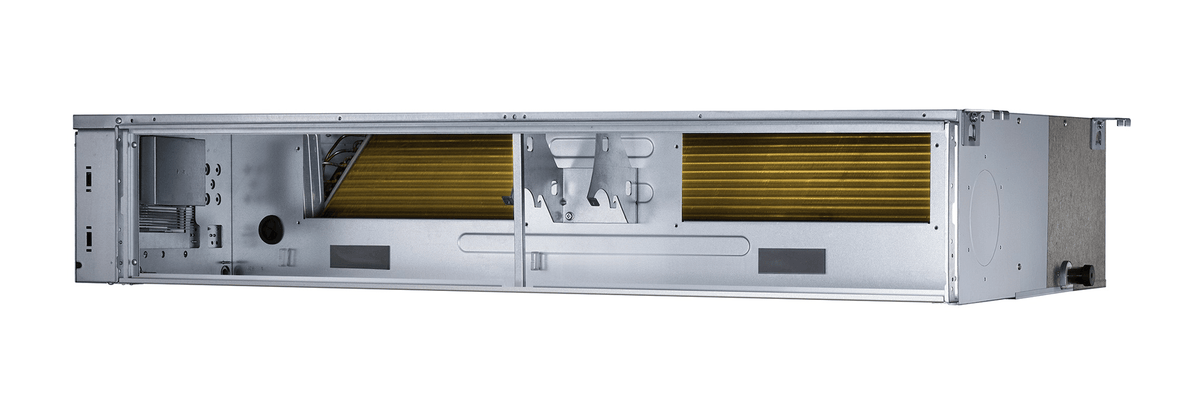

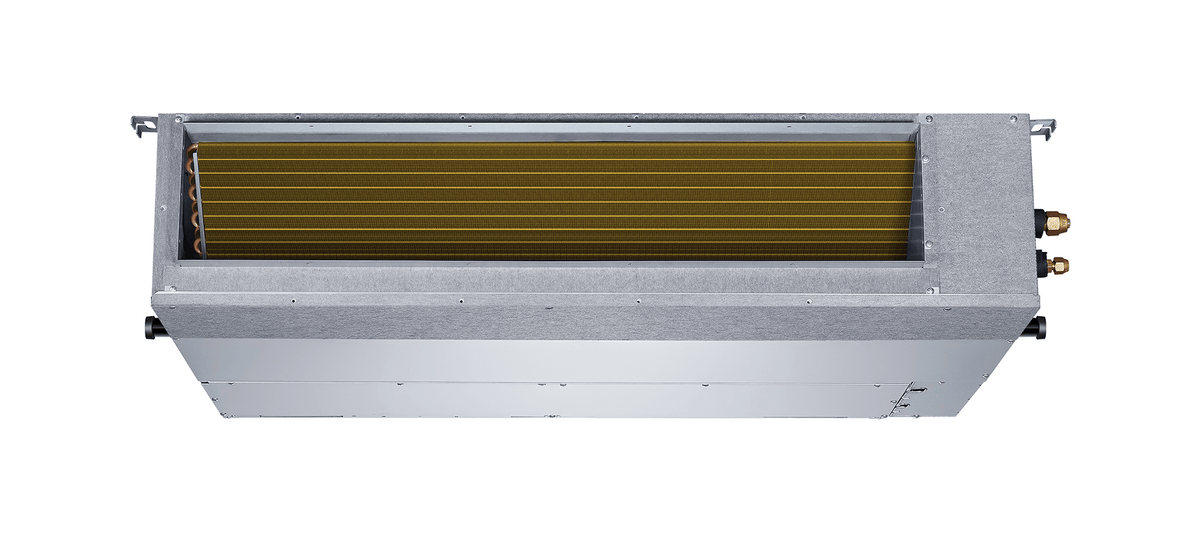

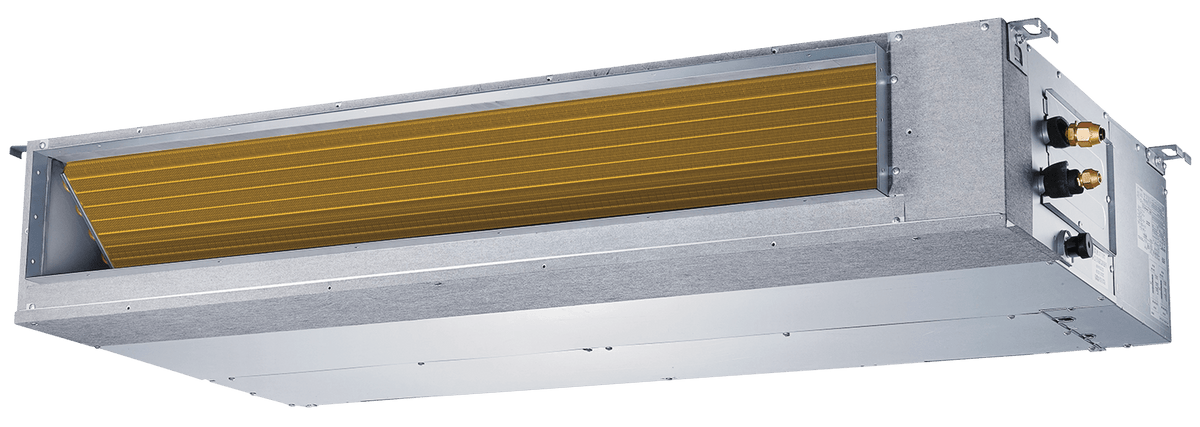

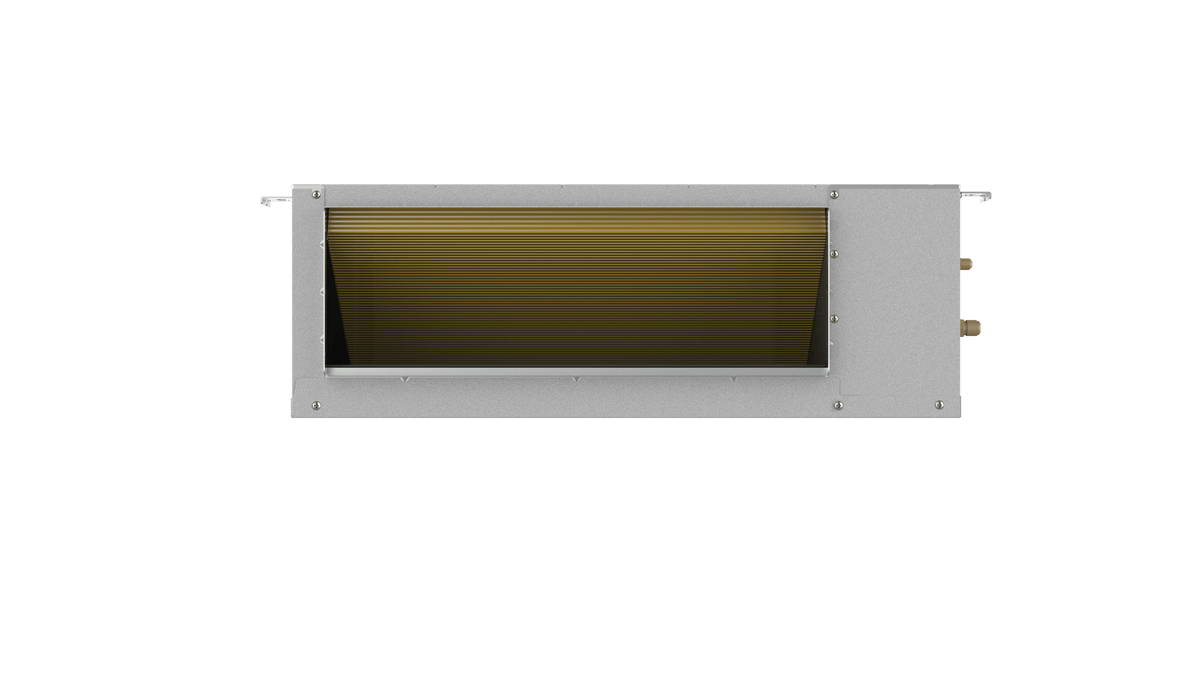

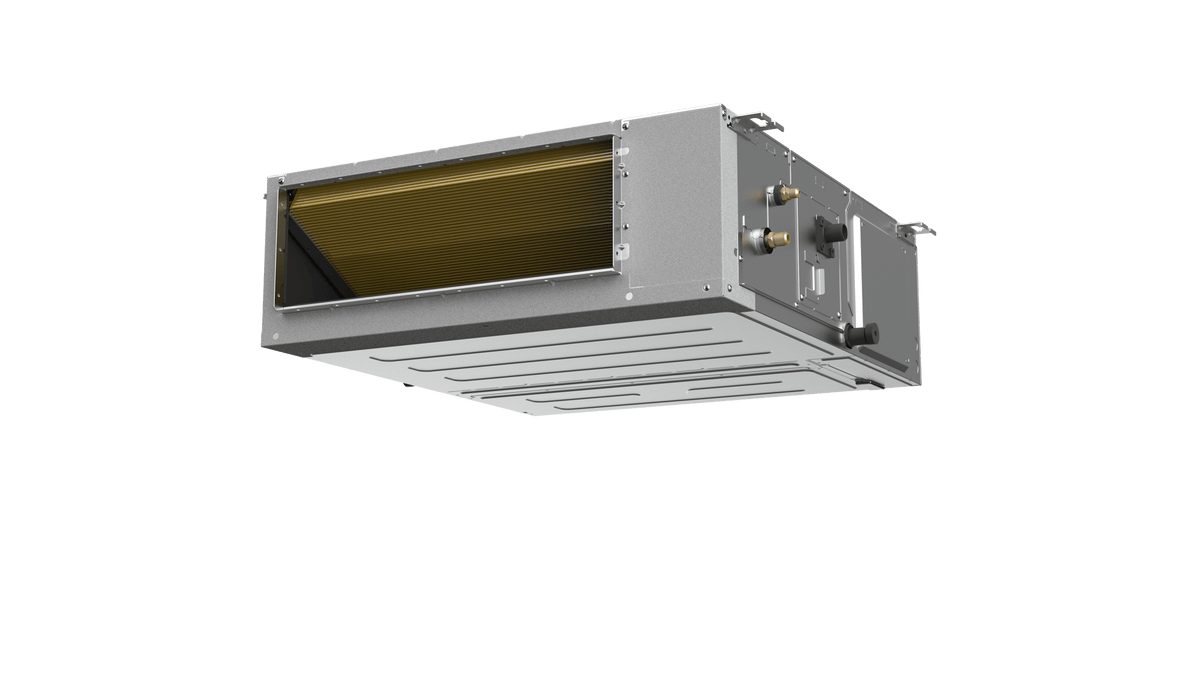

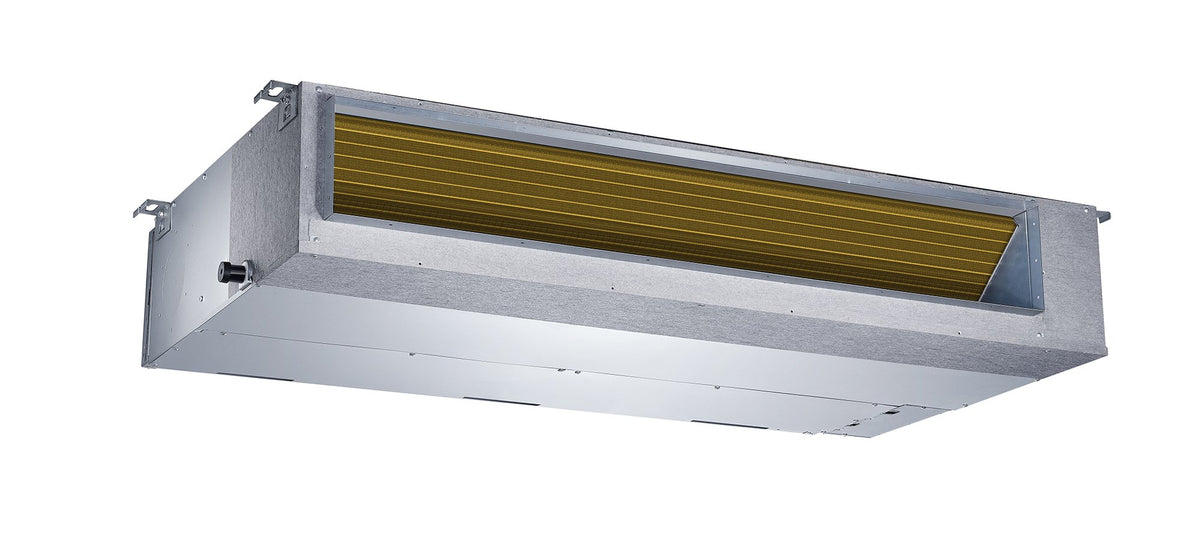

The Panasonic CS-YM12CD2UW Project Series Low-Profile Ducted indoor unit is designed to provide efficient heating and cooling through concealed ducted installation. Its compact profile makes it suitable for applications with limited ceiling space, including apartments, retrofit projects, multi-family buildings, and light commercial installations. The unit supports horizontal and vertical installation and is paired with the Panasonic CU-YM12CBUC inverter heat pump condenser.
Key Features
- 12,000 BTU-class Project Series low-profile ducted indoor unit
- 11,500 BTU/h rated cooling capacity with a 3,100–13,000 BTU/h operating range
- 12,000 BTU/h rated heating capacity with a 3,700–15,600 BTU/h operating range
- Compact concealed design for tight ceiling spaces and clean architectural installations
- Compatible with horizontal and vertical installation
- Built-in condensate pump
- Room Freeze Protection activates at 46°F (8°C)
- Wired and wireless remote controls included
- Compatible with inverter heat pump condenser CU-YM12CBUC
- R454B refrigerant
- Cold-climate heating operation down to -13°F (-25°C)
- Base pan heater included with the compatible outdoor condenser
- ENERGY STAR Cold Climate Certified system
Performance Specifications
- Cooling Capacity: 11,500 BTU/h (3,100–13,000 BTU/h)
- Cooling Capacity: 3.37 kW
- Heating Capacity: 12,000 BTU/h (3,700–15,600 BTU/h)
- Heating Capacity: 3.52 kW
- Moisture Removal: 2.1 pints/hour (0.99 L/h)
- Outdoor Airflow at Turbo: 400 CFM
- Static Pressure Range: 0–0.4 in. w.g.
- SEER2: 19.0
- EER2: 11.7
- HSPF2 Region 4: 10.2
- HSPF2 Region 5: 8.0
Electrical Specifications
- Power Supply: 208/230V, Single Phase, 60Hz
- Cooling Power Input: 983 W
- Heating Power Input: 1,028 W
Dimensions and Weight
- Indoor Unit Dimensions: 7-7/8" H x 27-9/16" W x 19-15/16" D
- Indoor Unit Dimensions: 200 x 700 x 506 mm
- Indoor Unit Weight: 39.5 lb (18 kg)
- Compatible Outdoor Unit: CU-YM12CBUC
- Outdoor Unit Dimensions: 21-7/8" H x 30-1/8" W x 11-7/8" D
- Outdoor Unit Dimensions: 555 x 765 x 303 mm
- Outdoor Unit Weight: 62 lb (28 kg)
Applications
The CS-YM12CD2UW is designed for concealed ducted HVAC installations where a compact indoor air handler is required. Its low-profile construction is suitable for tight ceiling spaces, apartments, retrofit applications, multi-family properties, and light commercial projects. Panasonic also supports single-zone and compatible multi-zone Project Series configurations.
Refrigerant and Climate Performance
- Refrigerant: R454B
- Cold Climate Heating Operation: Down to -13°F (-25°C)
- ENERGY STAR Cold Climate Certified
- Inverter Heat Pump System
Model Information
- Manufacturer: Panasonic
- Series: Project Series
- Product Type: Low-Profile Ducted Indoor Unit
- Model: CS-YM12CD2UW
- Nominal Class: 12,000 BTU
- Compatible Outdoor Condenser: CU-YM12CBUC
