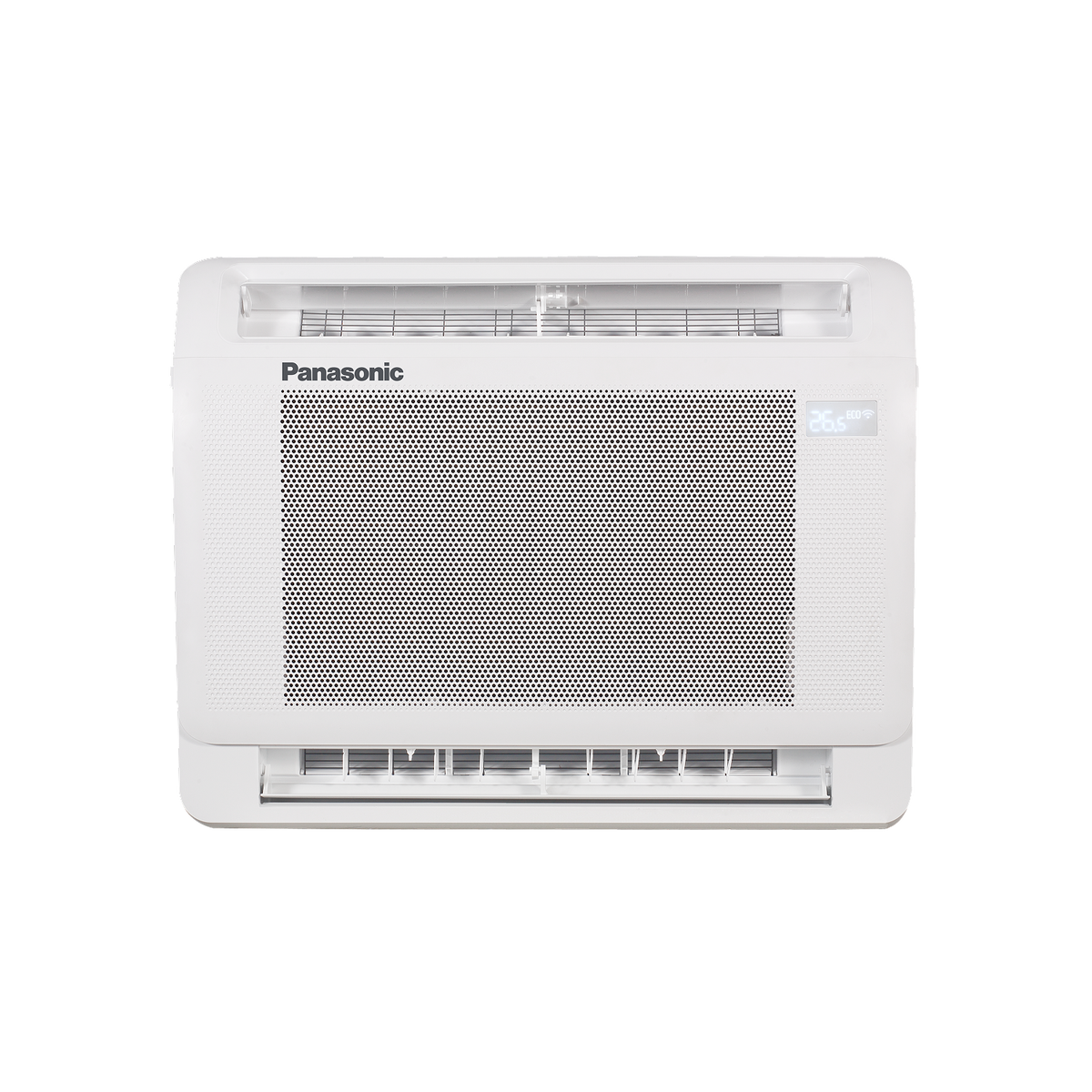

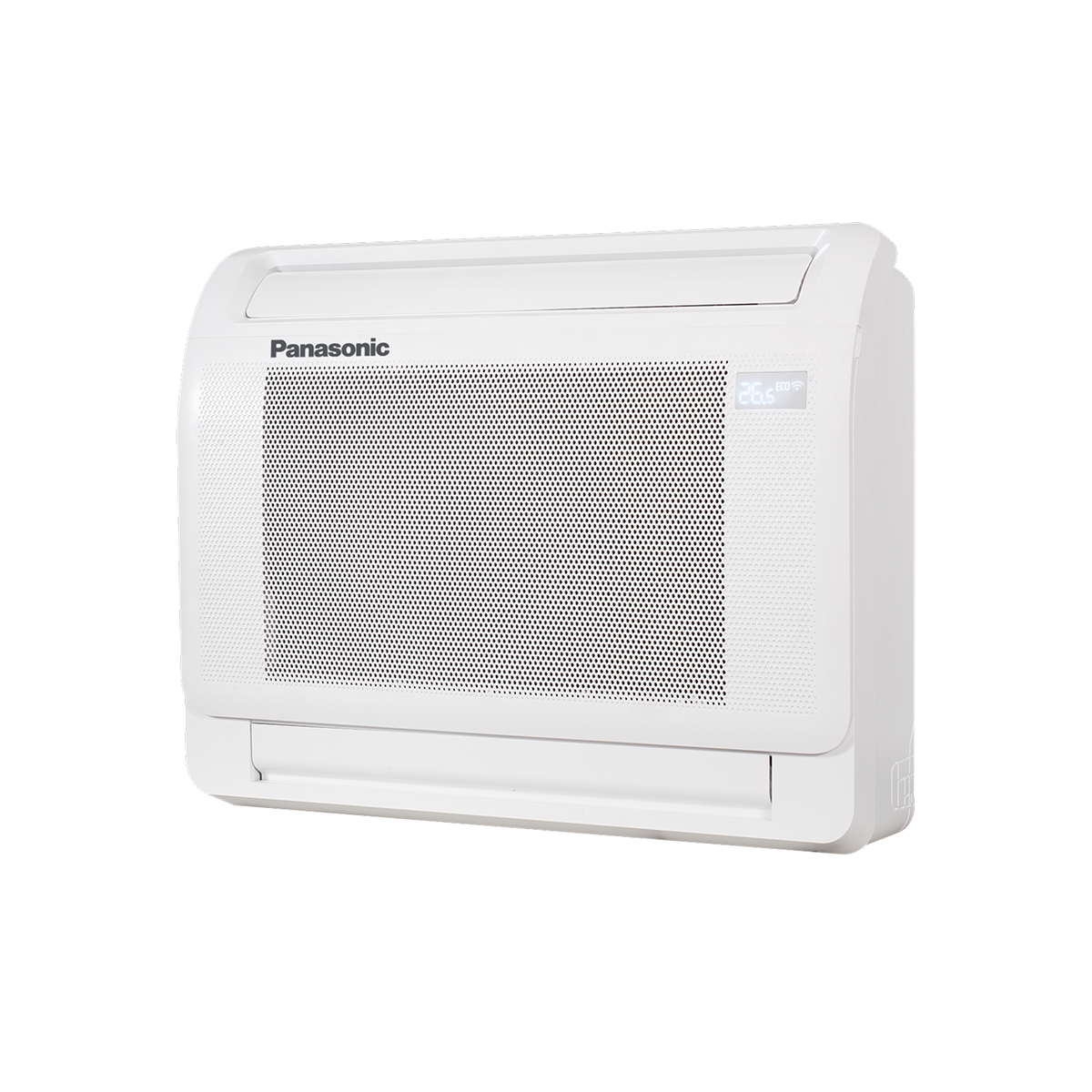

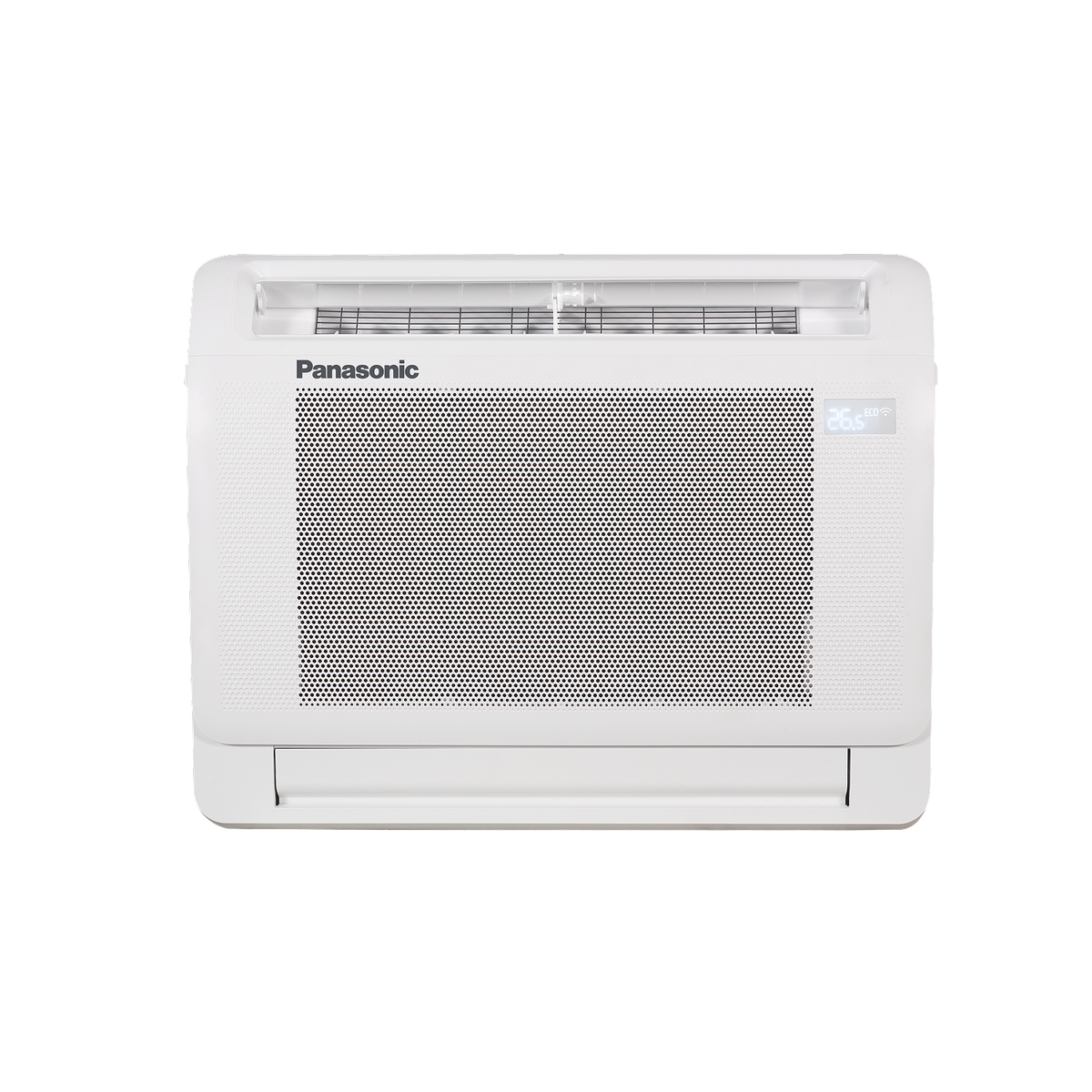

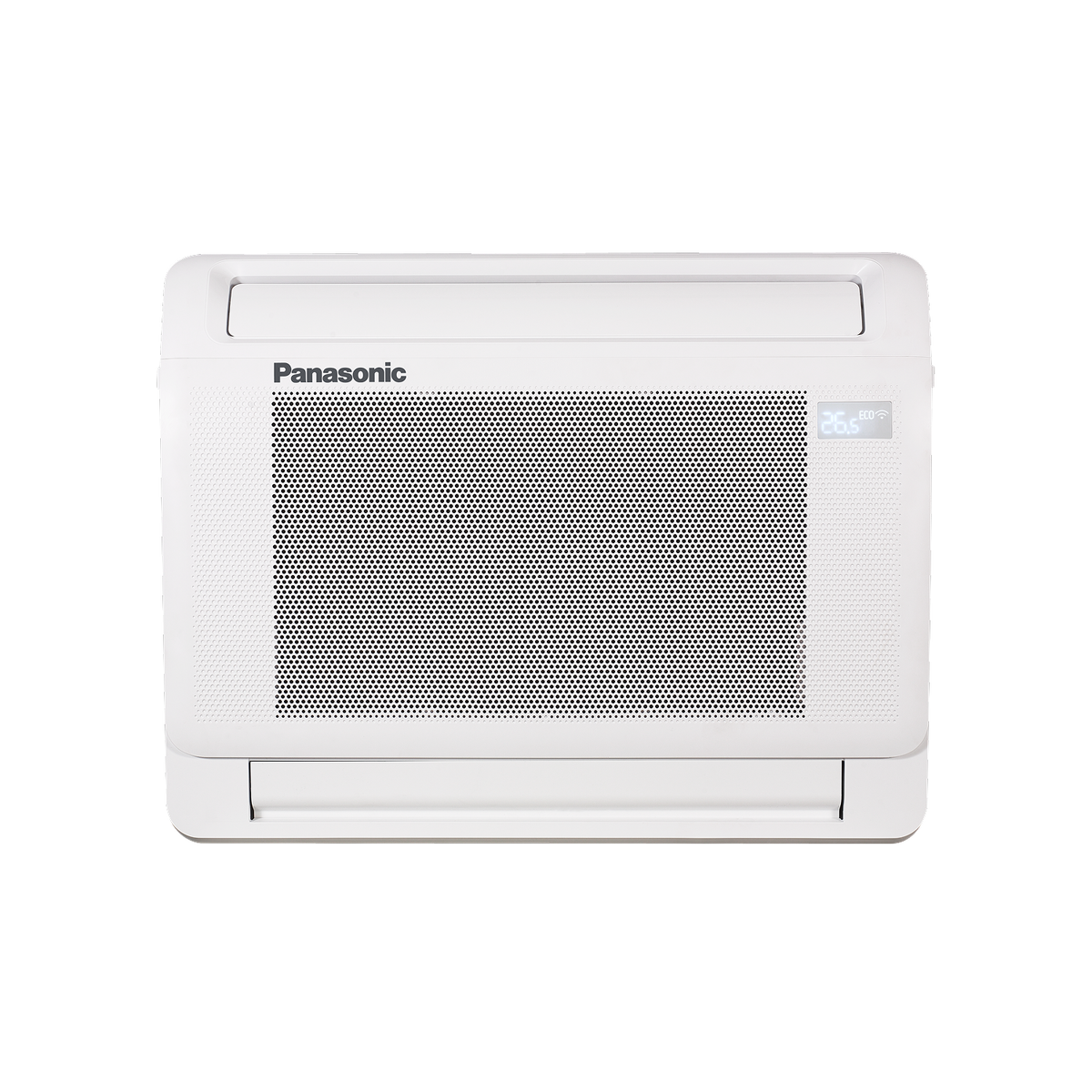

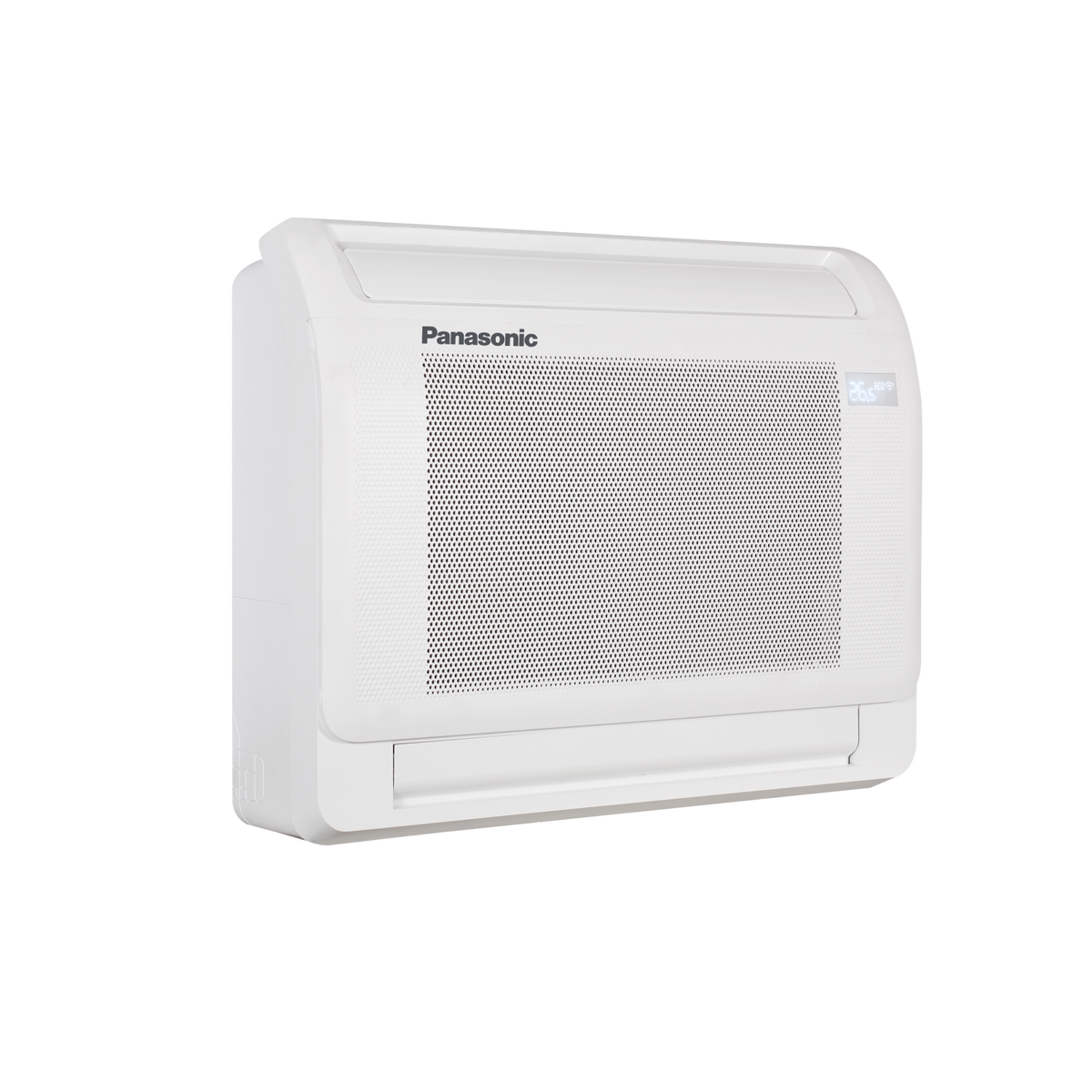

Panasonic CS-YM12CFUW Project Series 12,000 BTU Floor Console Indoor Unit

Product Description

The Panasonic CS-YM12CFUW is a 12,000 BTU Project Series Floor Console indoor unit designed for heating and cooling applications where wall or ceiling installation is limited. Its floor-level configuration makes it well suited for retrofit projects, sunrooms, under-window placement and basement applications. The unit can be used in single-zone or compatible multi-zone configurations and pairs with the Panasonic CU-YM12CBUC outdoor unit.

Key Features

• 12,000 BTU Capacity: Provides 12,000 BTU/h rated cooling capacity with a range of 4,000–13,100 BTU/h.
• Strong Heating Performance: Provides 12,000 BTU/h rated heating capacity with a range of 5,100–12,900 BTU/h.
• Floor Console Design: Designed for floor-level installation where conventional wall or ceiling installation is not practical.
• Flexible Installation: Ideal for retrofit projects, sunrooms, under-window placement and basement applications.
• 1%–100% Fan Speed: Provides adjustable fan-speed settings along with a Turbo mode for increased airflow.
• Self-Cleaning Evaporator: Helps maintain the indoor heat exchanger for continued system performance.
• Room Freeze Protection: Activates at 46°F (8°C) to help protect the space during low-temperature conditions.
• Wireless Remote Included: Provides convenient control of the indoor unit from across the room.
• Optional Wired Control: Supports the optional Panasonic CZ-RD40U wired controller.
• Inverter Heat Pump System: Designed to operate with the compatible Panasonic inverter heat pump condenser.
• Base Pan Heater: Included with the compatible outdoor unit for cold-climate operation.
• R454B Refrigerant: Uses R454B refrigerant for a lower-GWP HVAC system design.
• Cold Climate Heating: Designed for heating operation down to -13°F (-25°C).
• ENERGY STAR Cold Climate: The Project Series system is ENERGY STAR Cold Climate certified.

Specifications

• Brand: Panasonic
• Series: Project Series
• Model: CS-YM12CFUW
• Unit Type: Floor Console Indoor Unit
• Rated Cooling Capacity: 12,000 BTU/h (3.52 kW)
• Cooling Capacity Range: 4,000–13,100 BTU/h
• Rated Heating Capacity: 12,000 BTU/h (3.52 kW)
• Heating Capacity Range: 5,100–12,900 BTU/h
• Moisture Removal at High: 2.71 pints/h (1.28 L/h)
• Indoor Airflow: 441 CFM at Turbo
• SEER2: 24.6
• EER2: 12.7
• HSPF2 Region 4 / Region 5: 11.0 / 8.2
• COP: 3.90
• Power Supply: 208/230V, Single Phase, 60Hz
• Cooling Power Input: 960 W
• Heating Power Input: 897 W
• Refrigerant: R454B
• Indoor Dimensions (H x W x D): 24-7/16 x 31-1/4 x 7-7/8 in.
• Indoor Dimensions (H x W x D): 621 x 794 x 200 mm
• Indoor Unit Weight: 32.9 lb (14.9 kg)

Compatible Outdoor Unit

• Outdoor Unit: Panasonic CU-YM12CBUC
• Outdoor Dimensions (H x W x D): 21-7/8 x 30-1/8 x 11-7/8 in.
• Outdoor Dimensions (H x W x D): 555 x 765 x 303 mm
• Outdoor Unit Weight: 62.2 lb (28.2 kg)

Controls

• Standard Control: Wireless remote control included
• Optional Wired Controller: Panasonic CZ-RD40U

Applications

• Residential heating and cooling
• Retrofit projects
• Sunrooms
• Under-window installations
• Basements
• Multi-family housing
• Light commercial applications
• Spaces with limited wall or ceiling installation options
