Product Description

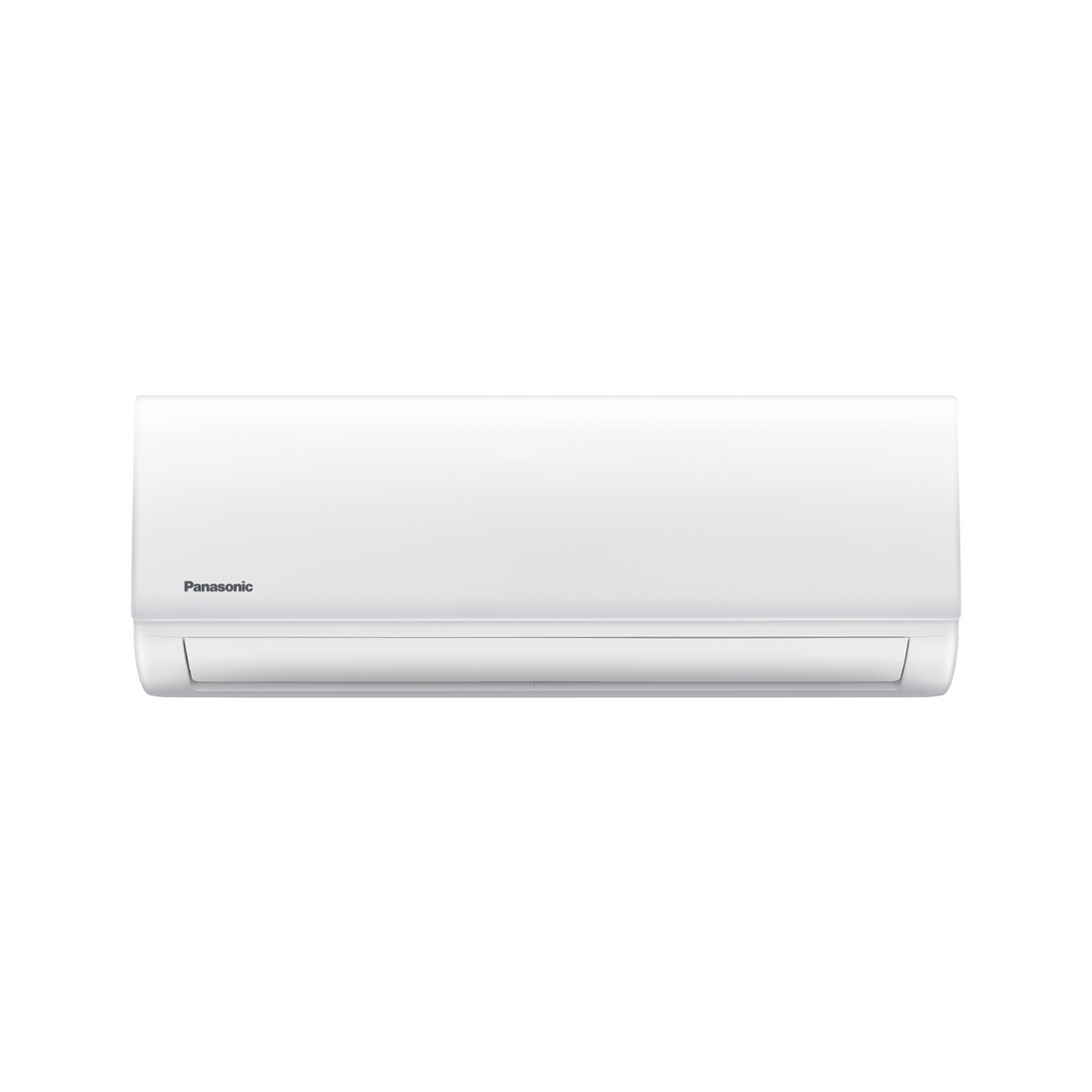

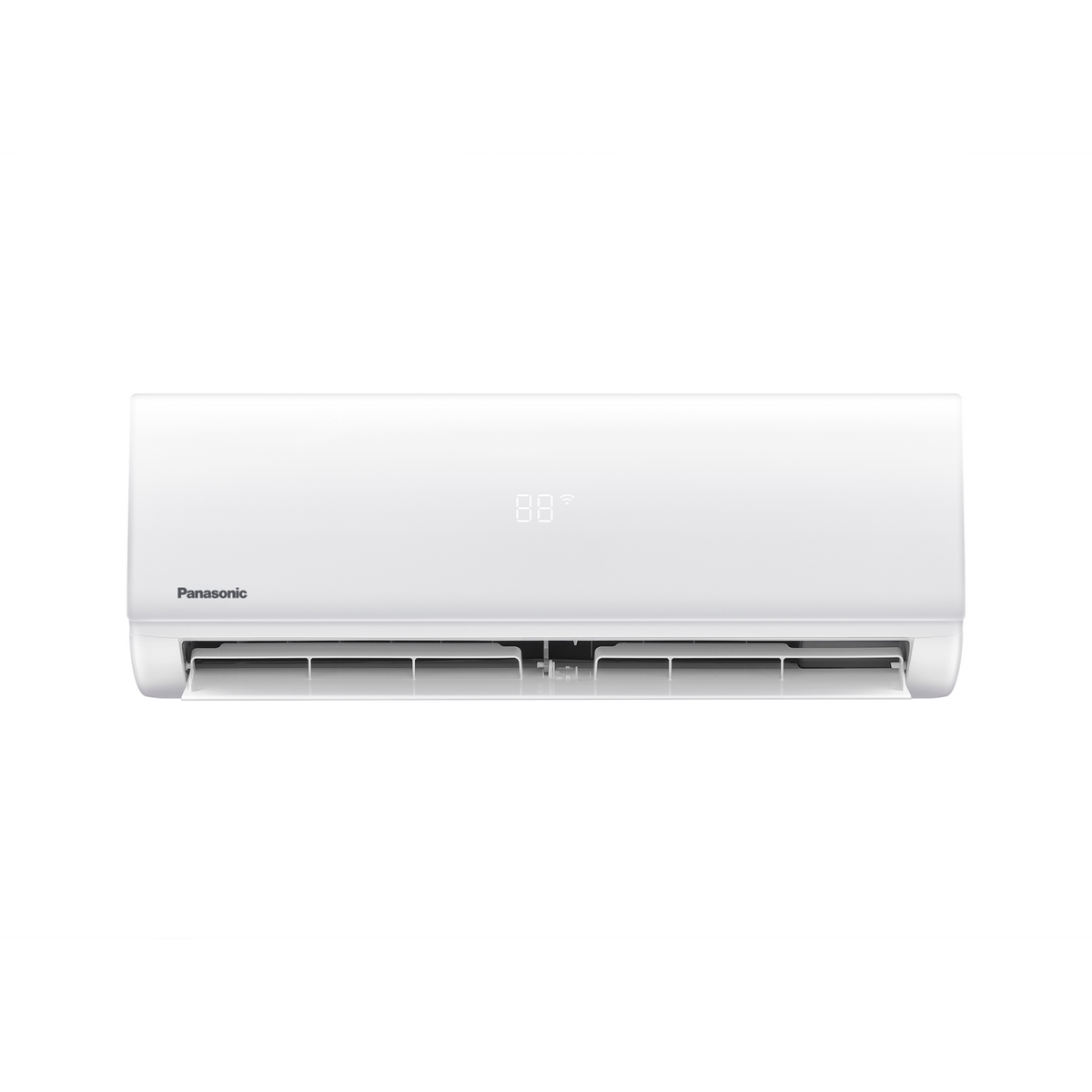

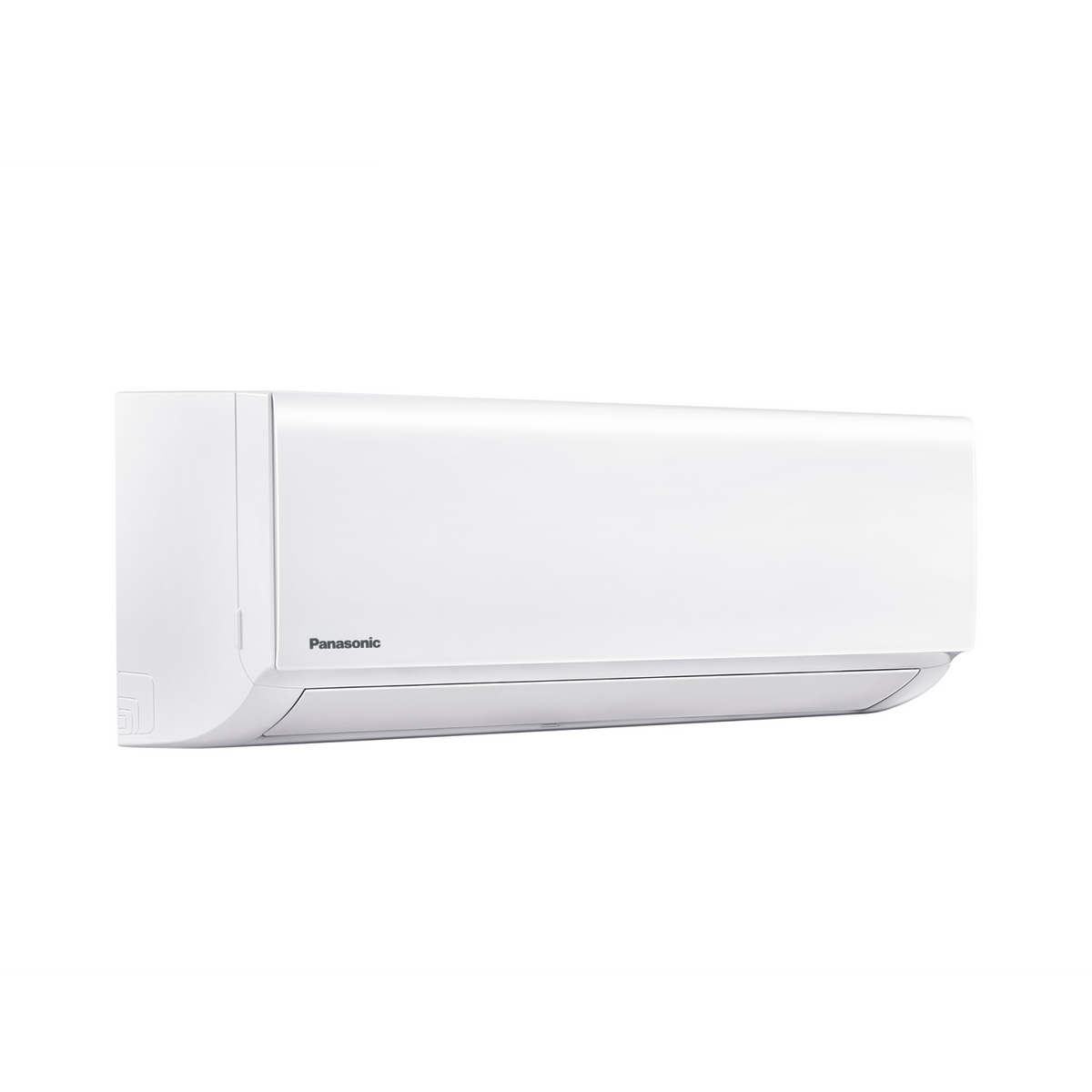

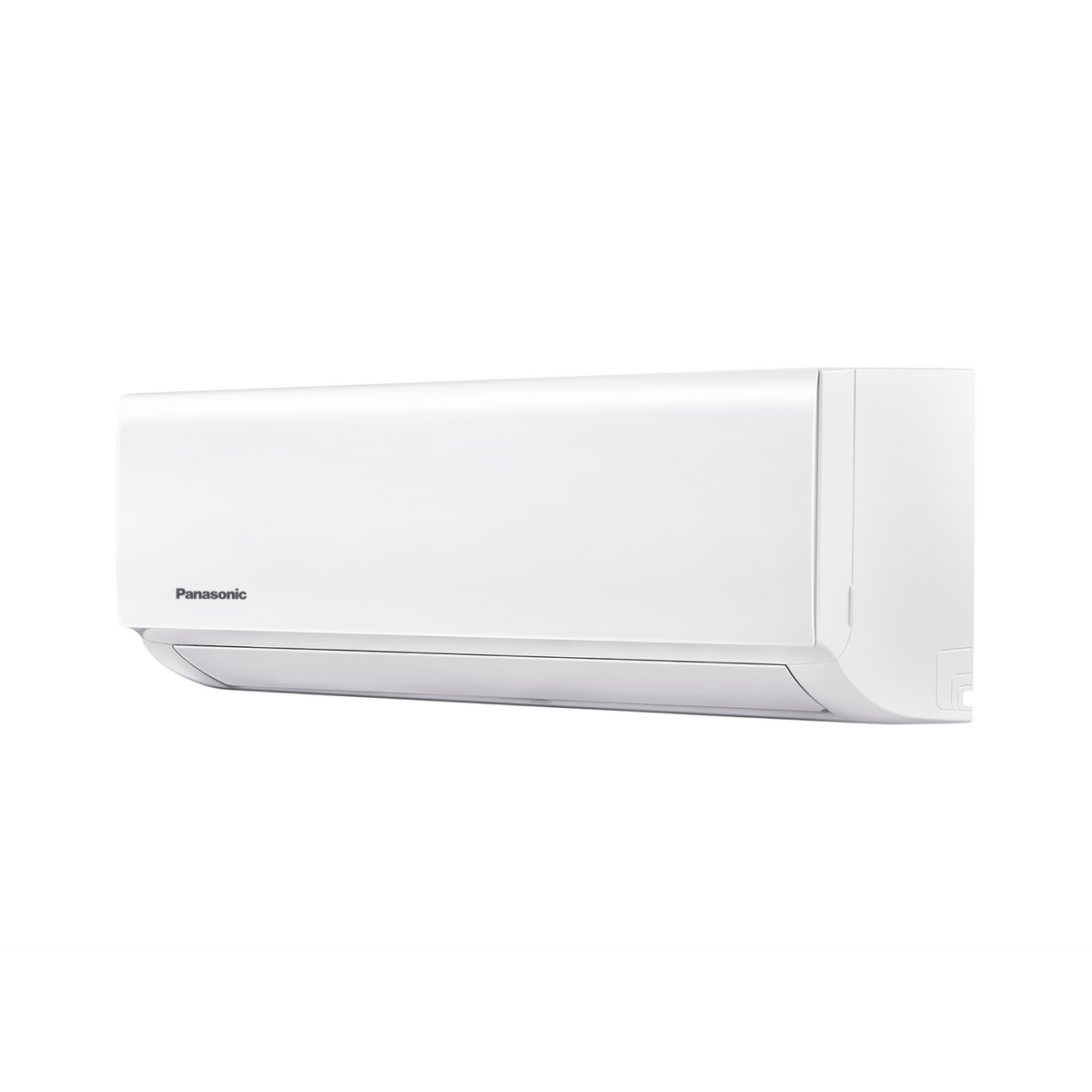

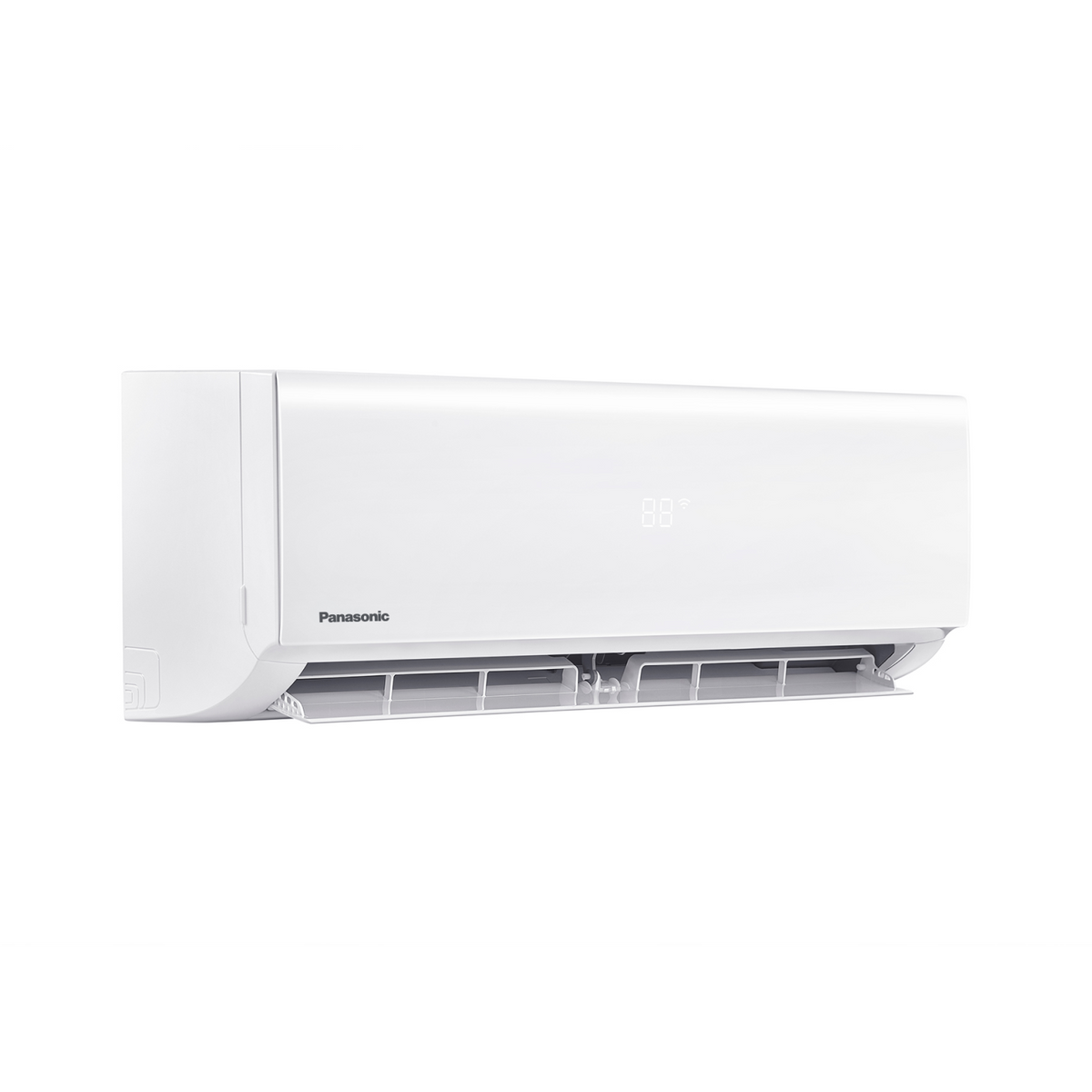

The Panasonic Project Series CS-YM12CKUW is a 12,000 BTU high-wall mini-split indoor unit designed for efficient heating and cooling in residential, multi-family, retrofit, and light commercial applications. It pairs with the CU-YM12CBUC outdoor inverter heat pump condenser and can be used in single-zone or compatible multi-zone configurations. The system uses R454B refrigerant and provides cold-climate heating operation down to -13°F (-25°C).
Key Features
- 12,000 BTU mini-split high-wall indoor unit
- Compatible outdoor unit: CU-YM12CBUC
- Suitable for residential, multi-family, retrofit, and light commercial applications
- Supports single-zone and compatible multi-zone configurations
- Inverter heat pump condenser system
- 1%–100% fan speed settings plus Turbo mode
- Self-cleaning evaporator
- Room Freeze Protection activates at 46°F (8°C)
- Wireless remote control included
- Optional wired control available with CZ-RD40U
- R454B refrigerant
- Cold-climate heating operation down to -13°F (-25°C)
- Base pan heater included
- ENERGY STAR Cold Climate certified
Performance Specifications
- Indoor Unit: CS-YM12CKUW
- Outdoor Unit: CU-YM12CBUC
- Cooling Capacity: 12,000 BTU/h
- Cooling Capacity Range: 2,600–13,700 BTU/h
- Cooling Capacity: 3.52 kW
- Heating Capacity: 12,000 BTU/h
- Heating Capacity Range: 4,100–14,400 BTU/h
- Heating Capacity: 3.52 kW
- Moisture Removal at High: 2.75 pints/h
- Moisture Removal: 1.3 L/h
- Outdoor Airflow at Turbo: 383 CFM
Efficiency Ratings
- SEER2: 23.1
- EER2: 12.2
- HSPF2 Region IV: 11.5
- HSPF2 Region V: 8.5
Electrical Specifications
- Power Supply: 208/230V
- Phase: Single Phase
- Frequency: 60Hz
- Cooling Power Input: 984 W
- Heating Power Input: 953 W
- Refrigerant: R454B
Indoor Unit Specifications
- Model: CS-YM12CKUW
- Unit Type: Mini-Split High Wall
- Capacity Class: 12,000 BTU
- Indoor Dimensions (H x W x D): 11-5/8 x 31-1/2 x 7-7/8 in
- Indoor Dimensions (H x W x D): 295 x 802 x 200 mm
- Indoor Unit Weight: 19 lb (8.6 kg)
- Fan Speed: 1%–100% variable speed plus Turbo
- Control: Wireless remote included
- Optional Wired Control: CZ-RD40U
Outdoor Unit Specifications
- Compatible Outdoor Unit: CU-YM12CBUC
- Outdoor Unit Dimensions (H x W x D): 21-7/8 x 30-1/8 x 11-7/8 in
- Outdoor Unit Dimensions (H x W x D): 555 x 765 x 303 mm
- Outdoor Unit Weight: 62 lb (28 kg)
- Outdoor Airflow at Turbo: 383 CFM
Operating Features
- Self-Cleaning Evaporator
- Room Freeze Protection: Activates at 46°F (8°C)
- Turbo Operation
- Variable Fan Speed: 1%–100%
- Base Pan Heater
- Cold Climate Heating: Down to -13°F (-25°C)
Refrigerant & System
- Refrigerant Type: R454B
- System Type: Inverter Heat Pump
- Indoor Unit: CS-YM12CKUW
- Outdoor Unit: CU-YM12CBUC
- Installation Type: High Wall
- System Configuration: Single-Zone or Compatible Multi-Zone
Applications
- Residential heating and cooling
- Single-family homes
- Multi-family housing
- Retrofit projects
- Light commercial applications
- Single-zone installations
- Compatible multi-zone installations
