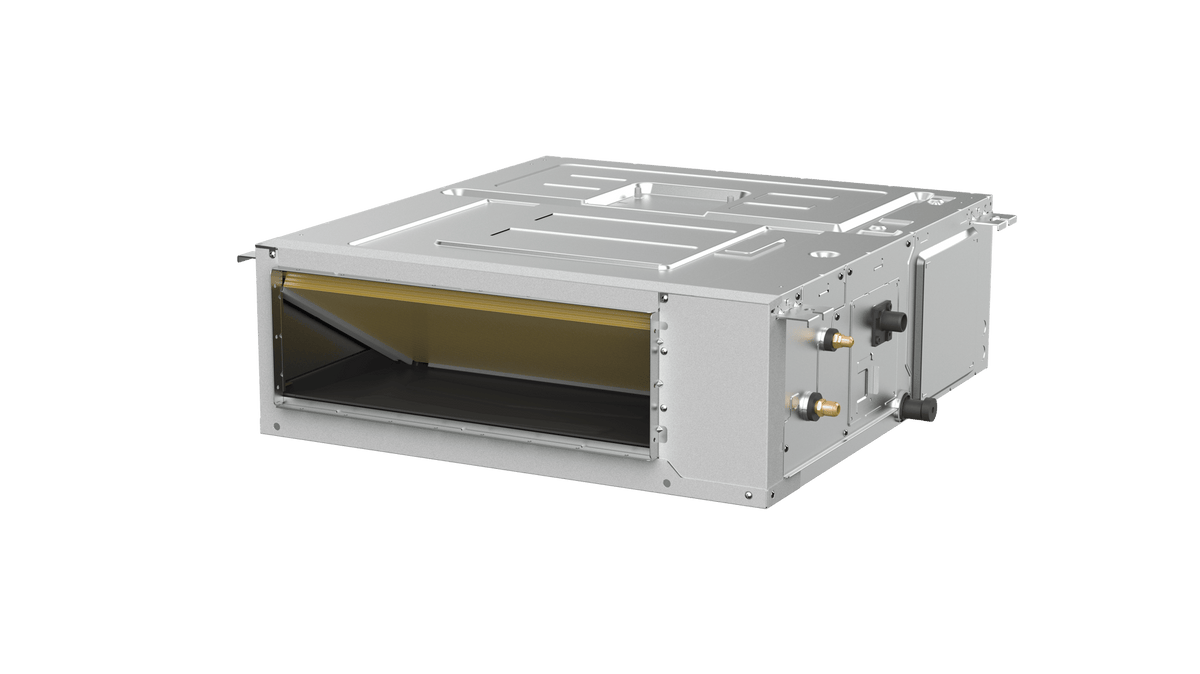

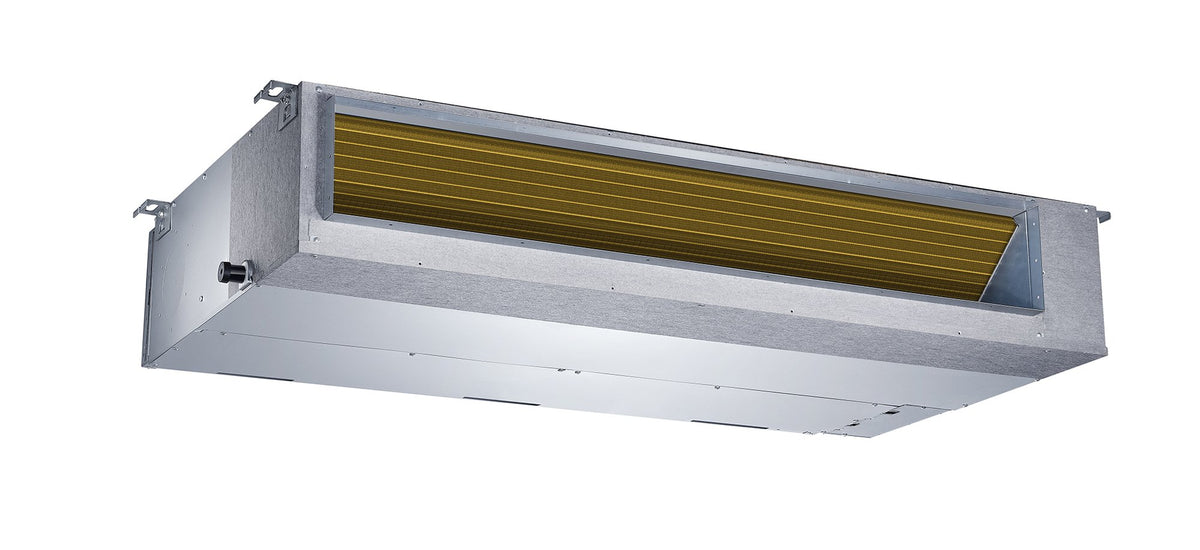

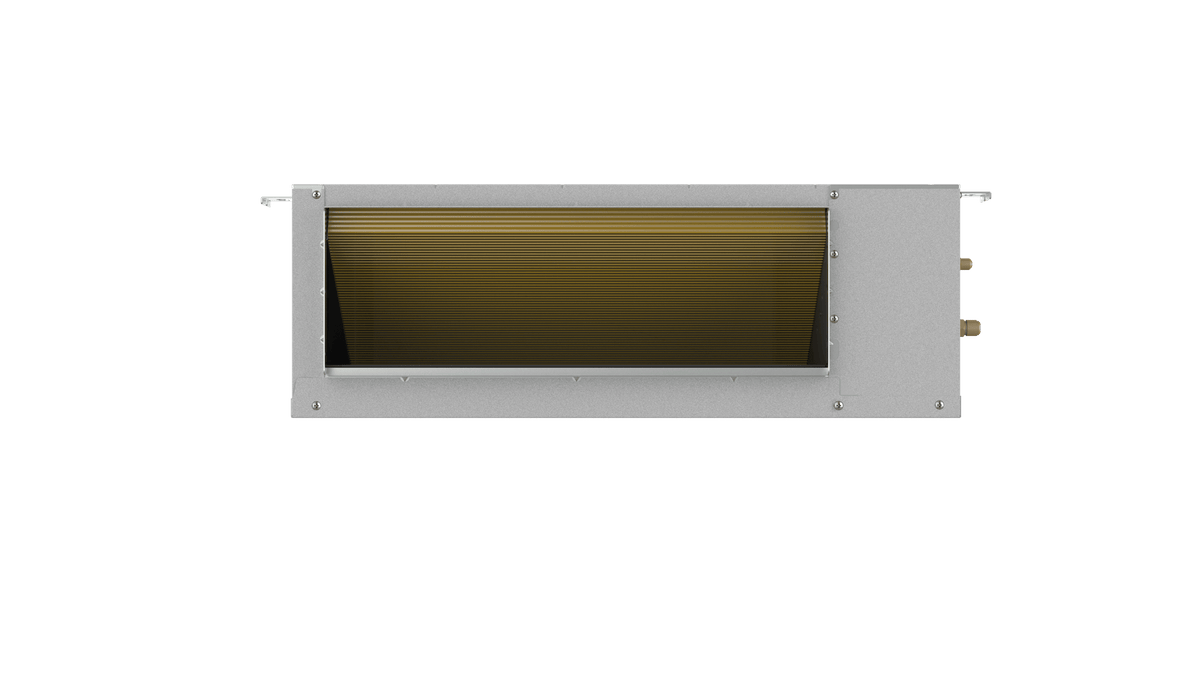

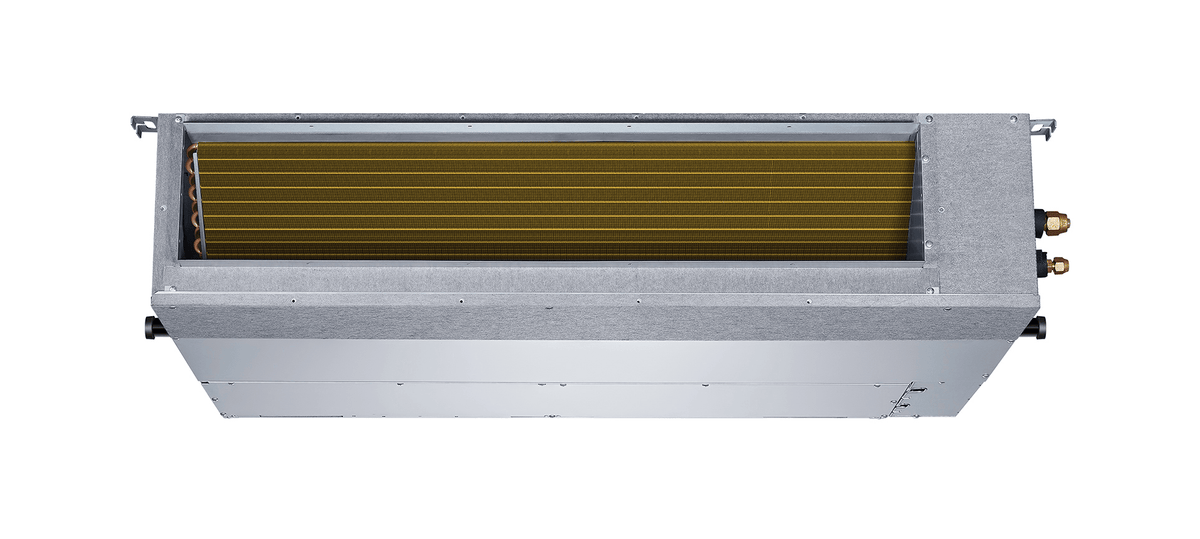

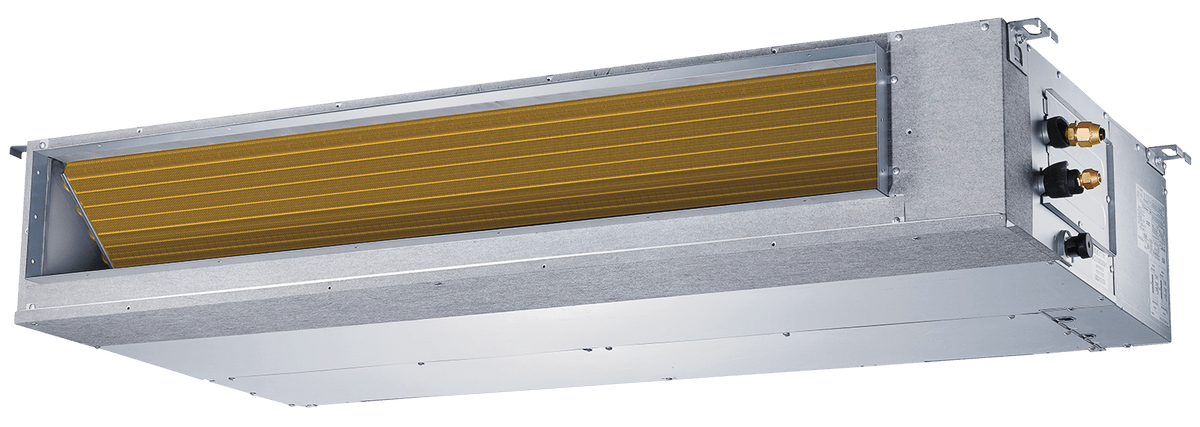

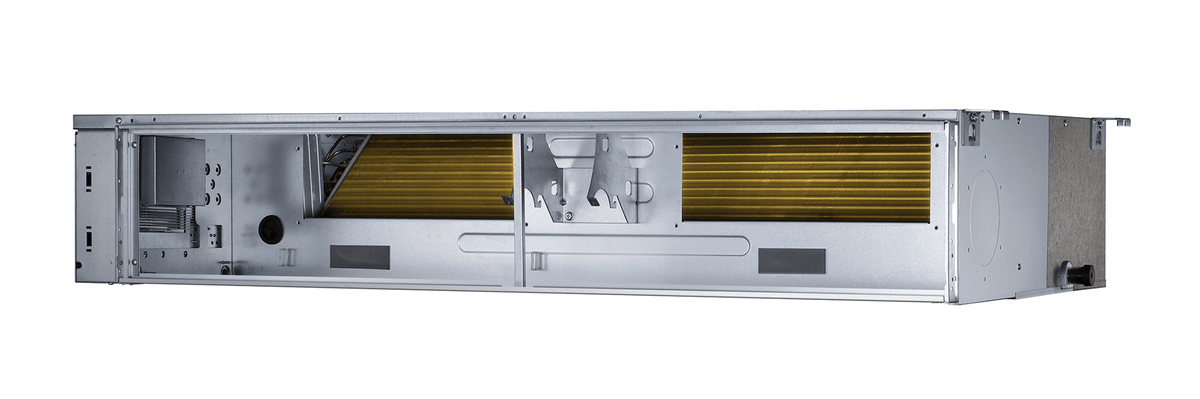

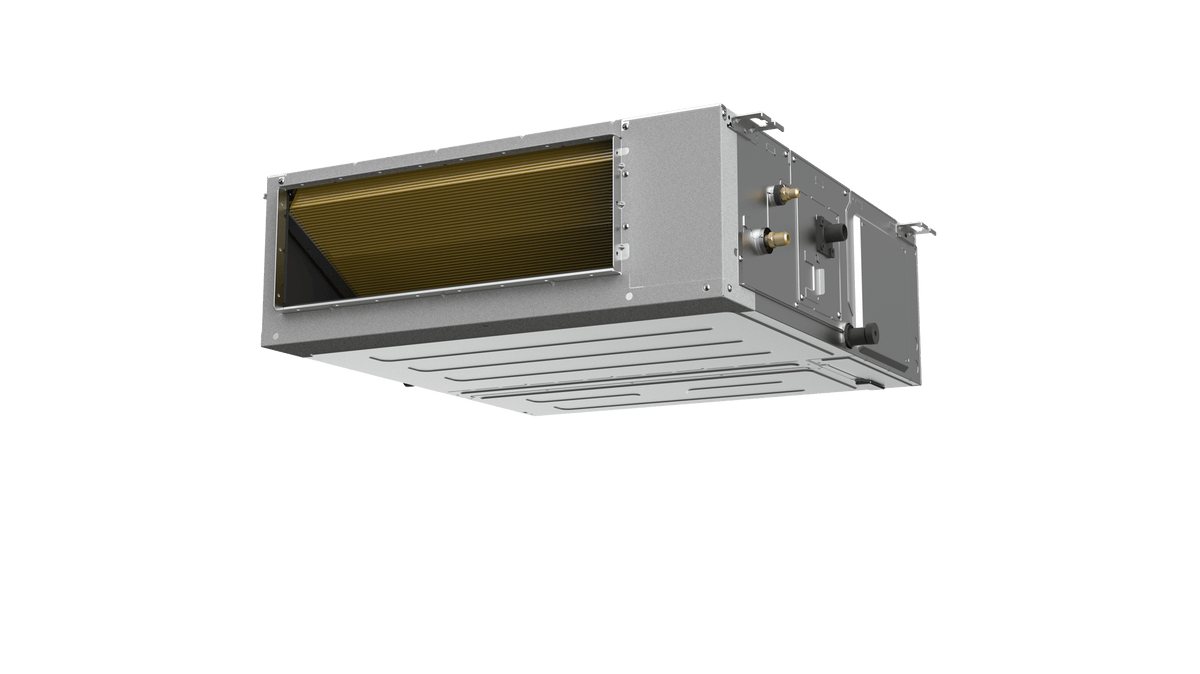

Panasonic CS-YM24CD1UW Project Series 24,000 BTU Low-Profile Ducted Indoor Unit

Product Description

The Panasonic CS-YM24CD1UW is a 24,000 BTU Project Series Low-Profile Ducted indoor unit designed for concealed installation in residential, retrofit, multi-family and light commercial applications. Its compact design is well suited for tight ceiling spaces while supporting horizontal and vertical installation. The unit is paired with the Panasonic CU-YM24CBUC inverter heat pump condenser and uses R454B refrigerant for efficient, cold-climate heating and cooling.

Key Features

• 24,000 BTU Capacity: Provides 24,000 BTU/h cooling capacity with a range of 8,500–28,300 BTU/h.
• Heating Performance: Delivers 25,000 BTU/h rated heating capacity with a range of 11,800–35,100 BTU/h.
• Low-Profile Concealed Design: Designed for applications requiring a compact air handler that can be installed out of sight in ceiling spaces.
• Horizontal & Vertical Installation: Flexible installation options make the unit suitable for a variety of project configurations.
• Built-In Condensate Pump: Integrated condensate management simplifies installation where gravity drainage is not practical.
• Room Freeze Protection: Activates at 46°F (8°C) to help protect the space during low-temperature conditions.
• Cold Climate Heating: Designed for heating operation down to -13°F (-25°C).
• R454B Refrigerant: Uses R454B refrigerant and is designed for modern low-GWP HVAC applications.
• Remote Controls Included: Supports wired and wireless remote control operation.
• Inverter Heat Pump System: Designed to operate with the compatible Panasonic inverter heat pump condenser.
• Base Pan Heater: The compatible outdoor system includes a base pan heater for cold-climate operation.
• ENERGY STAR Cold Climate: The Project Series system is ENERGY STAR Cold Climate certified.

Specifications

• Brand: Panasonic
• Series: Project Series
• Model: CS-YM24CD1UW
• Unit Type: Low-Profile Ducted Indoor Unit
• Rated Cooling Capacity: 24,000 BTU/h (7.03 kW)
• Cooling Capacity Range: 8,500–28,300 BTU/h
• Rated Heating Capacity: 25,000 BTU/h (7.33 kW)
• Heating Capacity Range: 11,800–35,100 BTU/h
• Moisture Removal: 4.52 pints/h (2.14 L/h)
• Outdoor Airflow: 853 CFM at Turbo
• Static Pressure: 0–0.8 in. w.g.
• SEER2: 19.0
• EER2: 12.5
• HSPF2 Region 4 / Region 5: 11.0 / 8.5
• Power Supply: 208/230V, Single Phase, 60Hz
• Cooling Power Input: 1,920 W
• Heating Power Input: 2,010 W
• Refrigerant: R454B
• Installation: Horizontal or Vertical
• Indoor Dimensions (H x W x D): 9-5/8 x 39-3/8 x 29-1/2 in.
• Indoor Dimensions (H x W x D): 245 x 1,000 x 750 mm
• Indoor Unit Weight: 80.5 lb (36.5 kg)

Compatible Outdoor Unit

• Outdoor Unit: Panasonic CU-YM24CBUC
• Outdoor Dimensions: 31-7/8 x 37-1/4 x 16-1/8 in. (810 x 946 x 410 mm)
• Outdoor Unit Weight: 122.13 lb (55.4 kg)

Applications

• Residential HVAC systems
• Retrofit projects
• Multi-family housing
• Light commercial applications
• Apartments and concealed ceiling installations
• Projects requiring a compact low-profile ducted air handler
