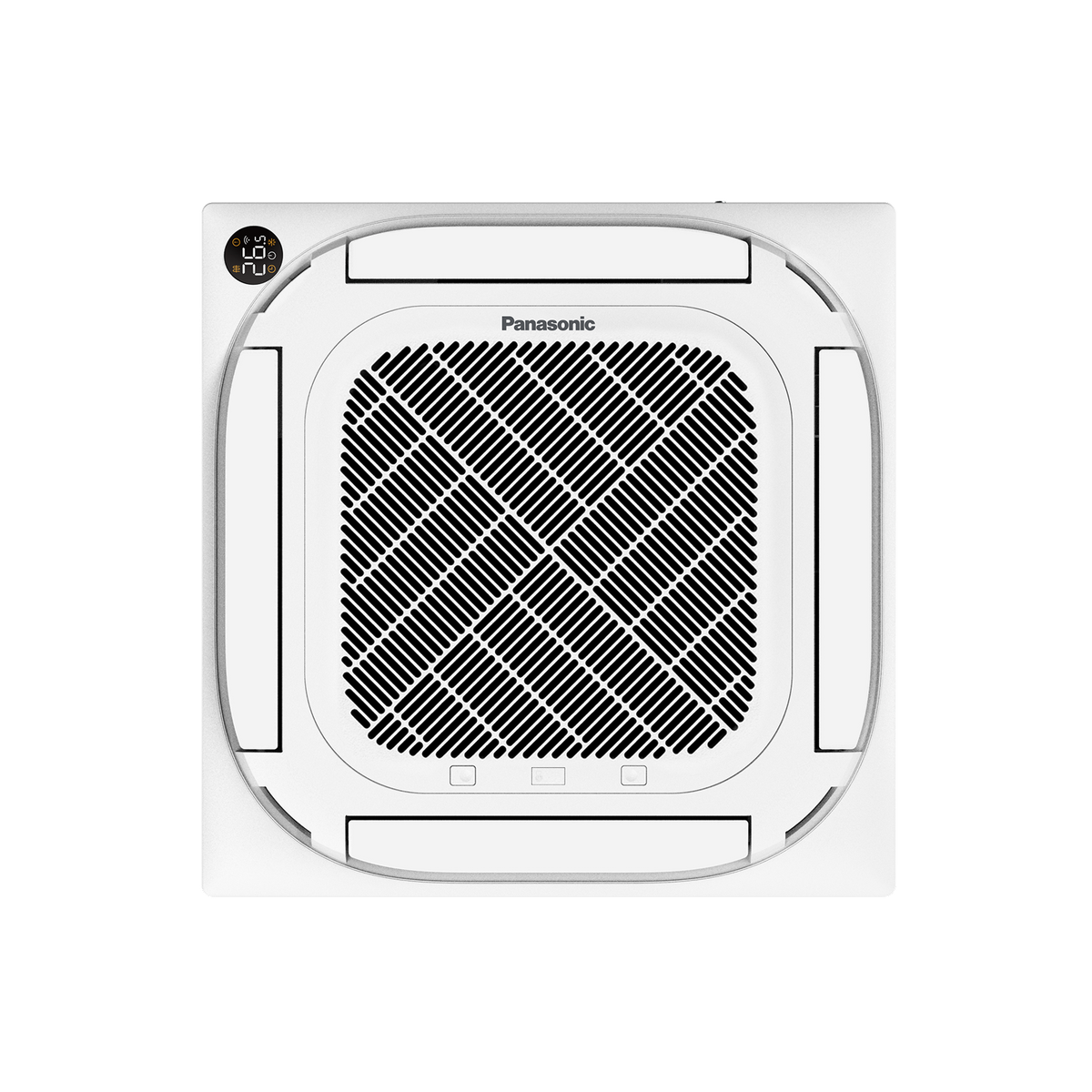

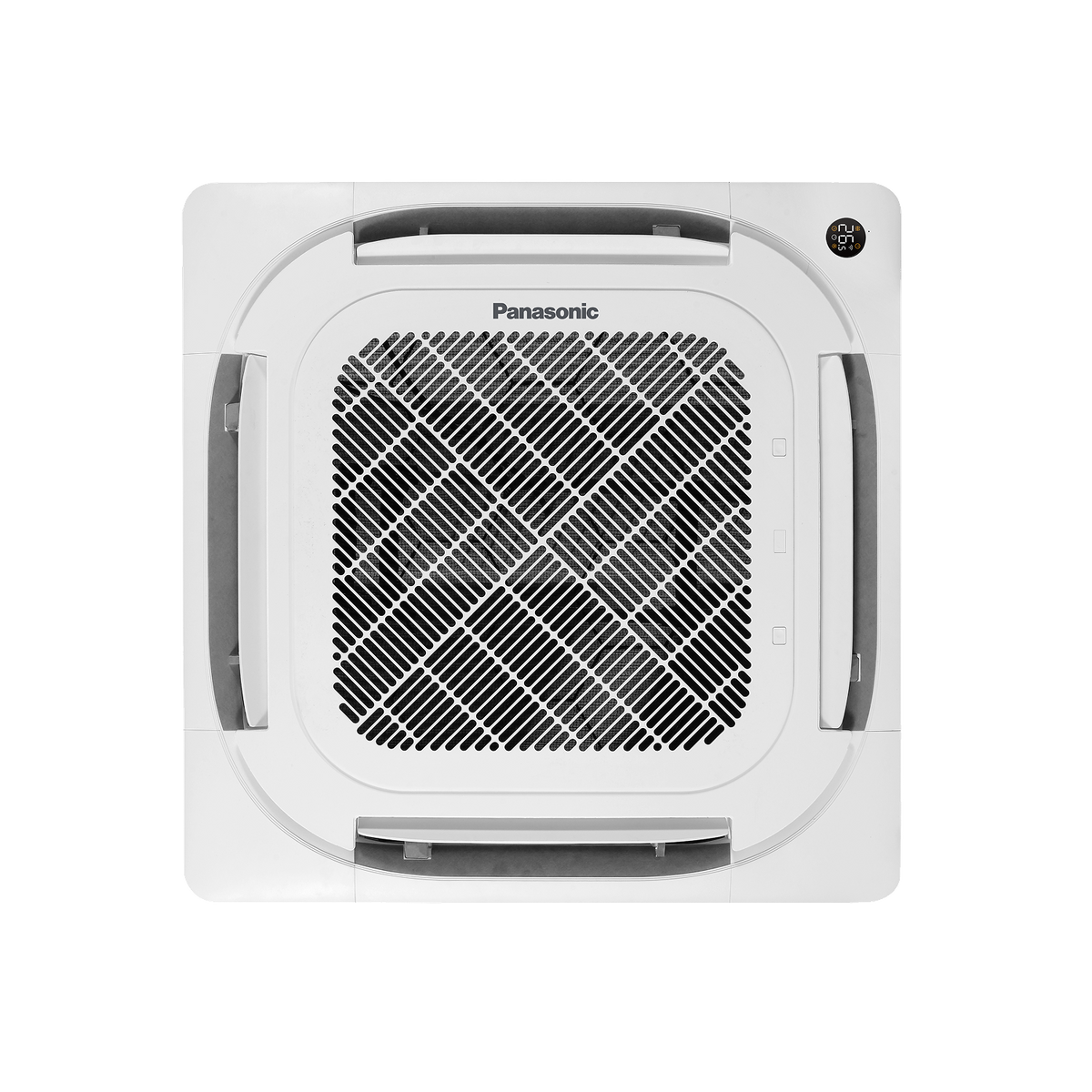

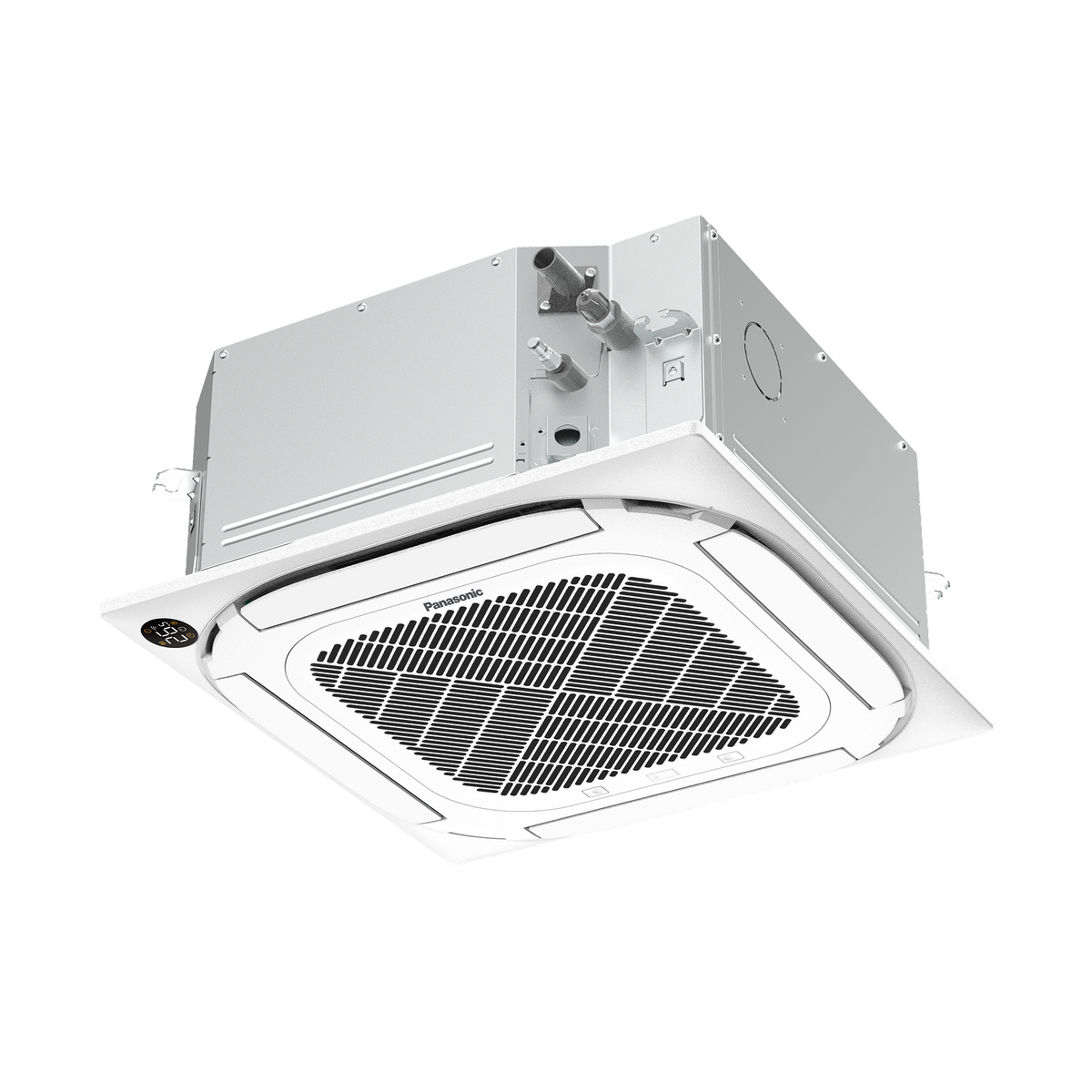

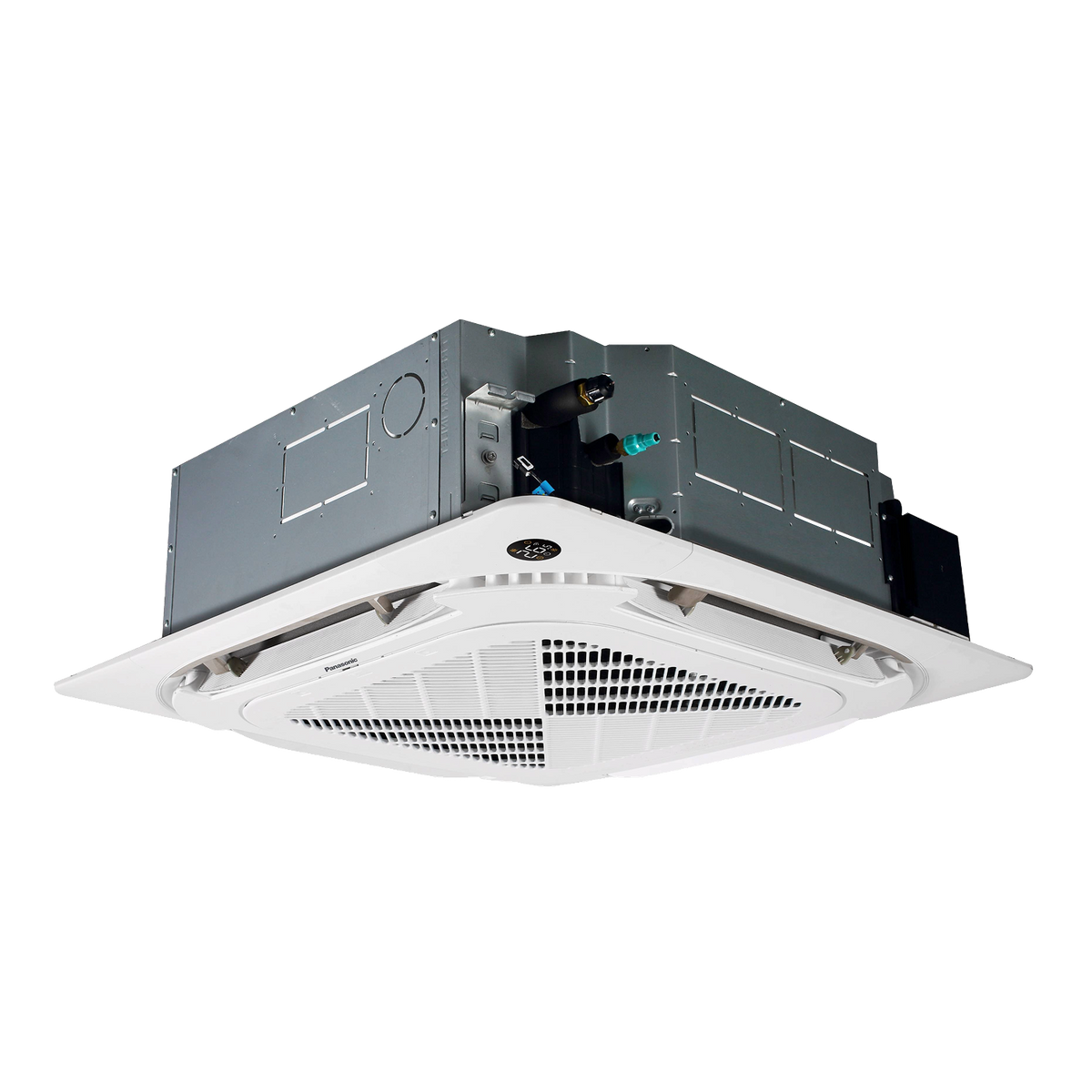

Panasonic CS-YM24CL4UW Project Series 24,000 BTU 4-Way Cassette Indoor Unit

Product Description

The Panasonic CS-YM24CL4UW is a 24,000 BTU Project Series 4-Way Cassette indoor unit designed to provide balanced air distribution for open spaces. It is suitable for retrofit, multi-family and light commercial applications such as offices, retail spaces, restaurants, lobbies and other areas requiring efficient heating and cooling. The unit features a built-in condensate pump, self-cleaning evaporator, room freeze protection and support for both wired and wireless remote controls.

Key Features

• 24,000 BTU Capacity: Provides 24,000 BTU/h rated cooling capacity with a range of 12,300–26,800 BTU/h.
• Heating Capacity: Delivers 25,000 BTU/h rated heating capacity with a range of 11,600–33,100 BTU/h.
• 4-Way Air Distribution: Designed to provide balanced airflow in multiple directions for open-space applications.
• Built-In Condensate Pump: Integrated condensate management simplifies installation and drainage.
• Self-Cleaning Evaporator: Helps maintain the indoor heat exchanger for continued system operation.
• Room Freeze Protection: Activates at 46°F (8°C) to help protect the space during low-temperature conditions.
• Wired & Wireless Controls: Wired and wireless remote control operation is supported, with remote controls included.
• Inverter Heat Pump System: Designed to operate with the compatible Panasonic CU-YM24CBUC inverter heat pump condenser.
• Cold Climate Heating: Supports heating operation down to -13°F (-25°C).
• R454B Refrigerant: Uses R454B refrigerant for modern low-GWP HVAC applications.
• ENERGY STAR Cold Climate: The Project Series system is ENERGY STAR Cold Climate certified.
• Light Commercial Applications: Suitable for offices, retail spaces, restaurants, lobbies and other open areas.

Specifications

• Brand: Panasonic
• Series: Project Series
• Model: CS-YM24CL4UW
• Unit Type: 4-Way Cassette Indoor Unit
• Rated Cooling Capacity: 24,000 BTU/h (7.03 kW)
• Cooling Capacity Range: 12,300–26,800 BTU/h
• Rated Heating Capacity: 25,000 BTU/h (7.33 kW)
• Heating Capacity Range: 11,600–33,100 BTU/h
• Moisture Removal: 5.41 pints/h (2.56 L/h)
• Outdoor Airflow: 765 CFM
• SEER2: 22.0
• EER2: 12.0
• HSPF2 Region 4 / Region 5: 10.5 / 8.1
• Power Supply: 208/230V, Single Phase, 60Hz
• Cooling Power Input: 2,000 W
• Heating Power Input: 2,268 W
• Refrigerant: R454B
• Indoor Dimensions (H x W x D): 8-1/16 x 32-11/16 x 32-11/16 in.
• Indoor Dimensions (H x W x D): 205 x 830 x 830 mm
• Indoor Unit Weight: 47.2 lb (21.4 kg)

Compatible Outdoor Unit

• Outdoor Unit: Panasonic CU-YM24CBUC
• Outdoor Dimensions: 31-7/8 x 37-1/4 x 16-1/8 in. (810 x 946 x 410 mm)
• Outdoor Unit Weight: 122.13 lb (55.4 kg)

Grille

• Compatible Grille: Panasonic CZ-BTL40U
• Grille Status: Sold separately

Applications

• Offices and commercial workspaces
• Retail spaces
• Restaurants
• Lobbies and common areas
• Multi-family housing
• Retrofit HVAC projects
• Light commercial applications
• Open spaces requiring balanced four-way airflow
